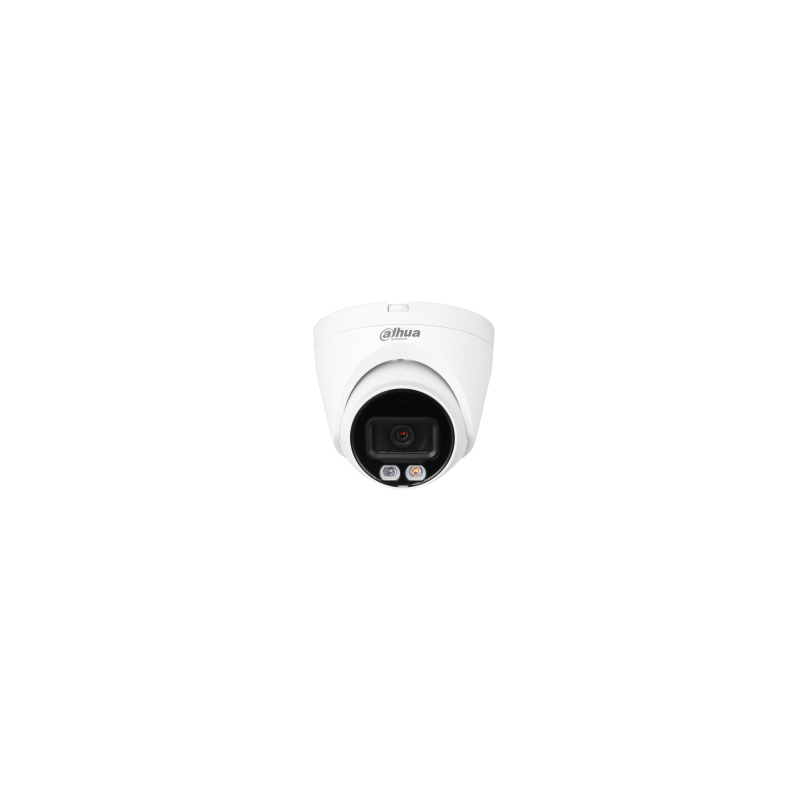

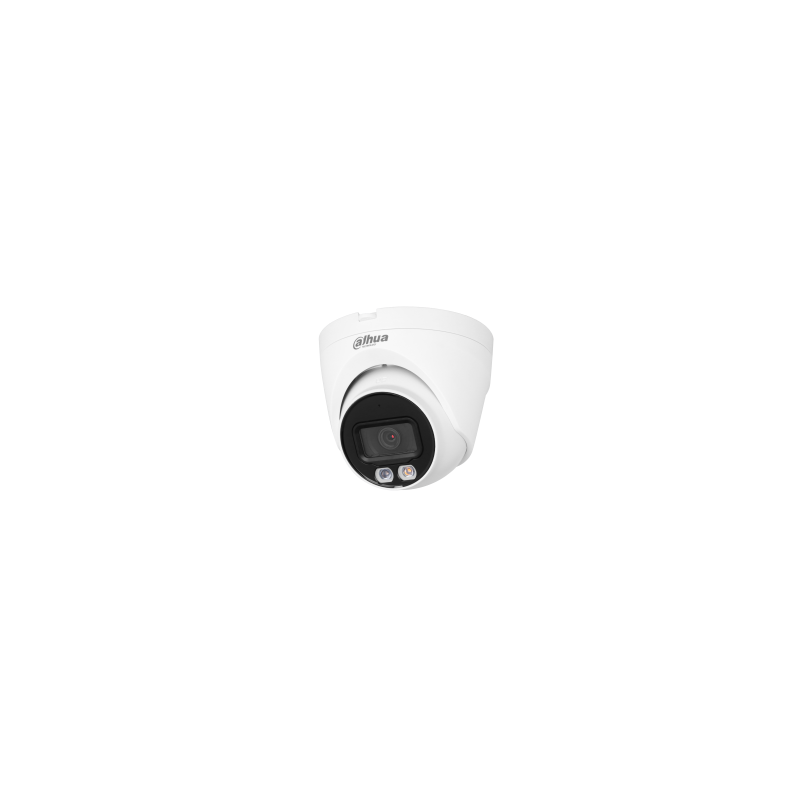

DH-IPC-HDW1439V-A-IL 4MP Entry Smart Dual Light Fixed-focal Camera

Dahua IP cameras and NVRs

Product reference: CAHDW1439V-A-IL

4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2560 × 1440)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
Built in Mic.
12 VDC/PoE power supply,easy for installation.
IP67 protection.
Supports human detection.

At stores prices may vary

Price:

€94.38

€125.84 (- 25%)

€78.00 tax excl.

Favourite

We have +10 pcs
Delivery in 1 business days

Product information

DH-IPC-HDW1439V-A-IL 4MP Entry Smart Dual Light Fixed-focal Eyeball Network Camera.

With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.

Specifications

Function
Image Setting																		Brightness; Contrast; Sharpness; Saturation; Gamma
OSD Overlay																		Time; channel; location
Record Mode																		Manual record; video detection record; schedule record Record priority: Manual>video detection>schedule
Default																		Support one-click restore
User Management																		Up to 20
Security																		User name and password; MAC address; HTTPS; network access control
Low Illuminance Level																		Starlight
Intelligence
Human Detection																		Support the classification and accurate detection of human
Smart Search																		Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression																		H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec																		Smart H.265+; Smart H.264+
Video Frame Rate																		Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability																		2 streams
Resolution																		4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240）
Bit Rate Control																		CBR/VBR
Video Bit Rate																		H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps
Day/Night																		Auto(ICR)/Color/B/W
BLC																		Yes
HLC																		Yes
WDR																		120 dB
White Balance																		Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control																		Manual;Auto
Noise Reduction																		3D NR
Motion Detection																		OFF/ON (4 areas, rectangular)
Default Bit Rate with Default Resolution																		3072 kbps (2560 × 1440)
Region of Interest (RoI)																		Yes (4 areas)
Smart Illumination																		Yes
Image Rotation																		0°/180°
Mirror																		Yes
Privacy Masking																		4 areas
Language																		English; Spanish; Russian
Alarm
Alarm Event																		Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Network
Network Port																		RJ-45 (10/100 Base-T)
SDK and API																		Yes
Network Protocol																		IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability																		ONVIF (Profile S & Profile T); CGI
User/Host																		6 (Total bandwidth: 24 M)
Storage																		FTP
Browser																		IE; Chrome; Firefox
Management Software																		Smart PSS Lite; DSS; DMSS
Mobile Client																		iOS;Android
Cyber Security																		Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade
Environment
Operating Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity																		≤95%
Storage Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity																		≤95%
Protection																		IP67
Lens
Lens Type																		Fixed-focal
Lens Mount																		M12
Focal Length																		2.8 mm
Max. Aperture																		F1.6
Field of View																		H: 94°; V: 52°; D: 111°
Iris Control																		Fixed
Close Focus Distance																		1.1 m (3.61 ft)
DORI Distance																		D: 64.0 m; O: 25.6 m; R: 12.8 m; I: 6.4 m (D: 209.97 ft; O: 83.99 ft; R: 41.99 ft; I: 21.00 ft)
Camera
Appearance																		Eyeball
Image Sensor																		1/2.9" CMOS
Pixel																		4 MP
Max. Resolution																		2560 (H) × 1440 (V)
ROM																		128 MB
RAM																		128 MB
Scanning System																		Progressive
Electronic Shutter Speed																		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination																		0.006 lux@F1.6 (Color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio																		＞56 dB
Illumination Distance																		Up to 30 m (98.43 ft) (IR LED); up to 20 m (65.62 ft) (Warm light)
Illuminator On/Off Control																		Auto;Manual
Illuminator Number																		1 (IR LED); 1 (Warm light)
Angle Adjustment																		Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Audio
Built-in MIC																		Yes, built-in Mic
Audio Compression																		G.711a; G.711Mu; PCM; G.726
Audio Sampling																		8 kHz; 16 kHz
Structure
Casing Material																		Inner core: Metal+plastic Cover: Plastic
Product Dimensions																		100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
Packaging Dimensions																		122 mm × 119 mm × 111 mm (4.80" × 4.69" × 4.37") (L × W × H)
Net Weight																		0.33 kg (0.73 lb)
Gross Weight																		0.45 kg (0.99 lb)
Installation																		Ceiling mount; wall mount; vertical pole mount
Power Adapter																		Optional
Lens																		Included
Certification
Certifications																		CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Operating Voltage																		12 VDC (±30%); PoE (802.3af)
Power Supply																		12 VDC/PoE (802.3af)
Power Consumption																		Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.6 W (12 VDC); 5.7 W (PoE)

Features

Lens	2.8
Color	White
Resolution	4MP
Camera type	Dome
Product class	LITE
IR distance	≤ 30 m
Features	Dual Illumination
Features	Build-in Mic
