HAC-HDW1500TRQ-S2 5MP Starlight HDCVI Quick-to-install IR Camera

HD-CVI Cameras

Product reference: CAHDW1500TRQ-28-S2

In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max 25 fps@5MP (16:9 video output)
Quick-to-install eyeball saves installation time
CVI/CVBS/AHD/TVI switchable
2.8 mm fixed lens
Max. IR length 25 m, Smart IR
IP50, DC12V

At stores prices may vary

Price:

€54.45

€45.00 tax excl.

Favourite

We have 5 pcs
Delivery in 1 business days

Product information

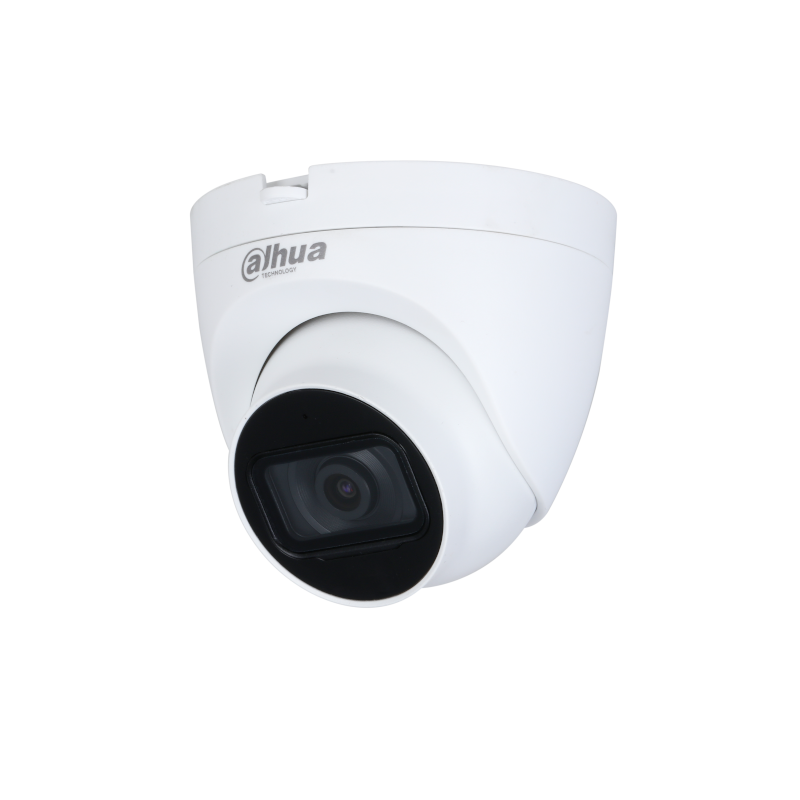

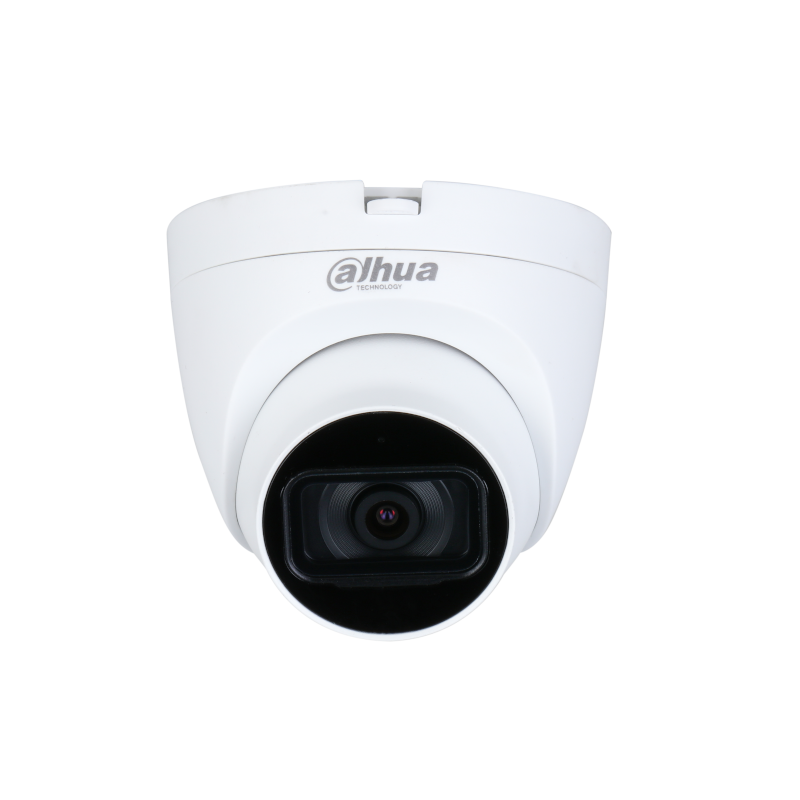

HAC-HDW1500TRQ 5MP Starlight HDCVI Quick-to-install IR Eyeball Camera.

Specifications

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65 dB

Min. Illumination

0.005 Lux/F1.6 30IRE, 0 Lux IR on

Illumination Distance

25m（82.0 ft）

Illuminator On/Off Control

Auto; manual

Illuminator Number

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: 132° × 111° × 58°

(diagonal × horizontal × vertical)

3.6 mm: 109° × 92° × 48°

(diagonal × horizontal × vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)

3.6 mm: 1.6 m (5.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.7 ft)

25.4 m

(83.3 ft)

12.7 m

(41.7 ft)

6.4 m

(21.0ft)

3.6 mm

80 m

(262.5 ft)

32 m

(105.0 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;

NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps

AHD:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

CVBS:

PAL: 960H;

NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Interface

One channel built-in mic (-A)

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.0W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +50°C (-40°F to 122°F);<95% (non-condensation)

Storage Temperature

-40°C to +50°C (-40°F to 122°F);< 95% (non-condensation)

Protection Grade

IP50

Structure

Casing

Plastic

Dimensions

Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66")

Net Weight

0.17 kg (0.37lb))

Gross Weight

0.23 kg (0.51lb)

Features

Lens	2.8
Color	White
Resolution	5MP
Camera type	Dome
Product class	LITE
IR distance	≤ 30 m
Features	Starlight

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
