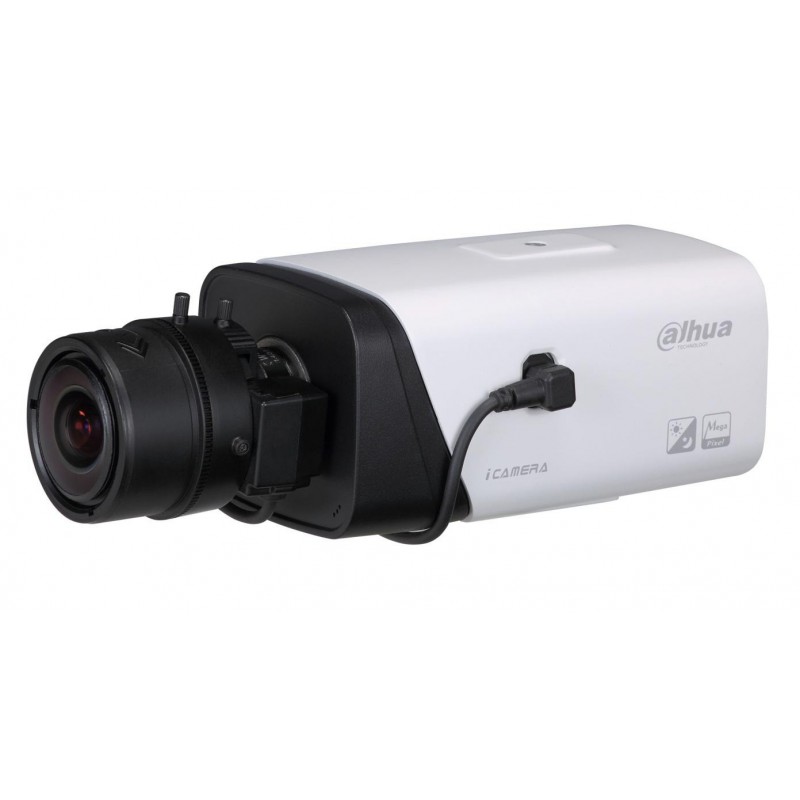

IPC-HF8301EP

IP Cameras

Product reference: CAIPHF8301EP

3MP Ultra-Smart IP Camera;
1/3” 3MP CMOS;
Triple streams supported;
Max 25/30fps@3MP(2048x1536);

At stores prices may vary

Price:

€171.52

€228.69 (- 25%)

€141.75 tax excl.

Favourite

We have 1 pcs
Delivery in 1 business days

Product information

IPC-HF8301EP specifications
CAMERA
Image Sensor	1/3” 3Megapixel CMOS
Effective Pixels	2048(H)x1536(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/10000s
Min. Illumination	Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2
S/N Ratio	More than 52dB
Video Output	1 channel BNC (1.0Vp-p，75Ω)
CAMERA FEATURES
Max. IR LEDs Length	N/A
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / WDR 120dB
White Balance	Auto / Manual
Gain Control	Auto / Manual
Noise Reduction	Ultra 3D
Privacy Masking	Up to 4 areas
EIS	Support
Ultra Defog	Support
Smart focus	ABF
LENS
Mount Type	C/CS
VIDEO
Compression	H.264 / MJPEG
Resolution	3M(2048× 1536)/1080P(1920× 1080)/720P(1280× 720)/D1(704× 576) /CIF(352× 288)
Frame Rate	Main Stream: 3M/1080P (1~25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) Third Stream: 1080P/720P/D1(1 ~ 25/30fps)
Bit Rate	H.264: 48K ~ 8192Kbps
ROI	Up to 4 areas
AUDIO
Compression	G.711a / G.711u
Interface	2/1 channel In/Out
SMART FUNCTION
Smart detection	Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect, Face detect
NETWORK
Ethernet	RJ-45 (10/100/1000Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour
Compatibility	ONVIF, PSIA, CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot	Micro SD, Max 64GB
RS485	1
Alarm	1/1 channel In/Out
GENERAL
Power Supply	DC12V/AC24V, PoE (802.3af)
Power Consumption	Max 3.5W
Working Environment	-20°C~+60°C, Less than 95% RH
Ingress Protection	N/A
Dimensions	71.4mm× 65.5mm× 135.4mm
Weight	0.3 kg
