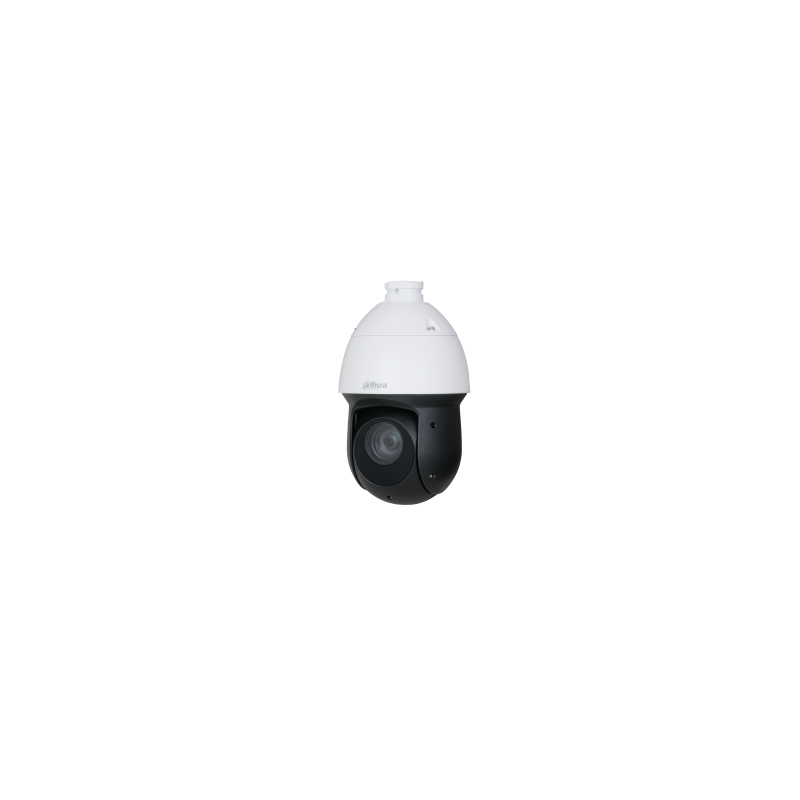

SD49225GB-HNR 2MP 25x Starlight IR WizSense Network PTZ Camera

IP Cameras

Product reference: CASD49225GB-HNR

1/2.8” 2Megapixel STARVIS™ CMOS
25x optical zoom
Starlight technology
Max. 25/30fps@2M
IR distance up to 100 m
Perimeter protection
Face detection
SMD 4.0
IP66

At stores prices may vary

Price:

€805.86

€666.00 tax excl.

Favourite

We have 2 pcs
Delivery in 1 business days

Product information

2MP 25x Starlight IR WizSense Network PTZ Camera

IVS (Perimeter Protection): Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/Human Alarm Classification
Face Detection: Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first.
Intelligence Notes: SMD and Perimeter Protection can be enabled simultaneously; Perimeter Protection and Face Detection cannot be enabled simultaneously
SMD - Yes
Quick Pick - Yes
Intelligence Type - WizSense

Specifications

Camera
Image Sensor																		1/2.8" CMOS
Pixel																		2 MP
Max. Resolution																		1080p (1920 × 1080); 1.3M (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640×480); CIF (352 × 288/352 × 240)
ROM																		4 GB
RAM																		1 GB
Electronic Shutter Speed																		1/1 s–1/30,000 s
Scanning System																		Progressive
Min. Illumination																		Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux@F1.6 (IR light on)
Illumination Distance																		100 m (328.08 ft) (IR)
Illuminator On/Off Control																		Zoom Prio; Manual; Auto; Off
Illuminator Number																		4 (IR)
Illuminator Type																		IR
Lens
Focal Length																		4.8 mm–120 mm
Max. Aperture																		F1.6–F3.5
Field of View																		H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
Optical Zoom																		25 ×
Focus Control																		Auto; semi-auto; manual
Close Focus Distance																		0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control																		Auto
DORI Distance																		D: 1,613 m (5,291.99 ft); O: 646 m ( 2,119.42 ft); R: 323 m (1,059.71 ft); I: 161 m ( 528.22 ft)
Zoom Speed																		3.0 s
PTZ
Pan/Tilt Range																		Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180°
Manual Control Speed																		Pan：0.1°–200°/s Tilt：0.1°–120°/s
Preset Speed																		Pan：240°/s Tilt：200°/s
Preset																		300
Tour																		8 (up to 32 presets per tour)
Pattern																		5
Scan																		5
Speed Adjustment																		Yes
Power-off Memory																		Yes
Idle Motion																		Preset;Pattern;Tour;Scan
Scheduled Task																		Preset;Pattern;Tour;Scan
Preset Video Freeze																		Yes
3D Positioning																		Yes
Intelligence
IVS (Perimeter Protection)																		Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/Human Alarm Classification
Face Detection																		Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first.
Intelligence Notes																		SMD and Perimeter Protection can be enabled simultaneously; Perimeter Protection and Face Detection cannot be enabled simultaneously
SMD																		Yes
Quick Pick																		Yes
Intelligence Type																		WizSense
Video
Video Compression																		Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream)
Streaming Capability																		3 streams
Resolution																		1080p (1920 × 1080); 1.3M (1280 × 960）；720p (1280 × 720); D1 (704 × 576/704 × 480); VGA（640×480）; CIF (352 × 288/352 × 240)
Default Bit Rate with Default Resolution																		4096 Kbps (1920 × 1080)
Video Frame Rate																		Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Bit Rate Control																		CBR/VBR
Video Bit Rate																		H264: 64–10496 Kbps H265: 25–6400 Kbps
Day/Night																		Auto (ICR)/Color/B/W
BLC																		Yes
WDR																		120dB
HLC																		Yes
White Balance																		Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control																		Auto; manual
Noise Reduction																		2D NR; 3D NR
Motion Detection																		Yes
Region of Interest (RoI)																		Yes
Image Stabilization																		Electronic Image Stabilization (EIS)
Defog																		Electronic
Digital Zoom																		16×
Image Rotation																		180°
Privacy Masking																		Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio																		≥ 55 dB
Audio
Audio Compression																		PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port																		1 × RJ-45 (10/100 Base-T)
Network Protocol																		HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS
Interoperability																		ONVIF (Profile S & Profile G & Profile T);CGI;SDK;RTMP;P2P
Streaming Method																		Unicast/Multicast
User/Host																		20 (total bandwidth: 64 M)
Storage																		Micro SD card (512 GB); FTP/SFTP; NAS
Browser																		IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions
Management Software																		Smart PSS;DSS;DMSS;IVSS;ConfigTool;NVR;ICC-B8900;DSS-C9100;Cloud Connection
Function
Regional Focus																		Yes
OSD Overlay																		Channel; time; preset; temperature; PTZ coordinate; zoom; north; pattern; geographical location; image
SDK and API																		Yes
Security																		Username and password; MAC address; HTTPS; IEEE 802.1x; network access control
Certification
Certifications																		CE-EMC:EN 55032; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 UL: UL62368-1
Port
Audio Input																		1 channel (LINE IN, bare wire)
Audio Output																		1 channel (LINE OUT,bare wire)
Alarm Input																		2
Alarm Output																		1 channel
Alarm Linkage																		Capture; recording; send email; preset; tour; pattern; alarm digital input
Alarm Event																		Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Alarm I/O																		2/1
Audio I/O																		1/1
Power
Power Supply																		12 VDC/3A±25% PoE+ (802.3at)
Power Consumption																		Basic: 9 W Max.: 20 W (Illuminator+alarm+PTZ)
Power Adapter																		Optional
Environment
Operating Temperature																		–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity																		≤ 95%
Storage Temperature																		–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity																		≤ 95%
Protection																		IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions																		270.4 mm × Φ160 mm (10.65" × Φ6.30")
Net Weight																		2.4 kg (5.29 lb)
Gross Weight																		3.9 kg (8.60 lb)
Installation																		Wall mount; ceiling mount; vertical pole mount; horizontal pole mount; corner mount; plane mount; parapet mount
Accessory																		Included: Wall mount bracket: Yes Optional: Power: 12 VDC/3 A Wall mount: PFB305W Ceiling mount 1: PFB300C + PFA111 Ceiling mount 2: PFB301C + PFA111 Vertical pole mount: PFA150 + PFB305W Horizontal pole mount: PFA150 + PFB300C + PFA111 Corner mount: PFA151 + PFB305W Plane mount: PFB301S-E Parapet mount: PFA111 + PFB303S
Filter
Port Type																		RJ45;Power supply
H.265																		Yes

Features

Lens	Motorized lens
Color	White
Resolution	2MP
Camera type	PTZ
Product class	LITE
IR distance	more than 80 m
AI functionality	Lite AI
Features	Support MicroSD ≤ 512GB
Features	Starlight
