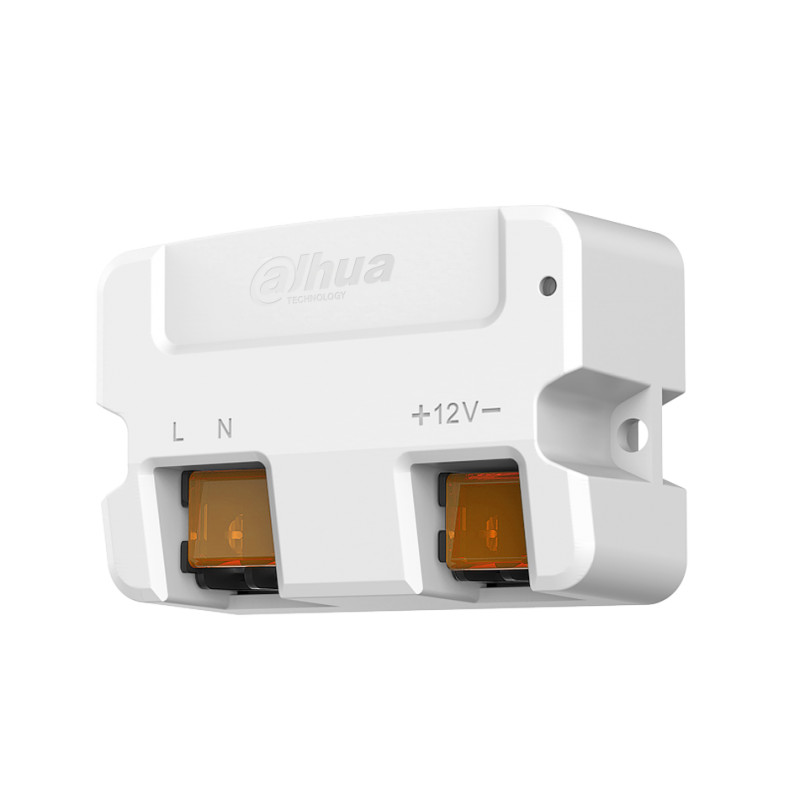

PFM320D-015 DC12V1.5A Power Adapter

12V AC/DC

Product reference: MAPFM320D-015

Easy installation
Support working with indicator light
Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
Accurate overcurrent, overvoltage protection

At stores prices may vary

Price:

€13.31

€11.00 tax excl.

Favourite

We have 7 qty.
Delivery in 1-2 business days

Product information

Specifications:

Model	DH-PFM320D-015
Electrical Specification
Rated input	AC100~240V, 50/60Hz, 0.6A
Output voltage	DC12V (+7%, -3%)
Output current	Max. 1.5A (+70℃)
Protection/Environmental
Protection	Surge protection, over temperature protection, over current, voltage load protection
	ESD: EN61000-4-2 +/-6kV Contact; +/-8kV Air
	Surge: EN61000-4-5 Combination Wave: Common Mode ±4KV(12 ohms) Differential Mode ±2kV(2 ohms)
Working temperature	-30℃~+70℃(-22℉~+158℉)
Working humidity	5%~95% RH
Physical Properties
Weight	95g(0.21lb)
Dimension(LxWxH)	77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
Installation	Plane installation, can be installed in junction boxes and wall mount brackets
Color	White
Input plug	2-pin plug(L/N)
Output plug	2-pin plug(+12V-)
Safety Standards
Certification	CE, FCC

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
