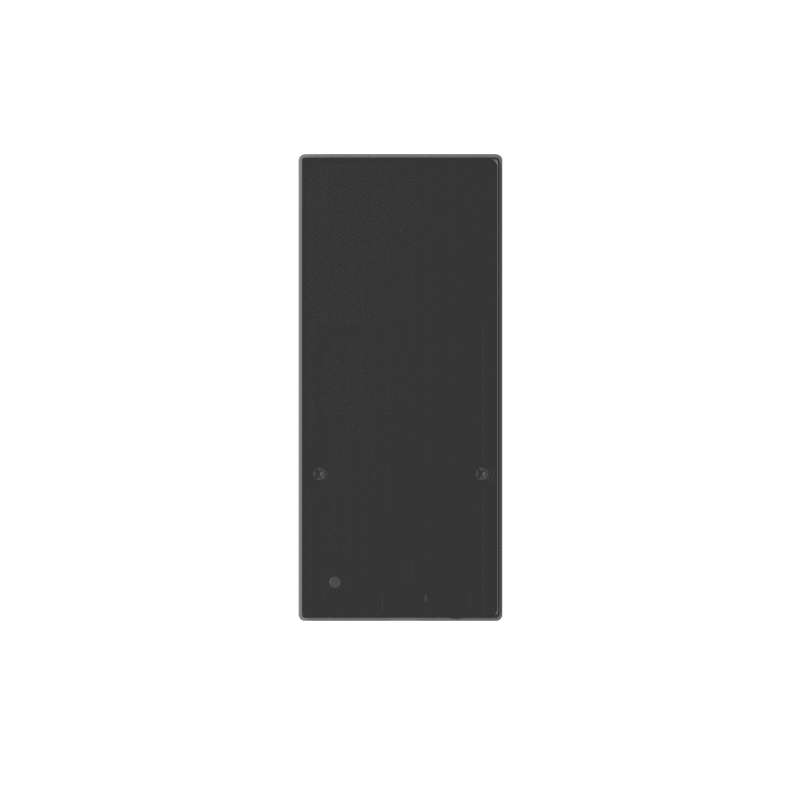

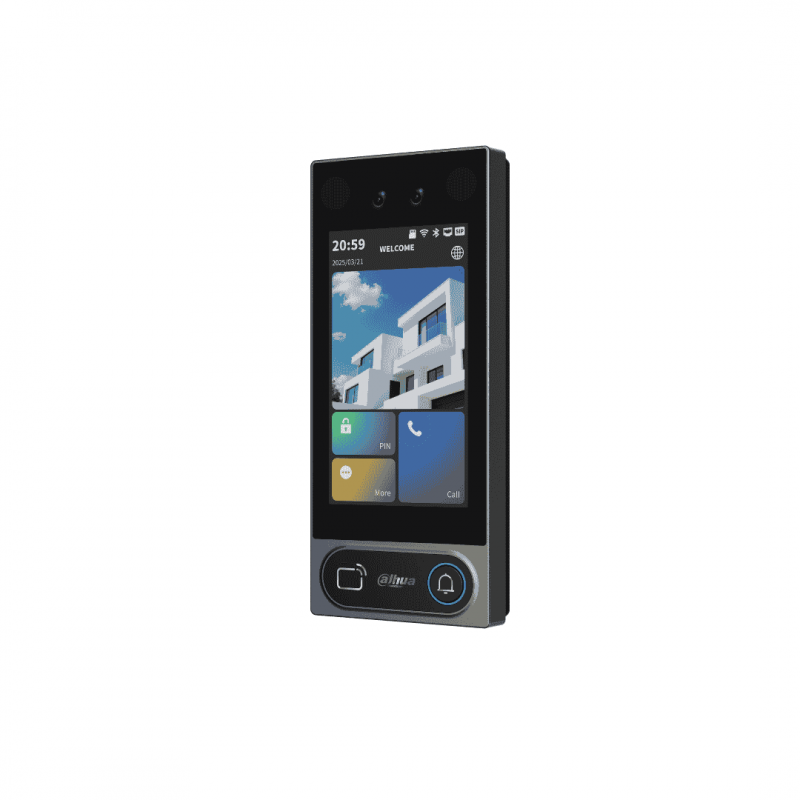

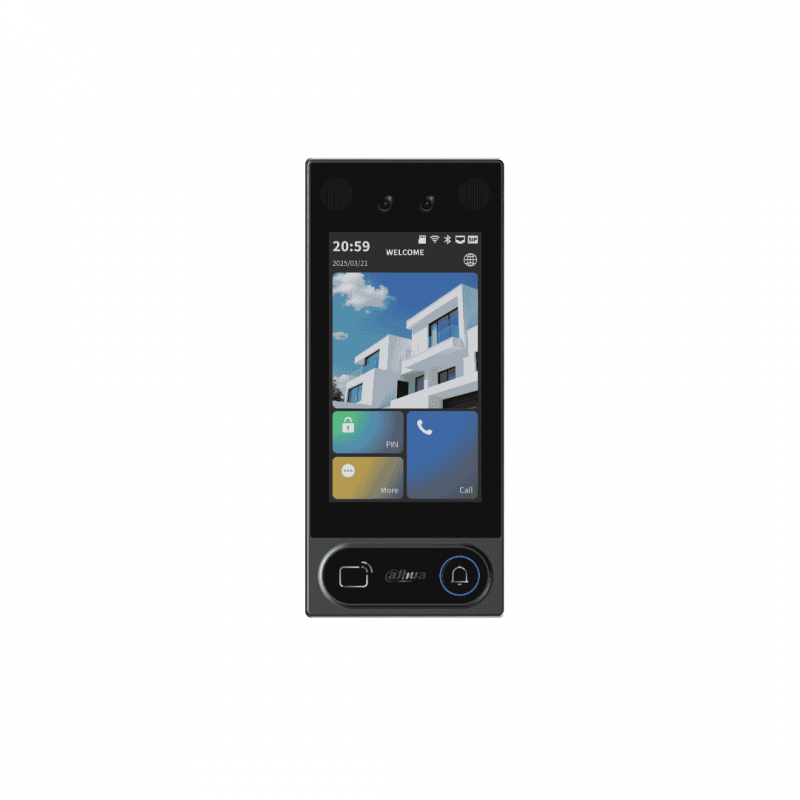

Dahua IP Video Intercom Door Station VTO6631QB-WP, Face Recognition, Black, 5" Screen

Intercoms

Product reference: VMVTO6631QB-WP

Ultra-thin frame design.

5-inch IPS screen with a high resolution of 720 × 1280.

2 MP wide angle camera with H: 119°, V: 66° and D: 142° FOV.

Unlocks through IC and ID cards, Bluetooth cards, face and password.

Supports 20,000 users, 20,000 faces, 20,000 passwords, 100,000 IC and ID cards, 20,000 Bluetooth cards and 200,000 records.

Recognizes faces 0.3 to 2 m away (0.98 to 6.56 ft), and has a face recognition accuracy rate of 99.9% and a one to many identification time of 0.2 sec per face.

The theme can be personalized, making it suitable for a wide variety of scenes.

Provides power to the card reader and electromagnetic lock

IP65 rated (Silicone sealant is required for the flush mount plate).

TCP/IP and Wi-Fi connection. PoE power supply.

At stores prices may vary

Price:

€406.56

€336.00 tax excl.

Favourite

We have 5 qty.
Delivery in 1-2 business days

Product information

Dahua IP Video Intercom Door Station VTO6631QB-WP, Face Recognition, Black, 5" Screen

Ideal for use in multiple scenes such as villa, apartment, office buildings, compound buildings, communities, etc.

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Button Type

Mechanical

Number of Buttons

Interoperability

ONVIF;CGI

Network Protocol

RTSP;DNS;FTP;RTP;RTMP;SIP;SSH;HTTP/HTTPS;ONVIF

Basic

Screen Type

Capacitive Touchscreen

Display Screen

5-inch display screen

Screen Resolution

720 (H) × 1280 (V)

Camera

1/2.8" 2 MP CMOS high-definition, low illumination, dual cameras

Field of View

H: 119°; V: 66°; D: 142°

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.264;H.265

Video Resolution

Main stream: 720P/D1/WVGA/CIF； Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA

Video Frame Rate

PAL: 25 fps; NTSC: 30 fps

Video Bit Rate

256 kbps–4,096 kbps

Light Compensation

Auto IR

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Verification Method

Card;Password;Face Recognition;Bluetooth

Frequency Range

2400-2483.5 MHz

Max. Transmission Power

CE EIRP:
≤20 [email protected] MHz

Bluetooth

Yes

Bluetooth Standard

BLE (Bluetooth mode), BT5.2 (Bluetooth version)

Auto Snapshot

Yes

Information Release

Receive and view text information released by the management center.

Elevator Control

Residents and visitors can call elevators. Permissions can also be granted to access floors through access control.

Leave Videos

Yes (SD card inserted in VTO is needed)

Storage

Supports Micro SD card (up to 128 GB)

Web Configuration

Yes

Auto Registration

Yes

RFID

Card Type

IC card;ID card

Modulation Type

ASK

Frequency Range

IC:13.56 MHz; ID:125 kHz

Max. Transmission Power

IC:42 dBuA/m @10m; ID:66 dBuA/m @10m

Network

Max. Transmission Power

≤20 [email protected] MHz

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Performance

Card Reading Distance

0 cm–3 cm

Face Recognition Height Range

1.2 m–2.0 m (3.94 ft–6.56 ft)

Face Recognition Distance

0.3 m–2.0 m (0.98 ft–6.56 ft)

Face Recognition Accuracy

99.9%

Face Recognition Time

0.2 s

Casing Material

Tempered glass;PC + ABS

Capacity

Card Capacity

100,000

Face Image Capacity

20,000

User Capacity

20,000

Port

RS-485

1 channel

Wiegand

1 channel

Alarm Input

2 channels

Alarm Output

1 channel

Power Output

Max 12 V, 1.5 A through an adapter
Max 12 V, 0.5 A through PoE

Exit Button

1 channel

Door Status Detection

1 channel

Lock Control

1 channel, open by default

Network Port

1 × 10 Mbps/100 Mbps Ethernet port

Alarm

Tamper Alarm

Yes

General

Appearance Color

Dark Silver

Power Supply

Standard PoE; 12 VDC, 3 A

Power Adapter

Optional

Installation

Surface Mount

Certifications

Accessory

Power supply (optional);
Surface Mounted (standard)

Product Dimensions

186.8 mm × 81.4 mm × 23.3 mm (7.35" × 3.20" × 0.92") (H × W × D)

Protection

IP65 rated (Silicone sealant is required.)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

0%–90% (RH), non-condensing

Operating Environment

Outdoor

Operating Altitude

0 m–1,300 m (0 ft–4,265.09 ft)

Power Consumption

≤ 8 W (standby), ≤ 10 W (working). These two values of power consumption do not contain the output power.

Gross Weight

0.82 kg (1.81 lb)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

30%–75%

Ultra-thin frame design.

5-inch IPS display with a high resolution of 720 × 1280.

2 MP wide-angle camera with a field of view of H: 119°, V: 66°, and D: 142°.

Unlock via IC and ID cards, Bluetooth cards, face recognition, and password.

Supports up to 20,000 users, 20,000 faces, 20,000 passwords, 100,000 IC/ID cards, 20,000 Bluetooth cards, and 300,000 records.

Recognizes faces at a distance of 0.3–2 m (0.98–6.56 ft), with 99.9% accuracy and a one-to-many recognition time of 0.2 seconds per face.

The interface theme can be customized, making it suitable for various application scenarios.

Provides power to the card reader and electromagnetic lock, supporting max 12 V, 0.5 A via PoE and 12 V, 1.5 A via adapter.

IP65 rated (silicone sealant required for flush mount installation).

Supports TCP/IP and Wi-Fi connection.

Powered via PoE.
