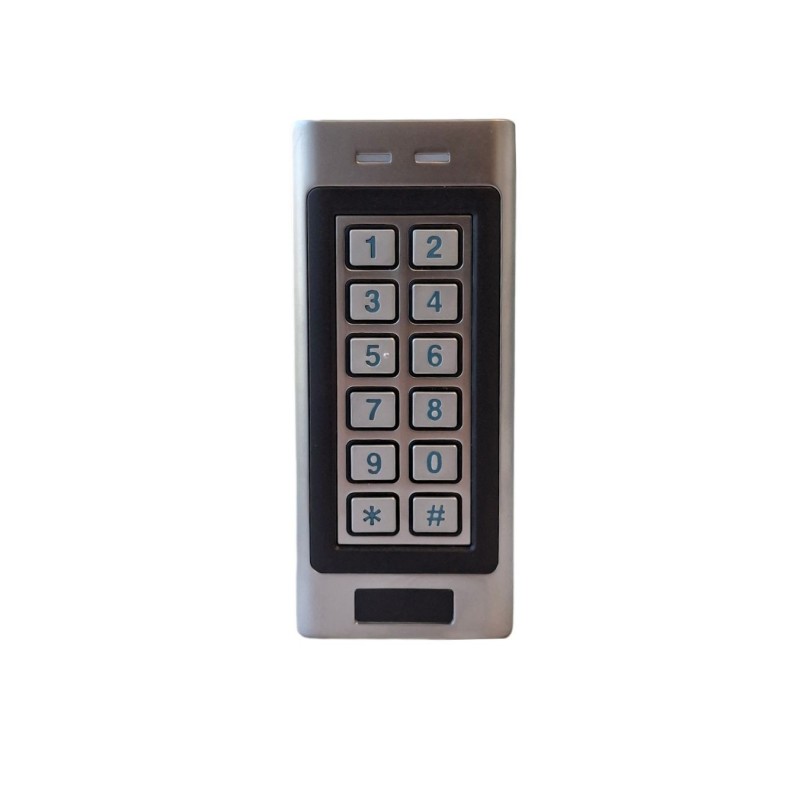

Multi-function keypad K4

Access Control

Product reference: PKPSKK4

User capacity: up to 1000 users (card or PIN)
Authentication: 13.56MHz Mifare card (ISO14443 Type A), PIN code (4–6 digits)
Power supply: 9–18V DC, current up to 80mA during operation
Card reader: detection distance ≥3 cm
Output: relay (NO/NC), adjustable output time (1–99 s), 3A max load
Environmental protection: IP66, operating temperature -40°C to +60°C, humidity up to 98% RH
Housing: zinc-alloy with powder coating, dimensions 13.0 x 5.6 x 2.3 cm
Weight: 500 g (650 g with packaging)

At stores prices may vary

Price:

€40.66

€33.60 tax excl.

Product information

Category	Parameter	Value
Usage	User capacity	1000
	Card type	13.56MHz Mifare card
	PIN code	4–6 digits
Power	Operating voltage	9–18V DC
	Idle current	≤50mA
	Active current	≤80mA
Card Reader	Radio technology	13.56MHz Mifare (ISO14443 Type A)
Card Reader	Reading distance	≥3 cm
Functionality	Connected features	Relay output, exit button
	Relay	One (NO, NC, Common)
	Relay output time	1–99 seconds (default: 5 sec)
	Lock output load	Max. 3A
Environmental	Moisture resistance	IP66
	Operating temperature	-40°C ~ 60°C
	Humidity resistance	20% RH ~ 98% RH
Physical	Surface material	Zinc-alloy housing with powder coating
	Dimensions	13.0 x 5.6 x 2.3 cm
	Product weight	500 g
	Weight with packaging	650 g
