On BUS power supply station for alarm systems ISOPOWER/B5, 12V/5A

Accessories
Product reference: MAISOPOWER/B5

ISOPOWER is the auxiliary power station designed to meet the needs of complex anti-intrusion systems or systems consisting of multiple installations, to enhance their capabilities.

Read more
Favourite

Product information

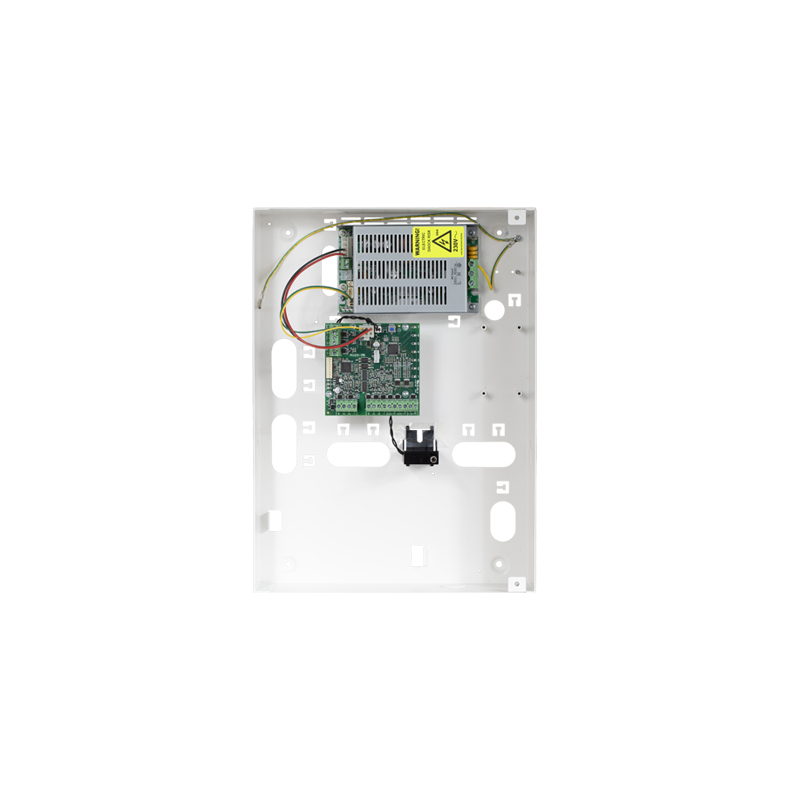

A fully integrated solution with connection via BUS to the anti-intrusion control panel that allows complete and constant monitoring of the station itself and of the individual internal elements. The device features a BUS isolator to protect against any malfunctions, furthermore, the two sections, from the control panel and in direction of the field, are galvanically isolated.

2 12V auxiliary power supply terminals commanded by control panel events, 1 permanent 12V terminal, 3 open-collector terminals for signalling faults to external devices, front panel with 6 signalling LEDs: ISOPOWER has highly advanced features and technologies to obtain maximum reliability of the alarm system.

Technical features
ISOPOWER/B2 ISOPOWER/B5
Stations connectable to control panel BUS 10
Maximum current for the field 12V@2A 12V@5A
Maximum current for the backup battery 1.2A
Backup battery 12V  7Ah 12V  18Ah
Power supply terminals controlled by the control panel 2 (AUX1, AUX2)
Permanent power terminals 1
Open-collector signalling terminals 3
mains failure
generic faults
overcurrent

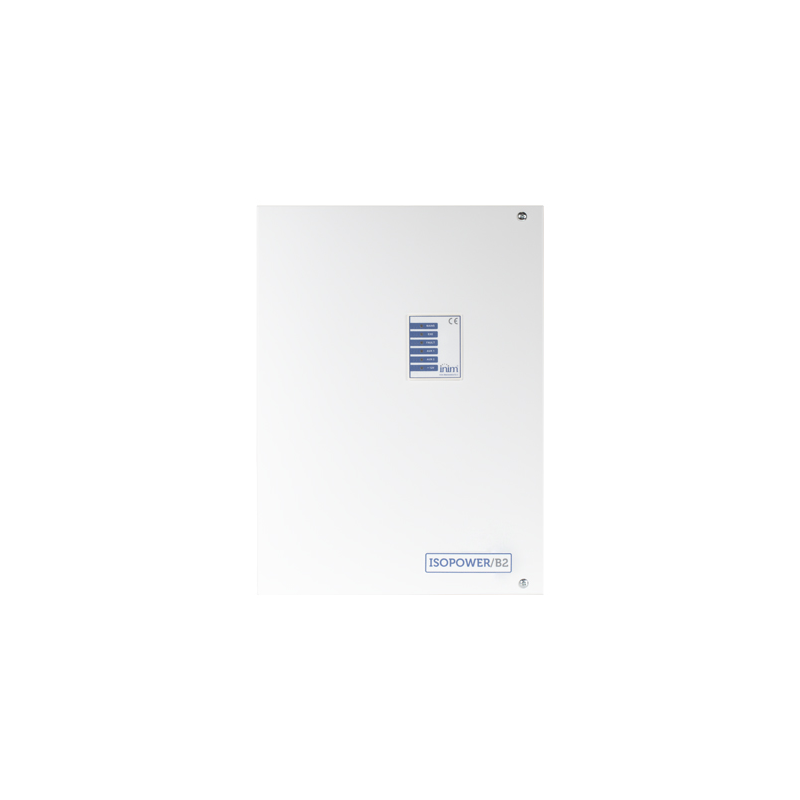

Front panel signaling LEDs 6
Mains failure
Device operating
Generic fault
AUX1 terminal: status + faults
AUX2 terminal: status + faults
+12V terminal: status + faults
Regulations EN50131-1      EN50131-6
Security rating: 3
Dimensions 27,5x37,4x8,6 cm 37,5x46,6x9,2 cm
Weight 3,2 Kg 5 Kg
