TL-SM321B 1000Base-BX WDM Bi-Directional SFP Module

Price:

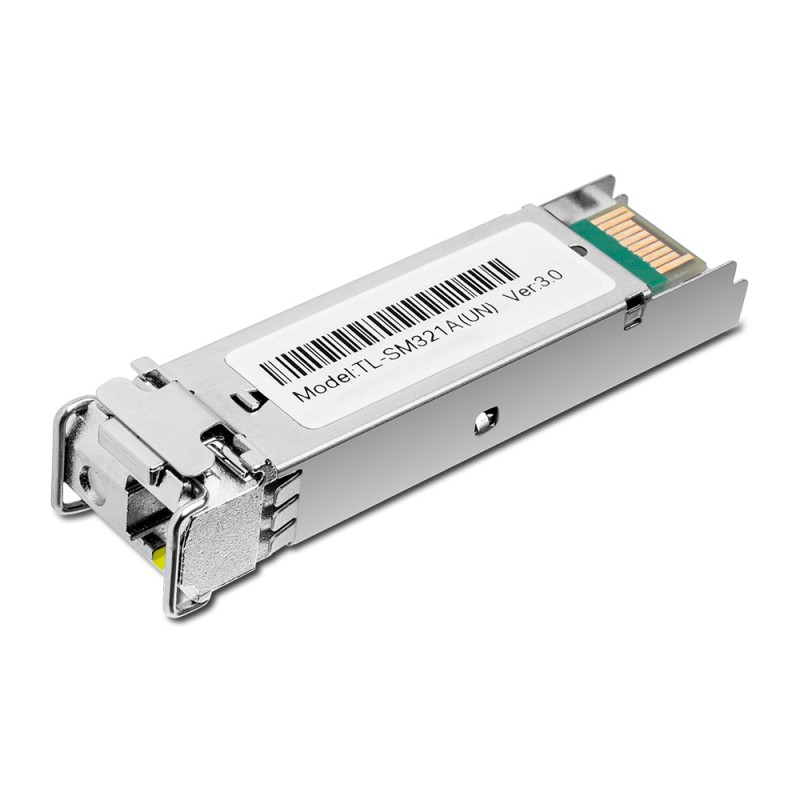

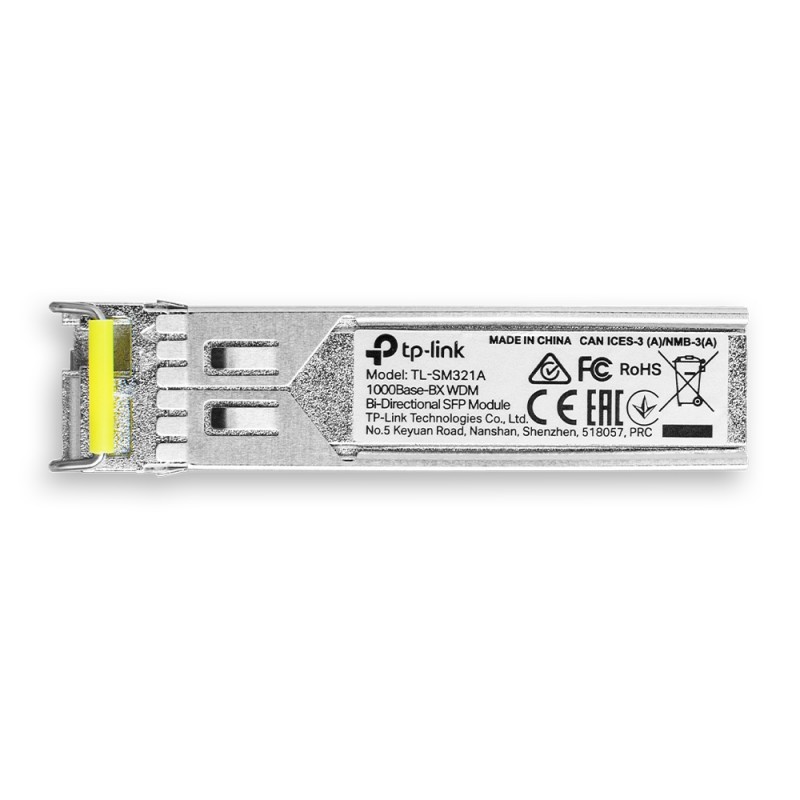

TL-SM321A 1000Base-BX WDM Bi-Directional SFP Module

Accessories

Product reference: KSTL-SM321A

TP-Link´s TL-SM321A adopts the latest standard 1000Base-BX, transmitting over one single-mode fiber with one different wavelength going in each direction. Paired with TL-SM321B, You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters for reliable high-speed long-distance communication.

At stores prices may vary

Price:

€17.06

€14.10 tax excl.

Favourite

Product information

Up to 20 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)
Bidirectional WDM communication on a single fiber
Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
Supports Digital Diagnostic Monitoring (DDM)
Hot-swappable module design
Work with TL-SM321B as a pair

Specifications:

PACKAGE CONTENTS
Package Contents	• SFP Module TL-SM321A • Installation Guide
HARDWARE FEATURES
DDM	Yes
SFP-MSA	Yes
Hot Swappable	Yes
MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3z, TCP/IP
Wave Length	TX: 1550 nm RX: 1310 nm
Dimensions (WDH)	2.20.60.5 in (55.414.612.9 mm)
Power Supply	3.3 V
Safety & Emission	FCC, CE
Cable	Single-Mode Fiber
Fiber Type	9/125 μm Single-Mode
Max. Cable Length	20 KM
Data Rate	1.25 Gbps
Port Type	LC Simplex
Environment	Operating Temperature: 0–70 °C
	Storage Temperature: -40–85 °C
	Operating Humidity: 10–90% RH, Non-Condensing
	Storage Humidity: 5–90% RH, Non-Condensing
