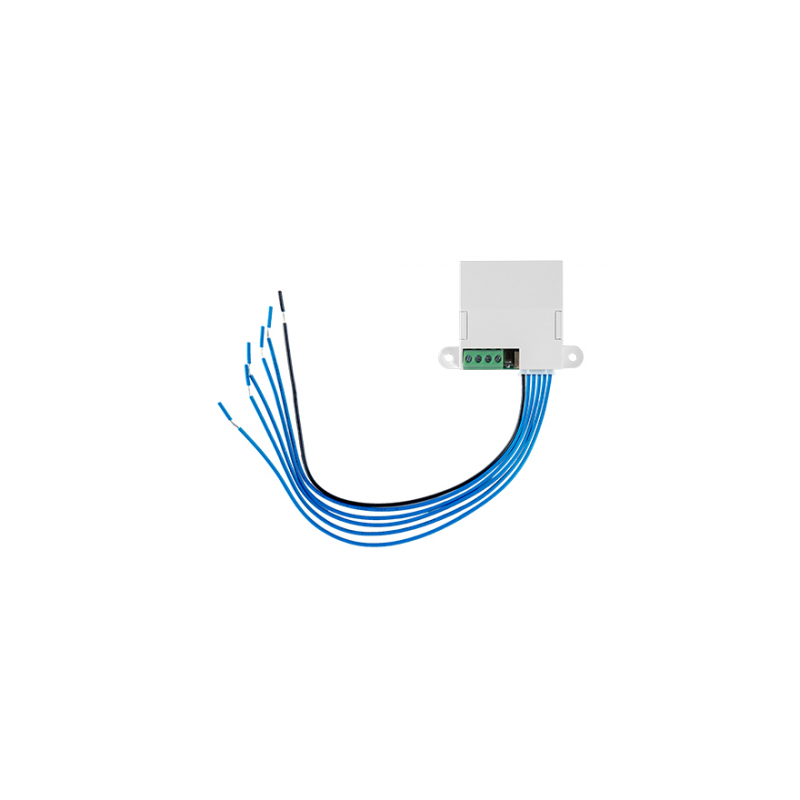

UM105H Universal home automation module with 5 inputs/outputs

Accessories

Product reference: PUUM105H

UM105H is the universal home automation module to manage smartly and flexibly the security and comfort functions of the home. Thanks to its small and compact size, it can be housed directly inside small junction boxes, saving valuable space.

We have 2 pcs
Delivery in 1 business days

Product information

The UM105H module enables the conversion of conventional electrical series switches into domotic commands for controlling lights, door openers, and other programmable features.

The module connects to the control panel BUS and has 5 programmable IN/OUT terminals available on a pre-wired connector, making installation quick and easy.

The UM105H is a simple and handy way to integrate a security system with domotic features, adding comfort and usefulness to the house.

Technical specification

Voltage	from 9 to 15V DC
Current draw
typical	20 mA
maximum	30 mA
Maximum current draw available for OC terminal	250 mA
Operating environmental conditions
temperature	from -10° a +40°C
relative humidity	≤75% without condensation
Security grade	3
Environmental class	II
Dimensions
with flanges	54 x 40 x 15 mm
without flanges	38 x 40 x 15 mm
wires	180 mm
Weight	15 g

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
