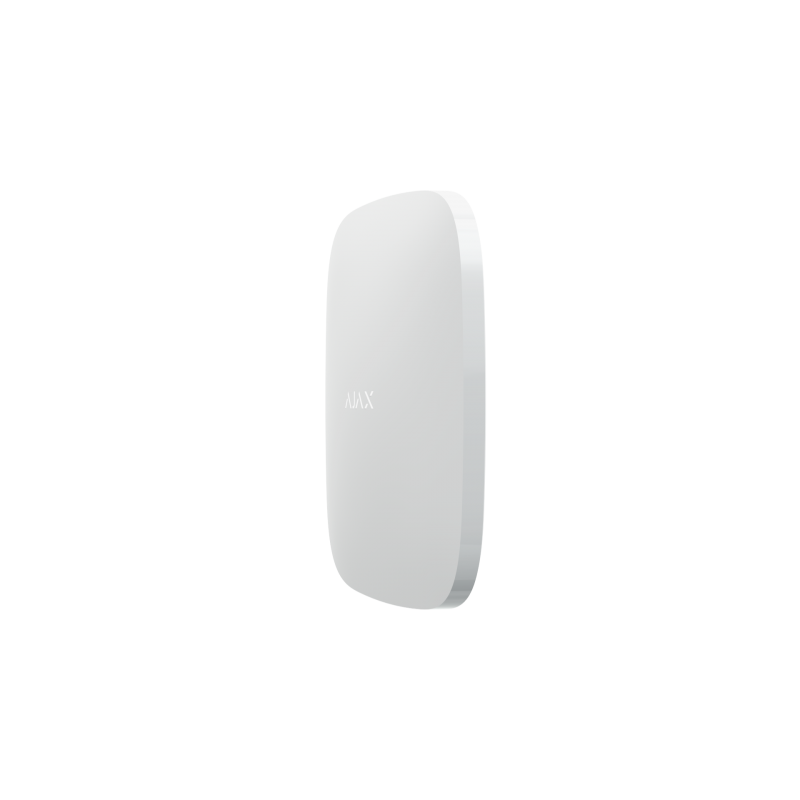

Hub 2 4G Security system control panel with support for photo verification

Product information

Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies — from false calls of patrols.

Always connected — via cable and cellular networks

Communication with the outside world is critical for the security system control panel. Its reliability and stability guarantee timely alarm transmission to the security company and users.

Hub 2 can be simultaneously connected to Internet service providers — via Ethernet cable and 2G network. The automatic switching between channels takes seconds.

Guaranteed delivery of alarms and visual alarm verifications

To ensure reliable communications, we have equipped Hub 2 with four antennas and support of two proprietary radio protocols: Jeweller and Wings. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication uses frames to synchronize device communication sessions, authentication to prevent fraud, and encryption to protect against data theft.

Flexibility at the core

The Hub 2 radio network covers several floors and separate buildings — thanks to the communication range of 2,000 meters and the ability to connect five range extenders. To manage access and security zoning of the facility, the hub allows connecting 50 users and creating 9 security groups. Hub 2 is a perfect choice for home and business security.

Controlled with apps

Ajax refrained from control buttons on the control panel body and archaic interfaces — apps are more convenient and reliable. They connect to a hub via a secure channel through the Ajax Cloud server located in several AWS data centres. Server availability in 2021 was 99.995%.

Apps allow system users with administrator rights to manage the security of the facility, change settings of the hub and the devices connected to it, create scenarios, and monitor events. From a smartphone or a PC. On the site and remotely.

Automates security

Hub 2 allows creating 32 scenarios and minimizing the impact of human factor on security. The hub can arm and disarm a facility or a group by schedule. Instantly activate a smoke machine if someone enters the premises. Blackout the premises and turn on emergency lighting in case of fire. Or shut off the water in case of a leak. Control lights, electric locks, roller shutters, and garage doors — by arming/disarming, button press, or a detector alarm.

• Flood prevention system
• Automatic doors and roller shutters
• Alarm-triggered site illumination

Resistant to sabotage

Whatever happens to Hub 2, the security company and the users will be notified. No one can disconnect the hub unnoticed when the facility is disarmed. If an intruder attempts to dismount the device, this will trigger the tamper immediately. The Ajax Cloud server can notify about the loss of connection with the hub in 60 seconds due to frequent polling. Even if the building is de-energized, the hub will protect the object for up to 16 hours with a built-in backup battery.

Technical specification

• Colour: White
• Installation type: Indoors
• Maximum number of connected devices: Up to 100
• Maximum number of connected radio signal range extenders: Up to 5
• Video surveillance: Up to 25 cameras or DVRs
• Users: Up to 50
• Rooms: Up to 50
• Scenarios: Up to 32 (Scenarios by arming/disarming are not included in the overall limit of the hub's scenarios)
• Security groups: Up to 9
• Communication channels: Ethernet; two SIM cards; 2G (GSM900/DCS1800 (B3/B8)); 3G (WCDMA 850/900/2100 (B1/B5/B8)); LTE (FDD B1/B3/B5/B7/B8/B20)
• Switching between 2G, 3G, LTE: Instantly
• Alarm delivery time: 0.15 sec
• Types of notifications: Push notifications; Phone calls; SMS (types of notifications depend on user settings)
• Sending photo in case of an alarm: Photo delivery time under default settings up to 9 seconds; Photo resolution: up to 640×480 pixels; Photos in a series: 1–5
• Switching between SIM cards: 4 minutes
• Operating system: OS Malevich
• Power supply: 110−240 V, 50/60 Hz; Consumption from the 110-240 V AC grid is up to 10 W; 6 V⎓ with an alternative power supply unit 6V PSU; 12 V⎓ with an alternative power supply unit 12V PSU
• Backup battery: Li-Ion 2 Аh
• Up to 16 h of battery life with Ethernet disabled
• Jeweller radio protocol: Communication range — up to 2000 meters in a line of sight; Two-way communication between devices.
• Wings radio protocol: Transmission of a series of photos; Transmission of photos by request; Checking photo delivery.
• Auto-regulated radio signal power: ≤ 20 mW
• Protection class: IP50
• Operating temperature range: From −10°С to +40°С
• Operating humidity: Up to 75%
• Anti-sabotage: Forgery prevention; Notifications about jamming; Tamper to detect back lid opening and unmounting from SmartBracket
• Remote configuration +
• Dimensions: 163 × 163 × 36 mm
• Weight: 362 g
