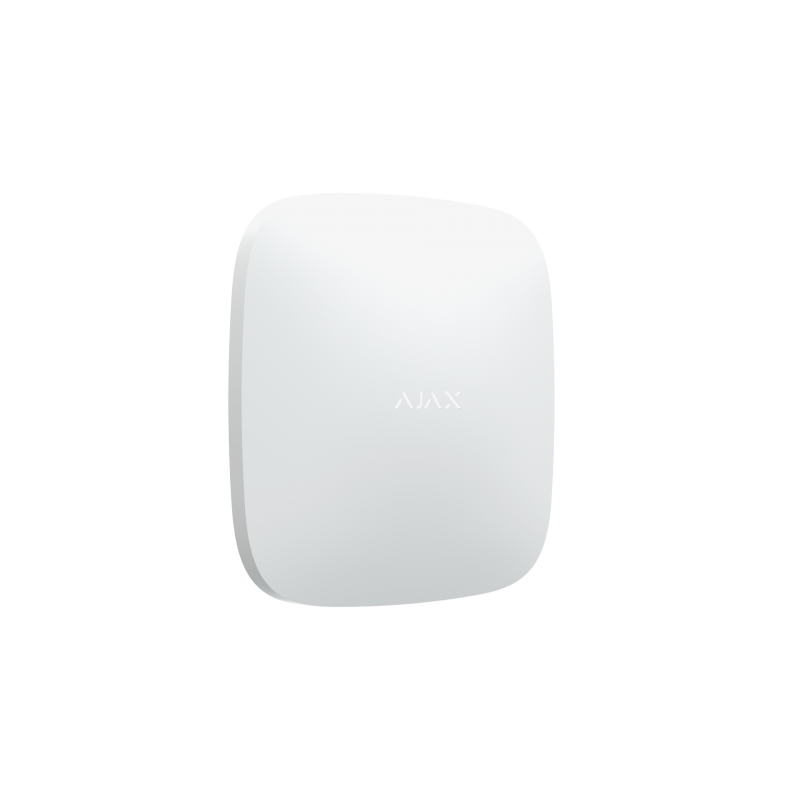

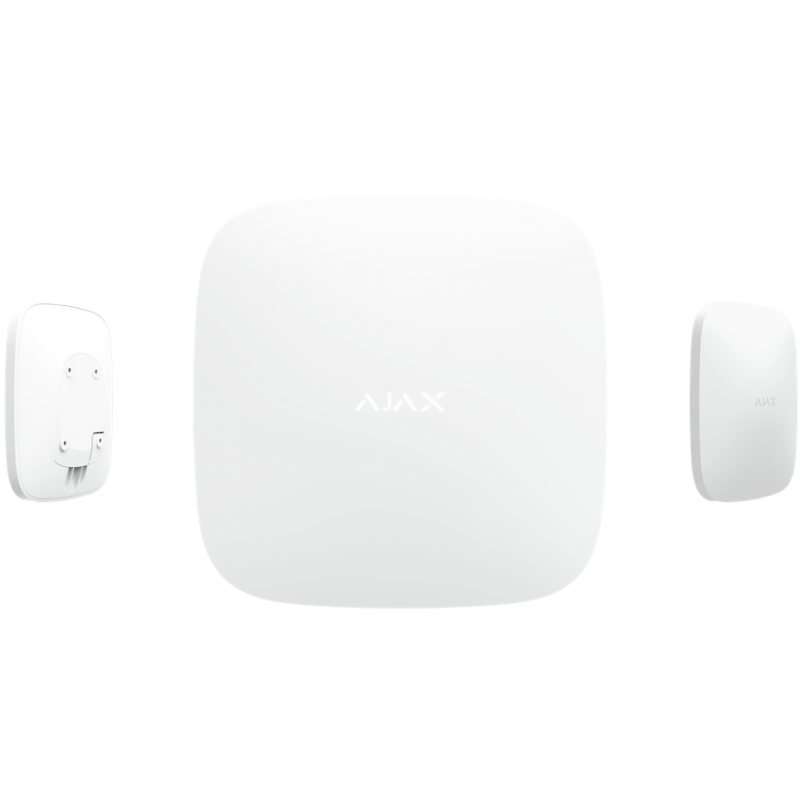

HUB Plus control panel, 2xSIM 2G, 150 devices, 99 users, white

Product information

Second-generation intelligent control panel HUB Plus with four communication channels, a new powerful processor, tripled RAM capacity and doubled flash memory capacity. The Hub Plus monitors the operation of all Ajax detectors and instantly alerts the owner and the security company.

Suitable for:

• For home and apartment
• For office
• For shop and cafeteria

Uses all possible alarm transmission methods

The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station.

Increases stability by 4 times

The Hub Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically.

Improved reliability

The Hub Plus makes it possible to use redundant Internet connection by connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the backup — via Wi-Fi. If connection of one provider fails, the hub will stay connected and continue monitoring the situation at the site.

Installation and set up

Ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.

Safe home and office automation

Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost.

Tech specs

• Classification: intelligent central unit of the security system with Wi-Fi and Ethernet modules, and dual SIM
• Installation: Indoors
• Connected devices: 150
• Video surveillance: Up to 50 cameras or DVRs
• Users: 99
• Rooms: 50
• Security groups: 25
• Connected ReX: 5
• Connected sirens: up to 10
• Scenarios: 64
• MotionCam detectors support: No
• Mobile Apps: iOS 13.0 and later; Android 5.0 and later
• Communication channels: Ethernet; 2G (900/1800 MHz); 3G (WCDMA 900/2100 (B8/B1)); Wi-Fi 2.4 GHz (802.11 b/g/n)
• Alarm signal: Delivery time: 0.15 s
• Types of notifications: SMS, call, push
• Switching between 2G and 3G: Instant
• Switching between SIM cards: 4 minutes
• Communication with the CMS: Contact ID, SIA
• Processor: ARM
• Operating system: OS Malevich
• Power supply: 110-240 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX
• Built-in back-up battery: Li-Ion 2 А·h
• Up to 16 hours of battery life when Ethernet and Wi-Fi connections are disabled
• Energy consumption from the grid — 10 W
• Jeweller radio protocol: Communication range with detectors — up to 2000 m in an open area; Two-way communication between devices
• SIM card support: 2 × Micro SIM (3FF)
• Operating temperature range: −10°C to +40°C
• Anti-sabotage features: Protection against fraud; Jamming detection and notification; Tamper-resistant
• Remote set up +
• Dimensions: 163 × 163 × 36 mm
• Weight: 350 g

Compliance with standards:
