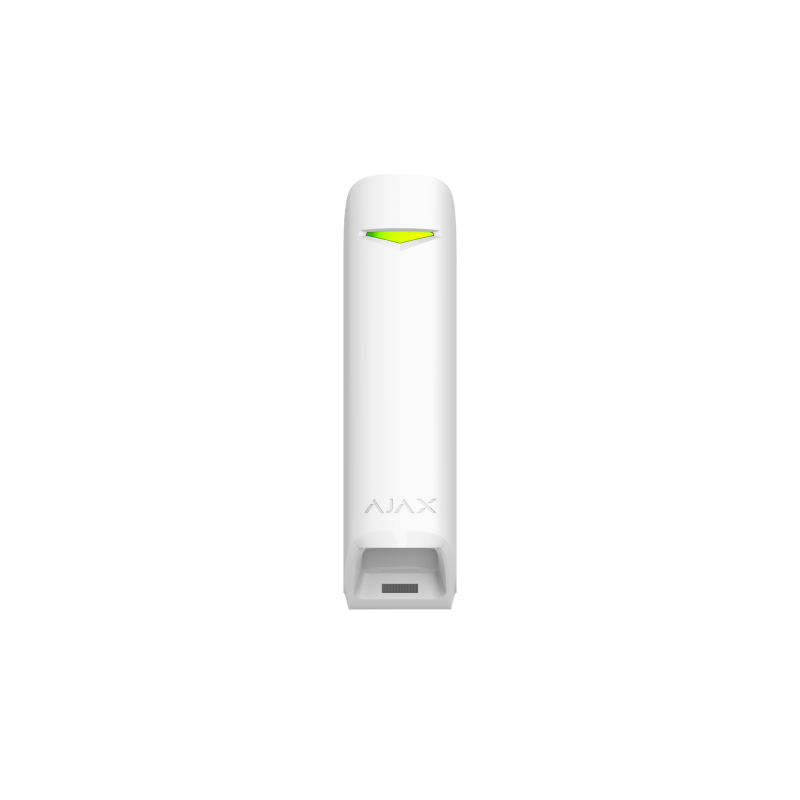

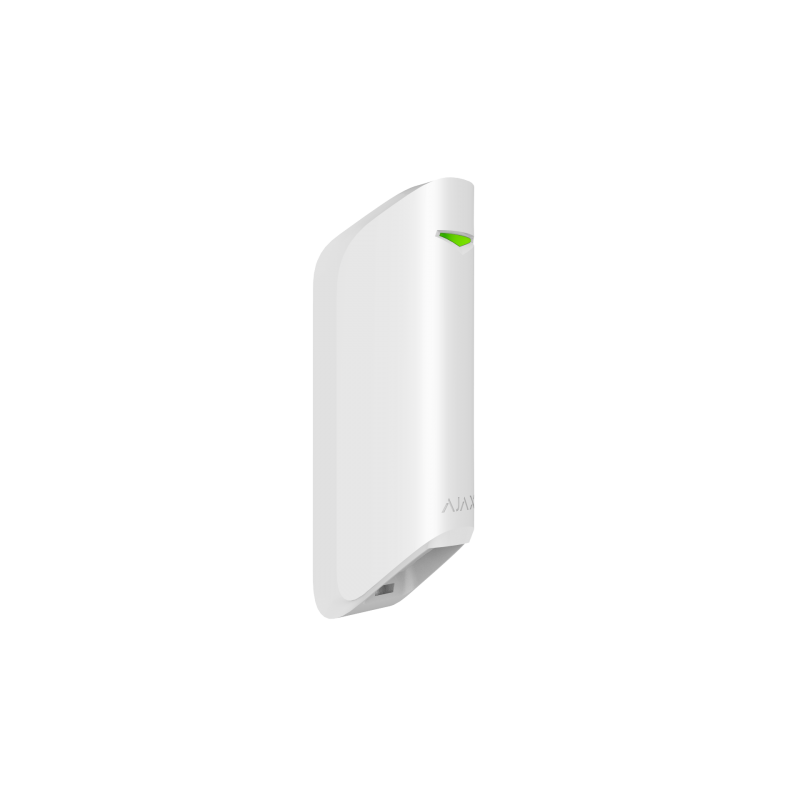

MotionProtect Curtain narrow beam indoor motion detector, white

Product information

To create MotionProtect Curtain, Ajax developed an optical system of two infrared sensors and a multifaceted mirror. This system allows the detector to receive twice as much information about what is going on in the protected area and instantly react to human presence.

• Detects motion with a range of up to 15 meters
• Works up to 3 years on the pre-installed battery
• Transmits alarms at a distance of up to 1,700 meters away from the hub

Reliable perimeter protection

• At home. With the MotionProtect Curtain detectors, you can secure the perimeter of your house and freely move indoors. If a stranger breaks in, the system will raise an alarm and call the security company.
• In a garage. Burglars won't get through the garage door undetected when MotionProtect Curtain is in action. The curtain detector will continue to operate even if the temperature drops to -10°C.
• At a museum. The visitors can stroll the exhibits as they please. But if they cross the line and reach towards an artwork, an alarm will be raised.
• In a pet-friendly apartment. When installed correctly, MotionProtect Curtain keeps your private property safe and ignores the pets, even if they are Saint Bernards.

Rapid reaction to threats

Whether the intruder is running or sneaking — MotionProtect Curtain is always on duty. As soon as they enter its field of view, the detector analyzes signals from both PIR sensors and immediately sends an alert.

2-minute set-up. MotionProtect Curtain connects to the security system via Ajax app: scan the QR code, add the detector to the room, and proceed to installation.

Tech specs

• Classification: Radio-interlinked photoelectric security detector
• Type of detector: Wireless
• Motion detection distance: Adjustable (from 6 to 15 meters)
• Installation method: Indoors only
• Compatibility: Operates with all Ajax hubs and range extenders
• Sensing element: Two PIR sensors
• False alarm reduction: Available, Correlation Signal Processing
• Alarm signal delivery time: 0.15 seconds
• Detection angles: Horizontally — 6°; Vertically — 90°
• Time for motion detection: From 0.3 to 2 m/s
• Sensitivity: Adjustable, 3 levels
• Recommended installation height: 2.4 meters
• Power supply: Battery: CR123A, 3 V
• Battery life: Up to 3 years
• Jeweller radio technology: Communication range with detectors — up to 1,700 m in an open space; Two-way communication between devices
• Temperature sensor: Available
• Operating temperature range: From −10°С to +40°С
• Operating humidity: Up to 95%
• Anti-sabotage: Fraud protection; Jamming notification; Tamper-resistant
• Remote configuration and testing +
• Protection class: IP54
• Dimensions: 134 × 44 × 34 mm
• Weight: 118 g
