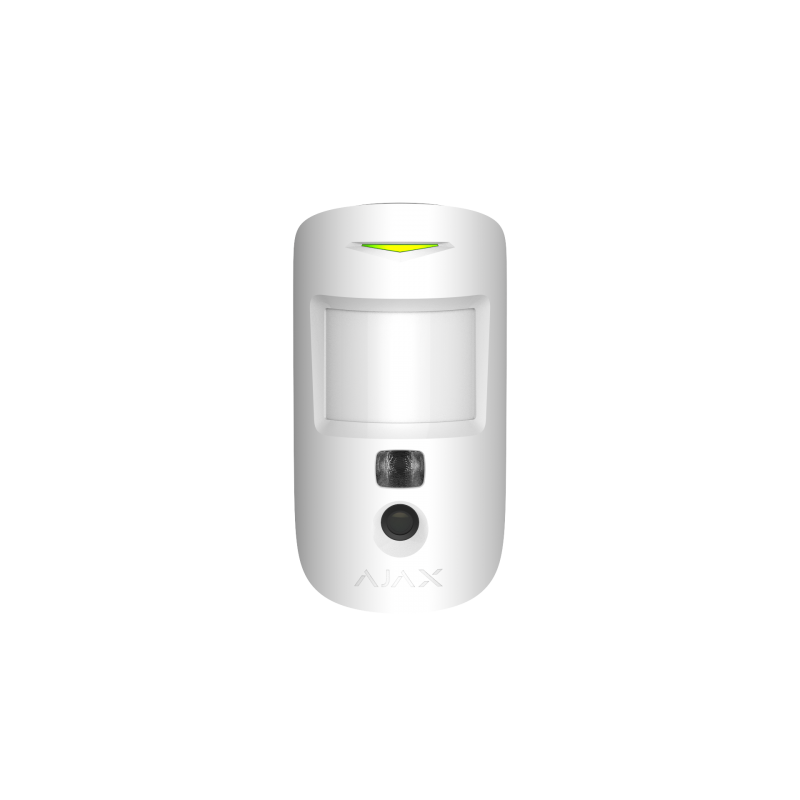

MotionCam wireless motion detector with a photo camera

Product information

Ajax MotionCam wireless motion detector with a photo camera to verify alarms.

• Adjustable image resolution
• Software filter for false alarms
• IR backlight for the photos in the dark
• Pet immunity Up to 20 kg / Up to 50 cm
• Up to 4 years of operation from pre-installed batteries

Intellect against false alarms

We have combined special optics with a software filter for false alarms in motion detectors. Along with a professional installation, it gives high detection accuracy.

Special lens

The pattern of the Fresnel lens sections is designed so that the diagrams of the infrared radiation of a human, an animal, and thermal noise have significant differences. Large sections of the lens capture radiation at the level of the head and torso of an adult. Smaller sections make the diagram more detailed. The MotionCam Jeweller lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Professional installation

Installing the MotionCam Jeweller in the right spot, at the optimum height, and perpendicular to the likely intrusion path ensures an informative thermal diagram. It significantly improves detection accuracy. Professional installation also makes the pet immunity feature more effective.

Temperature compensation

Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body.

With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Sensitivity level

With the sensitivity setting, the detector adapts to the conditions of a particular room, considering possible thermal interference or pets. Changing the sensitivity setting affects the markers by which false alarms are filtered.

With low sensitivity, the detector is less likely to respond even to an active pet. And with high sensitivity, it will raise the alarm in case of any motion in the detection zone.

Sensitivity is configured in the Ajax app both on-site and remotely.

More than a photo. Faster than a video

MotionCam Jeweller will show the actual situation from the scene even before the burglars understand that they’re busted. An animated series of photos follows the instant alarm for an accurate situation appraisal. MotionCam Jeweller can only take photos in case of an alarm. The detector software architecture does not support taking a photo on demand.

Less concern

Up to 70% of false alarms happen when disarming the security system. With MotionCam, system users and monitoring company operators can verify in seconds whether an alarm is real and respond accordingly.

More security

Both system users and a rapid response team need to clearly understand what happens on the scene in case of an alarm. MotionCam will show how many intruders are armed and whether they are still in the room. This will help a security company patrol prepare, and the users avoid danger.

Evidence in a smartphone

A series of animated photos provide the law enforcers with the description of intruders, no time wasted. MotionCam will capture them even in complete darkness, thanks to the IR backlight. The chances of catching burglars in the act increase.

Tech specs

• Sensitive element: 1 × PIR sensor
• Motion detection distance: up to 12 m, When installed at a height of 2.4 m.
• Motion detection angles: horizontal — 88.5°; vertical — 80°
• Motion detection speed: from 0.3 to 2.0 m/s
• Sensitivity: 3 levels. Adjusted by PRO or user with admin rights in the Ajax app.
• Pet immunity: weight: up to 20 kg; height: up to 50 cm
• False alarm prevention: SmartDetect, Software algorithm.
• Temperature compensation: Effective motion detection at temperatures from −10°C to +40°C.
• Photo by alarm: A built-in camera is activated if the detector is armed, and motion is detected.
• Photo resolution: 640 × 480 px; 320 × 240 px (by default); 160 × 120 px (Adjusted by PRO or user with admin rights in the Ajax app)
• IR backlight: For night photography and low light conditions.
• Pictures in a series: from 1 to 5 images with resolution of 320 × 240 px or 160 × 120 px; from 1 to 3 images with resolution of 640 × 480 px (Adjusted by PRO or user with admin rights in the Ajax app)
• Photo delivery time:
  • up to 7 s — 160 × 120 px resolution
  • up to 9 s — 320 × 240 px resolution
  • up to 20 s — 640 × 480 px resolution
• Power supply: 2 × CR123A battery, up to 4 years of battery life.
• Dimensions: 135 × 70 × 60 mm
• Weight: 167 g
• Operating temperature range: from −10°C to +40°C
• Operating humidity: up to 75%
• Protection class: IP50
