Enea EC0020B Addressable Emergency Call Point, Blue

Attack Buttons

Product reference: PSEC0020B

Enea EC0020B

We have 50+ qty.
Delivery in 1-2 business days

Product information

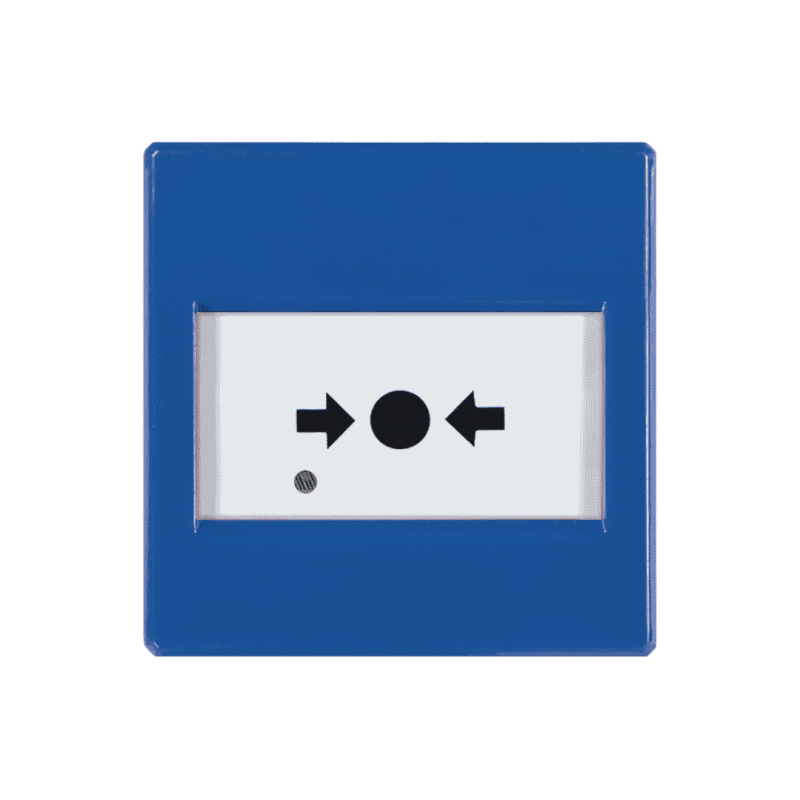

Enea EC0020B – Addressable Emergency Call Point, Blue

Enea EC0020B is a blue addressable resettable emergency call point designed for special alarm and control functions in INIM addressable fire detection systems. The device connects directly to the addressable loop, features an integrated short-circuit isolator, and includes a bright LED status indicator for easy monitoring. After activation, the call point can be quickly reset using the supplied plastic key.

Key Features

Addressable resettable emergency call point.
Blue housing for special alarm and control functions.
Integrated short-circuit isolator.
LED status indicator.
Resettable using the supplied plastic key.
Direct connection to the addressable loop.
Compatible with INIM Previdia Compact, Previdia Max, and Previdia UltraVox control panels.

Technical Specifications

Supply voltage: 19–30 V DC
Standby current: 80 μA
Alarm current: 5 mA
Operating temperature: –10°C to +55°C
Dimensions: 84 × 84 × 45 mm
Weight: 126 g
