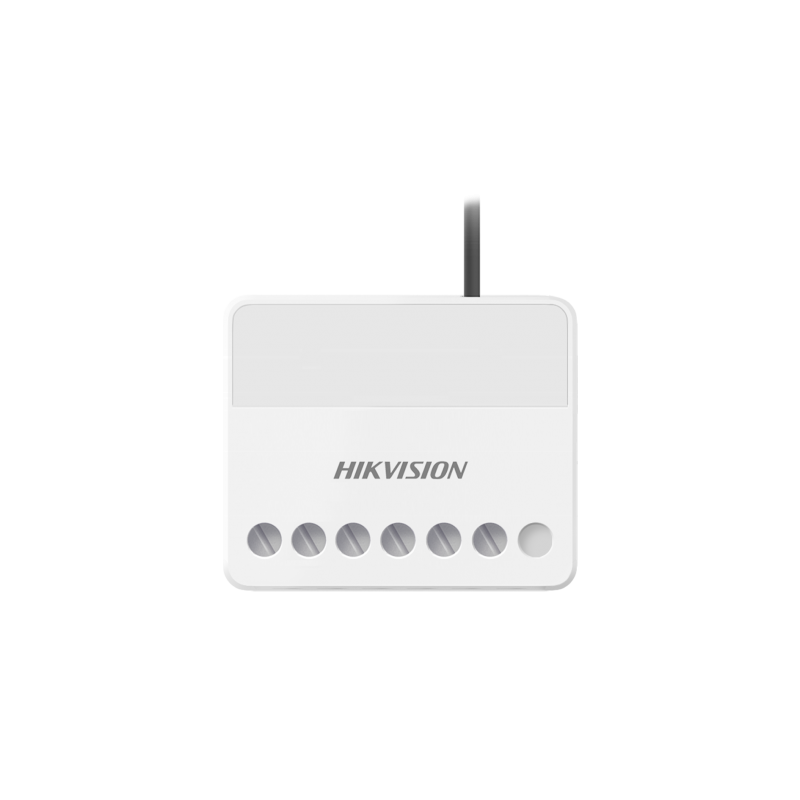

AX PRO Wall Switch DS-PM1-O1H-WE

Ax Pro Accessories
Product reference: BSDSPM1O1HWE
  • 868MHz two-way wireless communication
  • AES-128 encryption
  • LED display, show status of device and replay on/off display
  • Small case design, which can be put into hiding places easily
  • Automation operating, one button turn on/off from APP/Keyfob/Keypad
  • Setting scenarios by different events
Read more
At stores prices may vary
Price:
€43.20
€35.70 tax excl.
Favourite

Product information

Software features

  • Scenario setting: By Alarm, By Operation, By Fault, By Schedule, By Manual
  • Learning button: 1, For register

Hardware features

  • Serial port: 1, for debug

Electrical characteristics

  • Power supply: AC 100v – 240v, 50/60 HZ
  • Operation humidity 10％~90％
  • Operation temperature ﹣10℃~+55℃

Wireless transmission

  • RF frequency 868MHz
  • RF method: Two way communication
  • RF modulation: 2GFSK
  • RF distance 1600m
  • Wireless security: AES-128

Display

  • LEDs status: 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)

General

  • Installation method: Wall Mounting or Inside 86 box
  • Dimension(WxHxD) 38x25x18mm
  • Shell material: Plastic
  • Color: White
  • Weight 31.5g

Device management

  • Relay output: 1, NO/NC (AC 100~240v, Max 13A）

Features

Color White
