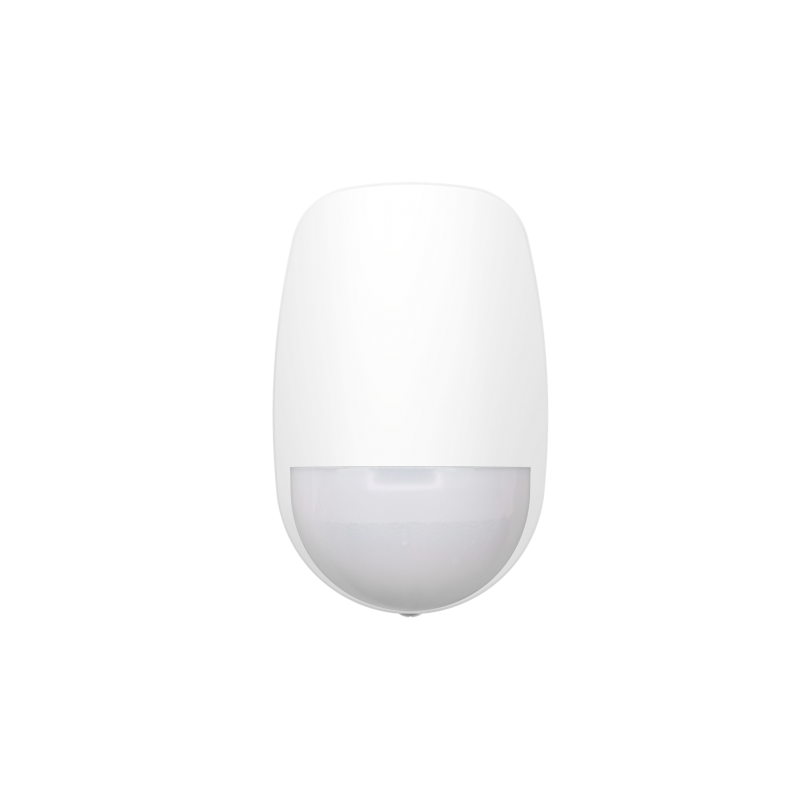

Wireless PIR Detector, pet immunity, DS-PDP15P-EG2-WE AX PRO

Ax Pro wireless detectors

Product reference: BSDSPDP15PEG2WE

Detection Range: 15m/85.9°
Up to 30 kg pet immunity
SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission

Read more

At stores prices may vary

Price:

€54.99

€45.45 tax excl.

Product information

Detection Performance

Detection Method: Passive Infrared
Detection Range 15m
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3～2m/s
Sensitivity: High; Auto; Pet
Pet Immunity 30Kg
White Light Filter 6500lux
Digital Temperature Compensation: Support
Creep Zone Protection: Support

Feature

Digital Processing: Support
Sealed Optics: Support
Tamper Protection: Front; Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support

Interface

Power Switch: Power Up Enrolling
LED Indicator: Blue (Alarm)

Transmission

Transmission Technology: Tri-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 868MHz
Transmission Security: AES-128 Encryption
Transmission Range(Free Space): 1.6Km
Frequency Hopping: Support
Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

Standard Battery Life: Up to 5 years (standby time)
Power Supply: Battery Powered
Battery Type: CR123A × 1
Typical Voltage: 3V

General

Operation Temperature -10°C to 55°C (14 °F to 131 °F)
Storage Temperature -20°C to 60°C (-4 °F to 140 °F)
Operation Humidity: 10% to 90%
Dimension(WxHxD) 65.5 mm × 103 mm × 48.5 mm
Weight 128 g
Mounting Height 1.8 m to 2.4 m
Mounting Method: Wall
Application Scenario: Indoor
Bracket: Optional Wall & Ceiling Accessory

Features

Color	White
Pet imune	Yes
