AX PRO RF Camera Module...

AX PRO RF Camera Module DS-PDCM15PF-IR for connection with sensor 2PIR-MW

AX PRO RF Camera Module DS-PDCM15PF-IR for connection with sensor 2PIR-MW

Price:

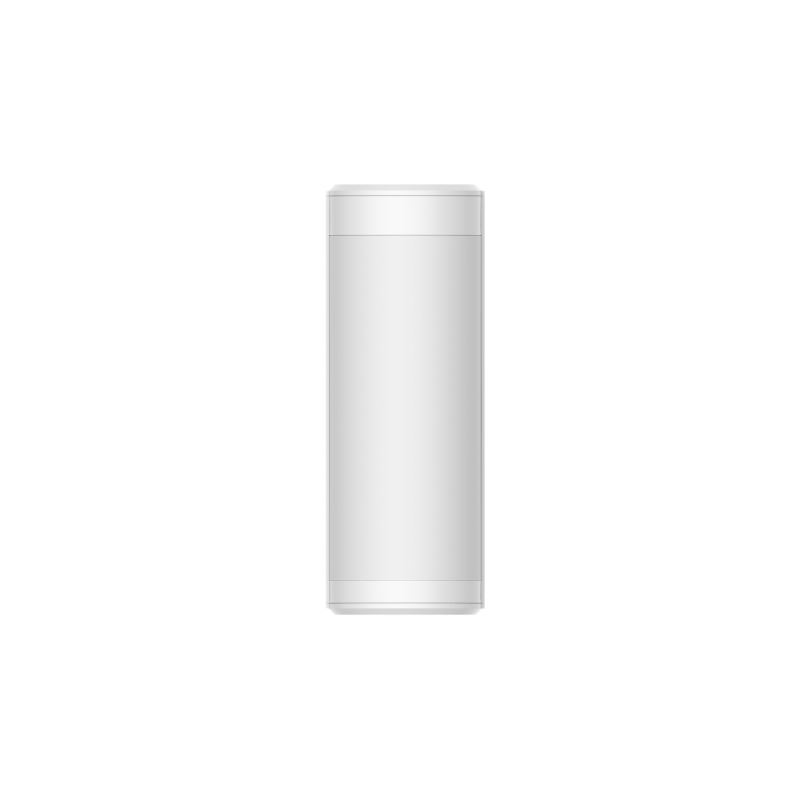

Wireless Triple Signal Detector DS-PDTT15AM-LM-WE, AX PRO

Ax Pro wireless detectors

Product reference: BSDSPDTT15AMLMWE

90°@180° adjustable coverage
IP65 weather resistance for outdoor application
Active IR anti-masking
Multiple enrollment methods and easy installation
Frequency hopping against jamming for reliable transmission

Read more

At stores prices may vary

Price:

€229.98

€190.07 tax excl.

Product information

Detection Performance

Detection Method: Passive Infrared; Microwave
Detection Range: 15 m
Detection Angle: 90° @180° adjustable
Detection Zones: 92
Detectable Speed: 0.3～2m/s
Sensitivity: Auto; Low
White Light Filter: 10000lux
Microwave Frequency: 24GHz(24.15～24.25GHz)
Pet Immunity: 40 kg
Digital Temperature Compensation: Support
Anti-masking: Support
Adaptable Coverage: Support, Pattern mask included

Feature

Digital Processing: Tri-Signal Logic
Sealed Optics: Support
Tamper Protection: Front; Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support
Anti-Sway Analytics: Support
Interface: Power Switch
Power up enrolling: LED Indicator Green(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm)

Transmission

Transmission Technology: Tri-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 868MHz
Transmission Security; AES-128 Encryption
Transmission Range(Free Space): 1.6 km
Frequency Hopping: Support
Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

Standard Battery Life: Up to 5 years (standby time)(The battery working time can be significantly reduced at low temperatures)
Power Supply: Battery powered
Battery Type: CR123A × 5
Typical Voltage: 3V

General

Operation Temperature -25°C to 60°C (-13°F to 140°F)
Storage Temperature -25°C to 60°C (-13°F to 140°F)
Operation Humidity 10% to 90%
IP Rate IP65
Dimension(WxHxD) 75 mm × 202 mm × 73 mm
Weight 600 g
Mounting Height 0.8 m to 1.2 m
Mounting Method: Wall
Application Scenario: Outdoor

Features

Color	White
Pet imune	Yes
