AX PRO Wireless LCD Keypad

Ax Pro Wireless Keypads
Product reference: BSDSPK1LTWE

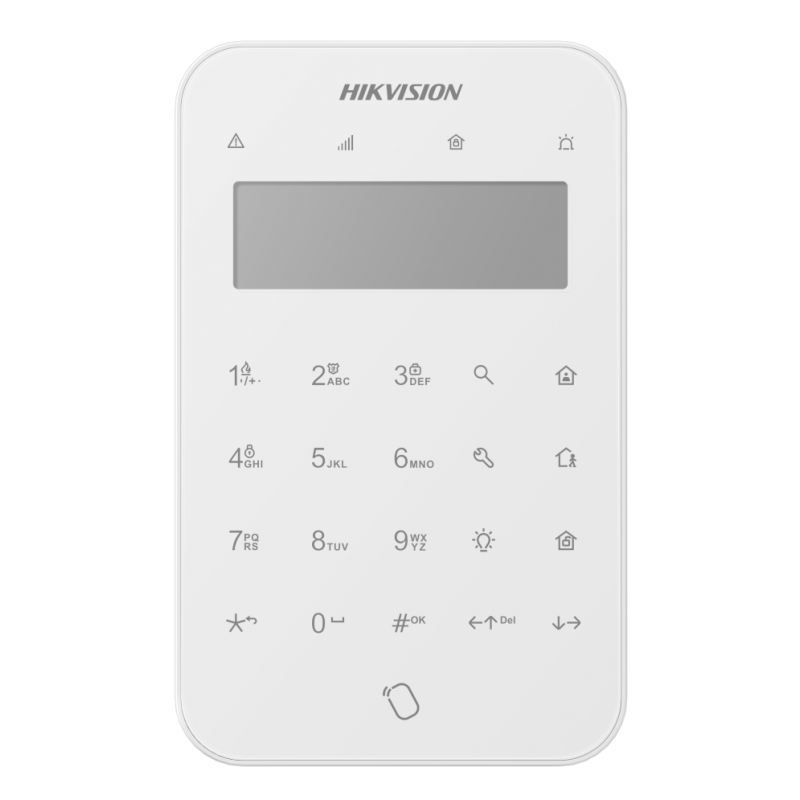

Wireless LCD Keypad

  • 868MHz two-way wireless communication
  • LCD screen and LED to indicate system status
  • System configuration through LCD screen
  • Multiple operations like stay/away arm, disarm, silent alarm, output control
  • One-Push fire alarm, panic alarm, and medical alarm
  • Full touch key design with LED backlight
  • Fully remote configurable through App
Read more
At stores prices may vary
Price:
€132.99
€109.91 tax excl.
Favourite

Product information

Features:

Hardware features

  • Tag reader built in: Supported
  • Serial port: 3
  • Tamper-Proof: Supported, front and rear
  • Buzzer: Supported
  • Power switch: Power on/off

Electrical characteristics

  • Battery type: Four CR123 batteries
  • Operation humidity: 10% to 90%
  • Operation temperature: -10 °C to 55 °C
  • Battery life span: Up to 2 years (standby time)
  • Power consumption: Quiescent current: 80uA; Max current: 300mA; Voltage: 3v

Wireless transmission

  • RF frequency 868 MHz
  • RF modulation 2GFSK
  • RF distance 1200m (open area)
  • Wireless technology: Tri-X Wireless Technology

Display

  • Numeric key: Number key: 0-9; Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left
  • LED Indicator: Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red)

Features

Color White
