AX PRO Kit DS-PWA96-Kit-WE

Ax Pro Wireless System

Product reference: BSDSPWA96KitWE

AX PRO Kit (868MHz)

DS-PWA96-M-WE x 1
DS-PKF1-WE x 1
DS-PDP15P-EG2-WE x 1
DS-PDMC-EG2-WE x 1

At stores prices may vary

Price:

€413.29

€341.56 tax excl.

Favourite

We have 1 qty.
Delivery in 1-2 business days

Product information

The AX PRO DS-PWA96-KIT-WE alarm kit is ideal solution for those looking for a simple and reliable system with enhanced communication functions.

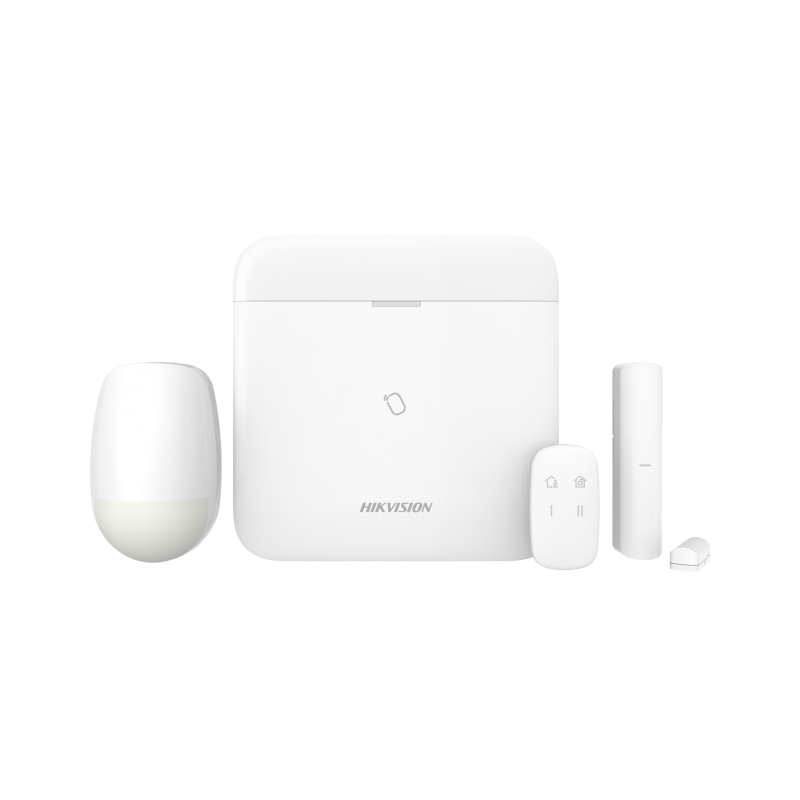

The kit includes: the "DS-PWA96-M-WE" Wireless Alarm Control Panel, the "DS-PDP15P-EG2-WE" Wireless PIR Detector, the "DS-PDMC-EG2-WE" Wireless Magnet Detector, the "DS-PKF1-WE" Wireless Remote Controller.

Number of supported wireless devices:	max. 96 pcs
Number of supported PIR Cameras:	max. 48 pcs (not included)
Zones:	32
PIR detectors included:	1 pcs, Wireless
Magnetic contact included:	1 pcs, Wireless
The RFID cards/keyfobs support:	max. 48 pcs In the kit : 3 pcs
Enclosure included:	✔
Keyboard included:	-
Timers:	2
Number of supported readers:	max. 8 pcs RFID proximity reader built-in : 1 pcs
Number of supported wireless sirens:	max. 6 pcs (not included)
Number of supported remote control keyfobs:	max. 48 pcs In the kit : 1 pcs
Users + admins:	48 (46 + 1 + 1)
Expander included :	-
Wireless:	868 MHz
Built-in modules:	Wi-Fi module IEEE 802.11 b/g/n 2.4 GHz,
	LAN 10 / 100 Mbps,
	3G/4G - It supports push messages, SMS text notifications, and audio notifications via the phone
	2 x SIM socket
Access from PC:	iVMS-4200 application
Mobile phones support:	✔
Main features:	Bidirectional communication - AES 128-bit data encryption
	Support for video events via a mobile client and email
	Configuration via the www client, mobile client or software
	Compliance with the SIA-Contact ID protocol
	LED indication
Protection class (Grade):	EN50131 Security Grade 2
Housing:	Plastic
Internal backup battery:	Li-Ion battery 4520 mAh, Battery backup - 12 h
Power supply:	100 ... 240 V AC (cable included)
Operation temp:	-10 °C ... 55 °C
Weight:	0.56 kg
Dimensions:	170 x 170 x 39 mm
Supported languages:	English
MAGNETIC CONTACT:
Detection:	Opening the door or window
Alarm signaling:	Signal to control panel
Frequency range:	868 MHz
Radio communication range (at open area):	max. 1600 m
Alarm inputs:	NO, NC
Protection class (Grade):	EN50131 Security Grade 2
Environment class:	Grade 2
Power supply:	1 x 3 V CR123A - included
Backup time:	~ 5 years
Operation temp:	-10 °C ... 55 °C
Weight:	0.06 kg
Dimensions:	103 x 23 x 23 mm - Transmitter
	37 x 14 x 11 mm - magnet
PIR DETECTOR:
Application:	Indoor
Frequency range:	868 MHz
Radio communication range (at open area):	max. 1600 m
Sensor type:	Passive Infra Red (PIR)
Detection range / Detection angle:	15 m / 85.9 °
Sensitivity adjustment:	Automatic
Pet immunity:	≤ 30 kg
Digital temperature compensation:	✔
Alarm output:	Wireless
Target speed range:	0.3 ... 2 m/s
Protection class (Grade):	EN50131 Security Grade 2
Power supply:	1 x 3 V CR123A - included
Battery lifetime:	~ 5 years
Operation temp:	-10 °C ... 55 °C
Weight:	0.12 kg
Dimensions:	66 x 103 x 49 mm
REMOTE CONTROLLER:
Standard:	868 MHz
Radio communication range (at open area):	max. 900 m
In the kit:	1 pcs
Control keys:	4
LED indication:	✔
Power supply:	1 x 3 V CR2032 - included
Battery lifetime:	~ 3 years
Operation temp:	-10 °C ... 55 °C
Weight:	0.016 kg
Dimensions:	63 x 35 x 11 mm

Features

Color

White
