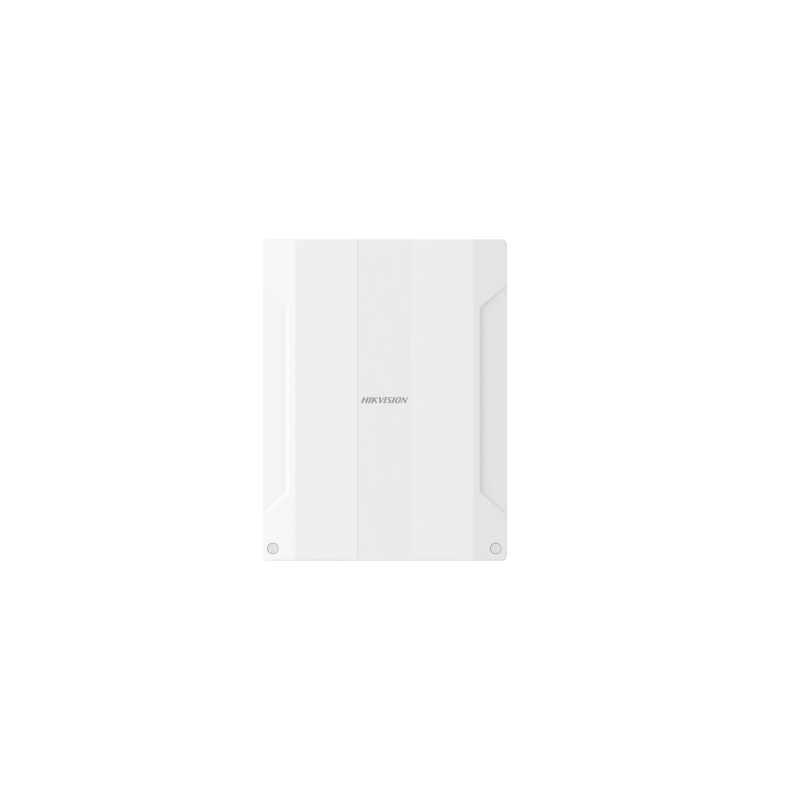

Control panel AX PRO with wired zones DS-PWA96-M2H-WE, 96 zones, 2xSIM

Ax Pro Wireless System

Product reference: BSDSPWA96M2HWE

TCP/IP, Wi-Fi, and 3/4G network
New generation wireless protocol: Tri-X/Cam-X
Long RF transmission distance
Two-way communication with AES-128 encryption
Connects up to 96 zones/outputs (Including 48 PIRCAMs & onboard Wired Zones/Outputs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads.
Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
Voice prompt

Read more

At stores prices may vary

Price:

€303.00

€250.41 tax excl.

Product information

Features:

Configuration via Web client, mobile client, and Convergence Cloud
Hik-Connect and Hik-ProConnect configuration depends on the user access level
Pushes alarm notification via messages or phone calls
Views live videos from Hik-Connect
Alarm video clips via emails and APP
Supports LED indicator to indicates system status
SIA-DC09 protocol, and supports both Contact ID and SIA data format
Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Software features

Tag: 48
Area: 32
Zones: Up to 96 (including 48 PIRCAMs & 16 onboard Wired Zones & 2 onboard Wired Outputs)
Onboard video clips: 4
Installer: 1
User: 46
Admin: 1
Voice Prompt: Supported
Loudspeaker built in: Supported
Tag reader built in: No
Memory Log stored: 5000
Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Firmware upgrade: APP/Web Portal
Arm modes: Away/Stay
Automatic Arm/Disarm Timers: Supported
Forced Arming with Open Zones: Supported
Diagnostics via the APP or Web: Supported
ARC protocol: SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK); Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685); Supports video verification and remote control
User APP for operating: Supported
Installer APP for programming: Supported
Web server for maintenance (offline configuration): Supported

Hardware features

Power Output: 2 onboard (12v, total 1A)
RS232 output: Supported
SIM slot: Dual

RF transmission

Two-way Wireless Communication: Support
RF Frequency: 868Mhz
Wireless Security: Frequency Hoping 128 AES Encryption
3/4G on board: Supported

Electrical characteristics

Power supply: Built in power supply
Battery type: 12v 7Ah Storage battery (Battery is not included by default)
Battery life span: Up to 36 hours

Wireless transmission

Wired network: Supported
Wi-Fi Standard: Supported

Display

LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

Operation temperature: -10 °C to 40 °C
Shell material: Plastic
Dimension(WxHxD): 261*199*86.4mm
Weight: 1083g (No battery)
Color: White

Device management

Keyfob: 48
Wireless sounder: 6 (3 internal+3 External)
Keypad: 8 (Including Tag reader)
Wireless Repeater: 4
Multi Transmitter: 5
PIR Cam: Supported

Features

Color

White
