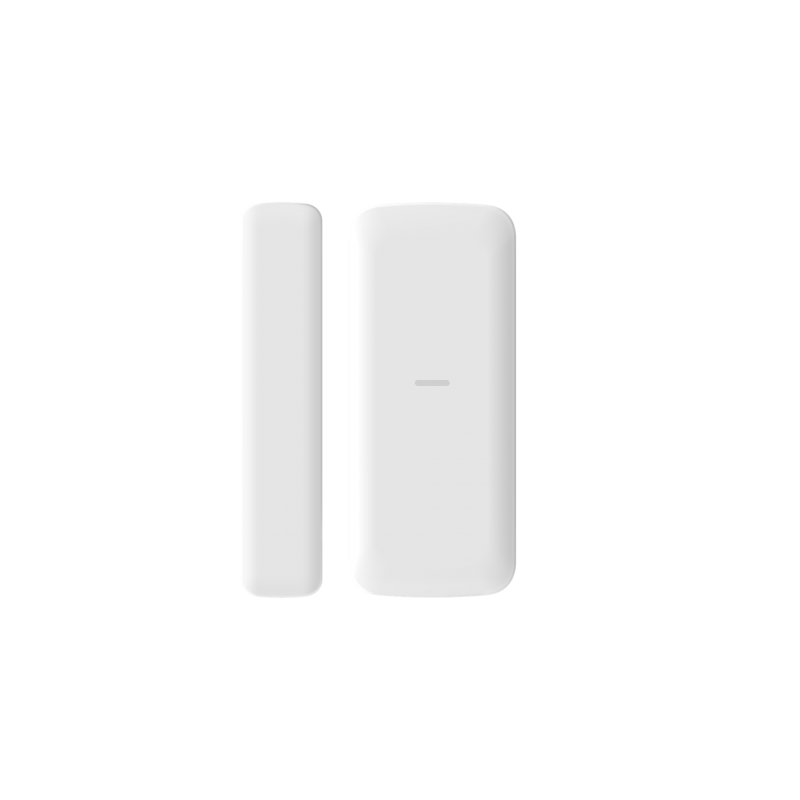

AX PRO Wireless Slim Magnet Detector DS-PDMCS-EG2-WE Indoor

Ax Pro Wireless System

Product reference: BSDSPDMSCSEG2WE

Slim design for an unobtrusive (unnoticeable) installation
Fully remote configurable through APP
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission

Read more

At stores prices may vary

Price:

€27.49

€22.72 tax excl.

Product information

Detection Performance

Detection Method: Opening Contact
Detection Gap: 52 mm Max

Feature

Digital Processing: Support
Tamper Protection: Front; Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support

Interface

Power Switch: Power up enrolling
LED Indicator: Blue (alarm)

Transmission

Transmission Technology: Tri-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 868MHz
Transmission Security: AES-128 Encryption
Transmission Range (Free Space): 1 km
Frequency Hopping: Support
Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics

Standard Battery Life: Up to 3 years (standby time)
Power Supply: Battery powered
Battery Type: CR2450 x 1
Typical Voltage: 3V

General

Operation Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operation Humidity 10% to 90%
Dimension(WxHxD) 29 mm × 69 mm × 10 mm; 14 mm × 69 mm × 10 mm
Weight 38 g
Mounting Method: Wall-mount (The device only supports wooden structure installation and cannot be installed on metal surface)
Application Scenario: Indoor

Features

Color

White
