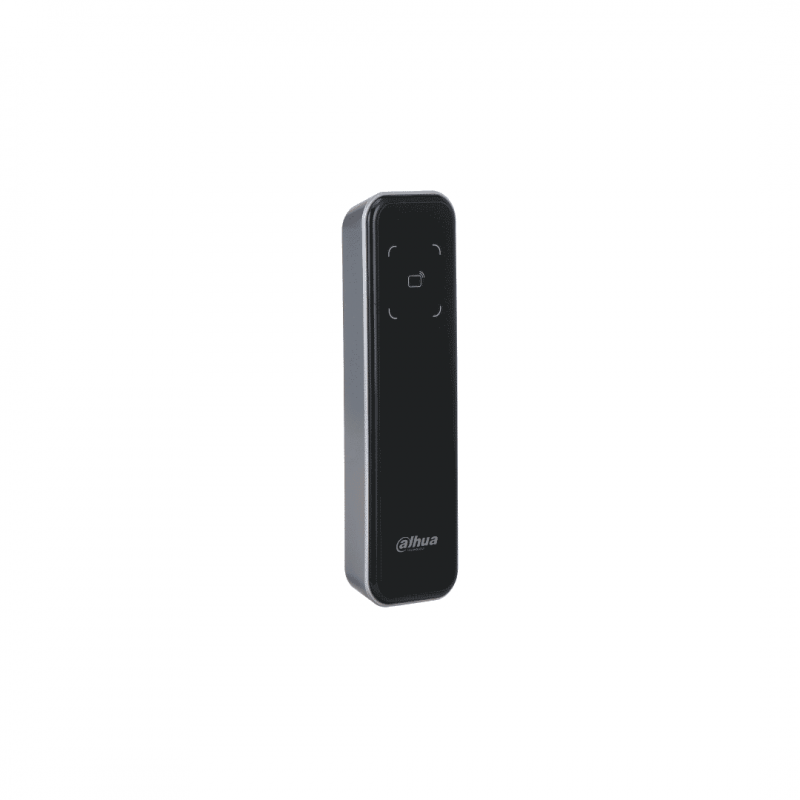

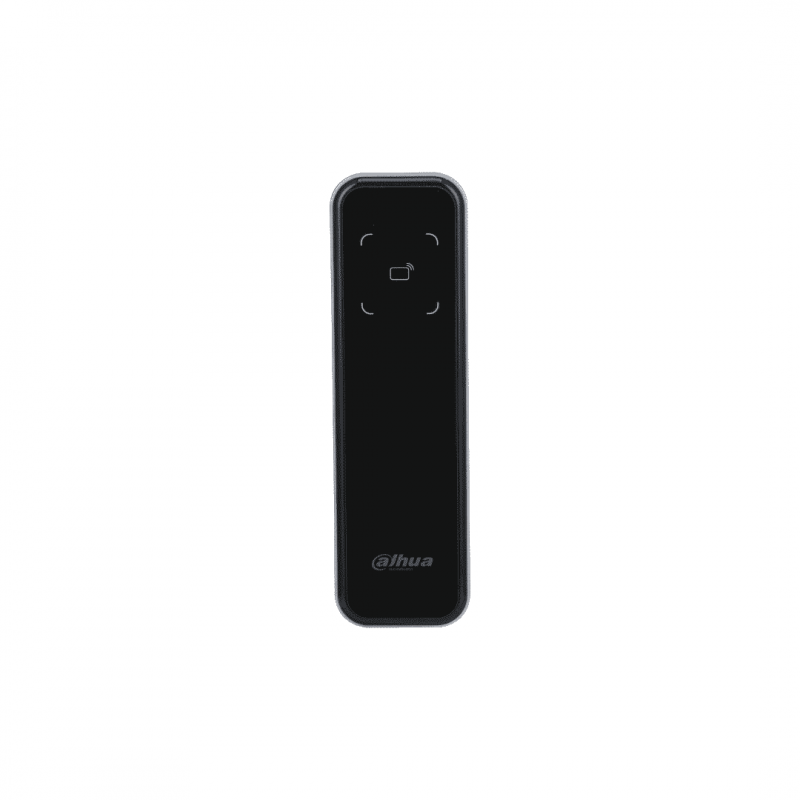

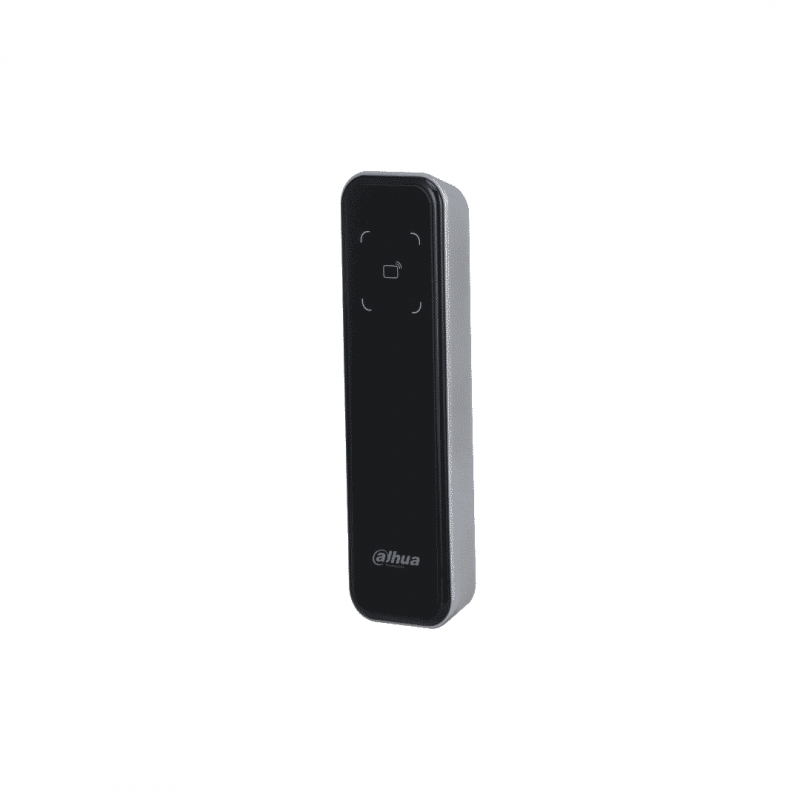

Dahua Simple and Bluetooth Card Reader ASR2200A-B

Card Readers

Product reference: PKASR2200A-B

Dahua Card Swiping, Bluetooth card Reader

> PC material, tempered glass panel and IP66, suitable for indoor and outdoor use.

> Contactless card reading for IC cards (Mifare cards).

> Unlock through card swiping and Bluetooth.

> Communicates through the RS-485 port, Wiegand port, and Bluetooth.

> Prompts using the buzzer and indicator light.

> Supports the anti-tampering alarm.

> The built-in watchdog program can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment.

> All the connection ports have overcurrent and overvoltage protection.

> Works with the DMSS mobile client and ASC3202B.

At stores prices may vary

Price:

€89.54

€74.00 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

Dahua Simple and Bluetooth Card Reader ASR2200A-B

Suitable for a variety of scenes including office buildings, schools, factories, residential areas, the financial sector, insurance industry, government departments, maritime safety bureaus and CBD business centers.

Basic

Product Type

Card reader

Buzzer

Yes

Casing Material

Tempered glass/PC

Function

Unlock Mode

Card swiping/Bluetooth

Card Type

IC card

Bluetooth

Yes

Performance

Response Time

0.1 s

Card Reading Distance

0 cm–5 cm (0"–1.97")

Bluetooth Distance

1.Short-range: ≤0.2 m (0.66 ft).

2.Mid-range: ≤2 m (6.56 ft).

3.Long-range: ≤10 m (32.81 ft).

The Bluetooth unlock range might differ depending on models of your phone and the environment.

Port

RS-485

Wiegand

1 output channel

Alarm

Tamper Alarm

Yes

General

Power Supply

12 VDC, 0.5 A

Protection

IP66

Power Consumption

Standby ≤0.9 W, working ≤1.7W

Product Dimensions

135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (H × W × D)

Packaging Dimensions

195 mm × 75 mm × 52 mm (7.68" × 2.95" × 2.05") (H × W × D, 1 in inner carton)
415 mm × 400 mm × 230 mm (16.34" × 15.75" × 9.06") (H × W × D, carton)

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

5%–95% (RH), non-condensing

Operating Environment

Outdoor

Gross Weight

0.16 kg (0.35 lb)

Installation

Surface Mount

Certifications

CE; FCC
