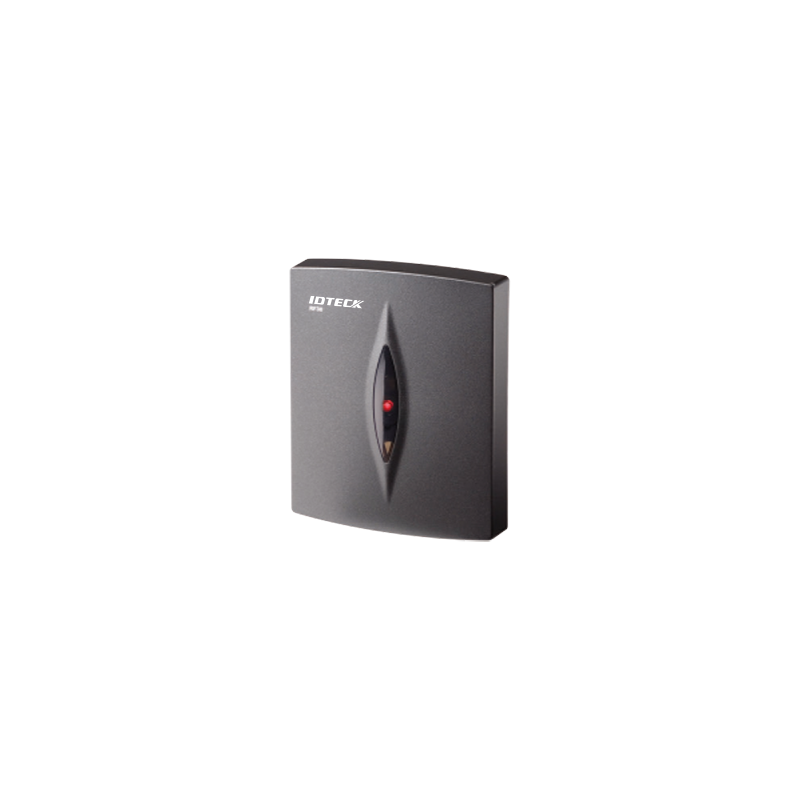

Proximity reader (Wiegand-26, RS232) RF30 125KHz

Card Readers
Product reference: PKRF30Mot
  • Card reader;
  • Active and passive cards supported;
  • Wiegand-26, RS232 protocols;
  • PSK modulation;
  • Protection IP66 and vandal-resistant IK08;
  • Dimensions: 480x570x80 mm;
  • Short-circuit protection.
Read more
At stores prices may vary
Price:
€201.97
€166.92 tax excl.
Favourite

Product information

Card reader 125KHz.

Specifications:

Reading frequency 125 KHz
Reading time 30ms
Power supply / current draw DC 12V / max. 180mA
Input ports 1EA: external LED control / 1EA: external buzzer
Output interface format  Wiegand-26, RS232
Compatible Access controllers AII IDTECK controllers; third-party controllers
Protection rating IP66, IK08
Reverse polarity protection Yes
Mounting Wall mount
Dimensions 480x570x80mm
Weight 370 g
Operating temperature -35°C ~ +65°C
Operating humidity 10% ~ 90% (non-condensing)
Certificates FCC, CE, KCC, RoHs

Features

Type Controlled by a controller
