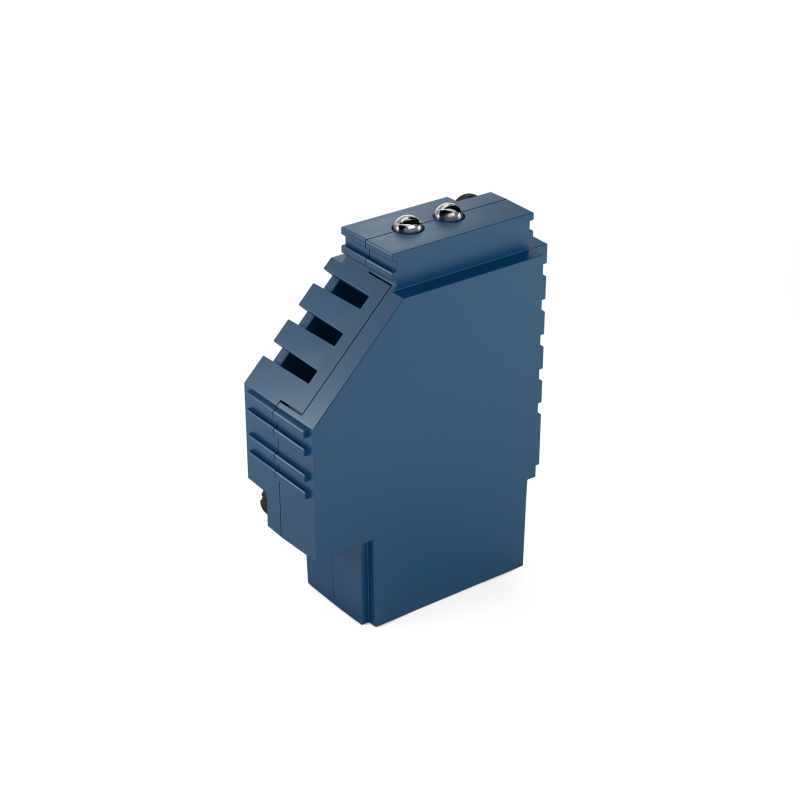

DCD module changeable module for LED strips, DC devices (for Atom Hydrogen)

Changeable Modules

Product reference: DCDmodule

DCD module changeable module (only for Atom Hydrogen) for switching on and adjusting the brightness of LED strips, furniture lamps and other DC devices.

At stores prices may vary

Price:

€49.61

€41.00 tax excl.

Favourite

Product information

DCD Module features:

Best solution to control LED strips
Ability to combine for joint control of RGB/W LED strips
Silent switching of DC loads
Connected devices power consumption data
Pulse width modulation (PWM) control capabilities

Technical Specifications

Electrical characteristics
DC switching voltage	0 - 48V
Max switching current	4A
Max inrush current	40A
Dimming capabilities	PWM (Up to 30KHz)
Built-in current sensors to monitor load operation	✔
Indication
Output status LED	✔
Output type indication LED	✔
General characteristics
HxWxL	32 x 43 x 13mm
Weight	10,3 g

Manufacturer

Control all devices and systems in your home.

Turn regular devices into smart. i3Engineering solution is an ecosystem into which you can integrate lots of “regular” devices and engineering systems, and it is us who make them smart. Any electrician will be able to install the system and configure it using the i3 Home app. And the intuitive interface allows users to change settings in minutes.
