R Module changeable module for controlling low-power loads

Changeable Modules

Product reference: Rmodule

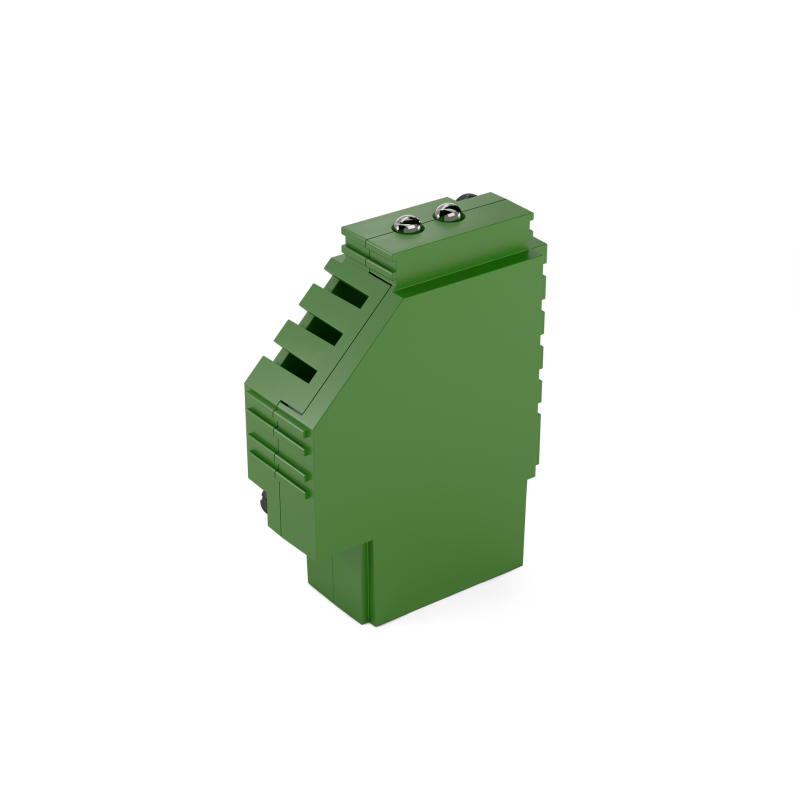

R Module changeable module universal relay module for controlling low-power loads, devices with pulse inputs and for implementing a "dry contact" type output.

At stores prices may vary

Price:

€45.98

€38.00 tax excl.

Favourite

Product information

R Module features:

Best for controlling low power loads
Connected devices power consumption data
Modification with reduced switching noise
Suitable for DC and AC loads
Ability to work in impulse mode to give short-term commands or signals

Technical Specifications

Electrical characteristics
AC switching current and voltage	5A 250V AC
DC switching current and voltage	5A 30V DC
Max inrush current	50A
Dimming capabilities	✖
Built-in current sensors to monitor load operation	✔
Indication
Output status LED	✔
Output type indication LED	✔
General characteristics
HxWxL	32 x 43 x 13mm
Weight	10,3 g

Manufacturer

Control all devices and systems in your home.

Turn regular devices into smart. i3Engineering solution is an ecosystem into which you can integrate lots of “regular” devices and engineering systems, and it is us who make them smart. Any electrician will be able to install the system and configure it using the i3 Home app. And the intuitive interface allows users to change settings in minutes.
