Technical Specification

Model

DHI-VTO4103F-MB1

System

Main Processor

Embedded Processor

Button Type

Mechanical

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (provides power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (provided by other modules)

Installation

Flush Mount; Surface Mount

Product Dimensions

100 mm × 50.0 mm × 30.50 mm (3.94" × 1.97" × 1.20")

Protection

IK07; IP65 (silicone sealant is needed for installation)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Power Consumption

≤0.5 W

Gross Weight

0.18 kg (0.40 lb)

Technical Specification

Model

DHI-VTO4103F-MB2

System

Main Processor

Embedded Processor

Button Type

Mechanical

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (provides power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (provided by other modules)

Installation

Flush Mount; Surface Mount

Product Dimensions

100 mm × 50.0 mm × 30.50 mm (3.94" × 1.97" × 1.2")

Protection

IK07; IP65(silicone sealant is needed for installation)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Power Consumption

≤0.5 W

Gross Weight

0.17 kg (0.37 lb)

Technical Specification

Model

DHI-VTO4103F-MB5

System

Main Processor

Embedded Processor

Button Type

Mechanical

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (provides power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (provided by other modules)

Installation

Flush Mount; Surface Mount

Product Dimensions

100 mm × 100 mm × 30.50 mm (3.94" × 3.94" × 1.2")

Protection

IK07; IP65(silicone sealant is needed for installation)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Power Consumption

≤0.5 W

Gross Weight

0.31 kg (0.68 lb)

Technical Specification

Model

DHI-VTO4103F-MDB2

System

Button Type

Mechanical

Number of Buttons

2

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (Provide power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (Provided with power by other modules)

Certifications

CE EMC; CE LVD

Product Dimensions

100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02")

Protection

IK07; IP65 (Silicone sealant is needed for installation)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Environment

Outdoor

Operating Altitude

0 m–3,000 m (0 ft–9,842.52 ft)

Power Consumption

≤0.2 W (standby), ≤0.6 W (working)

Gross Weight

0.23 kg (0.51 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75% (RH)

Technical Specification

Model

DHI-VTO4103F-MDB4

System

Button Type

Mechanical

Number of Buttons

4

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (Provide power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (Provided with power by other modules)

Certifications

CE EMC; CE LVD

Product Dimensions

100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02")

Protection

IK07; IP65 (Silicone sealant is needed for installation)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Environment

Outdoor

Operating Altitude

0 m–3,000 m (0 ft–9,842.52 ft)

Power Consumption

≤0.2 W (standby), ≤0.6 W (working)

Gross Weight

0.24 kg (0.53 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75% (RH)

Technical Specification

Model

DHI-VTO4103F-MDB10

System

Button Type

Mechanical

Number of Buttons

10

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (Provide power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (Provided with power by other modules)

Certifications

CE EMC; CE LVD

Product Dimensions

100.0 mm × 100.0 mm × 26 mm (3.94" × 3.94" × 1.02")

Protection

IK07; IP65 (Silicone sealant is needed for installation)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Environment

Outdoor

Operating Altitude

0 m–3,000 m (0 ft–9,842.52 ft)

Power Consumption

≤0.2 W (standby), ≤0.6 W (working)

Gross Weight

0.33 kg (0.73 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75% (RH)

Technical Specification

Model

DHI-VTO4103F-MF

System

Main Processor

Embedded Processor

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (provides power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (provided by other modules)

Installation

Flush Mount; Surface Mount

Product Dimensions

100 mm × 100 mm × 38.50 mm (3.94" × 3.94" × 1.52")

Protection

IK07; IP65 (silicone sealant is needed for installation)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Power Consumption

≤0.5 W

Gross Weight

0.33 kg (0.73 lb)

Technical Specification

Model

DHI-VTO4103F-MI

Performance

Casing Material

Aluminum

General

Appearance Color

Silver

Power Supply

5 VDC (Provided with power by other modules)

Certifications

CE

Product Dimensions

100.0 mm × 100.0 mm × 28.5 mm (3.94" × 3.94" × 1.12")

Protection

IK07;IP65(silicone sealant is needed for installation)

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Environment

Outdoor

Operating Altitude

0 m–3,000 m (0 ft–9,842.52 ft)

Power Consumption

≤0.5 W

Gross Weight

0.28 kg (0.62 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75% (RH), non-condensing

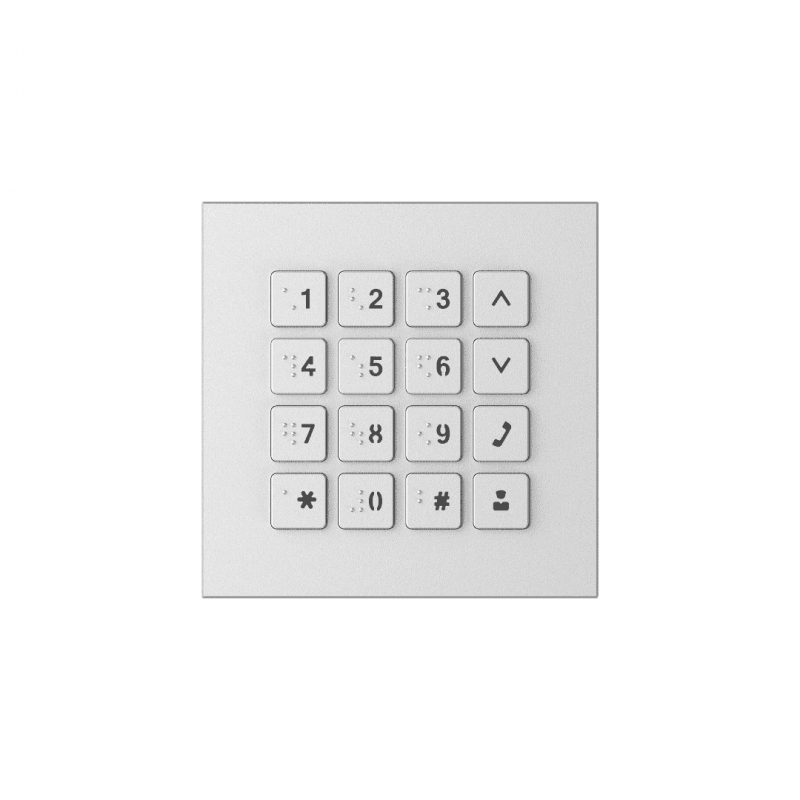

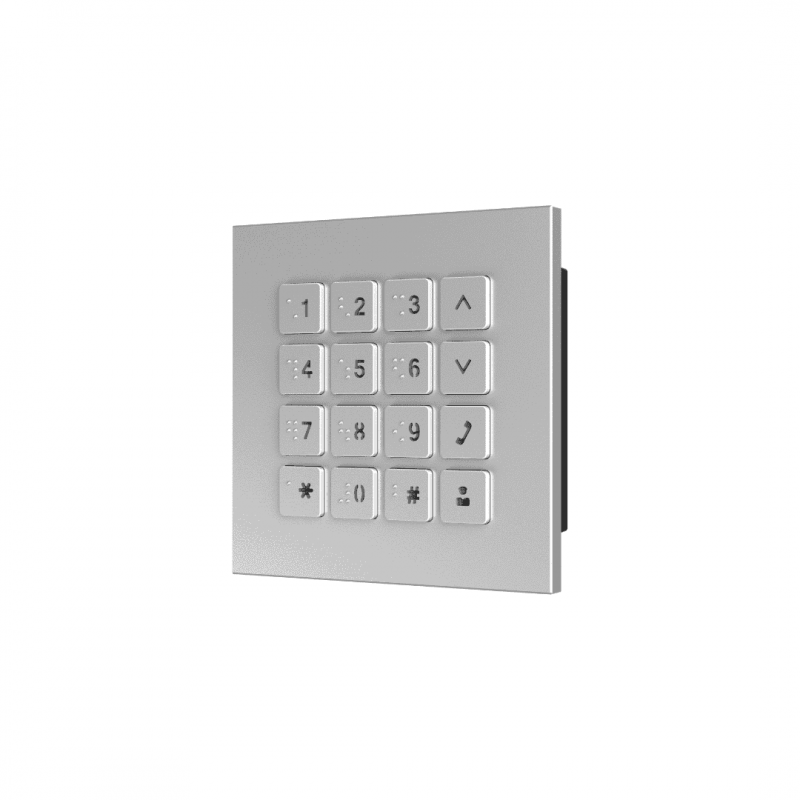

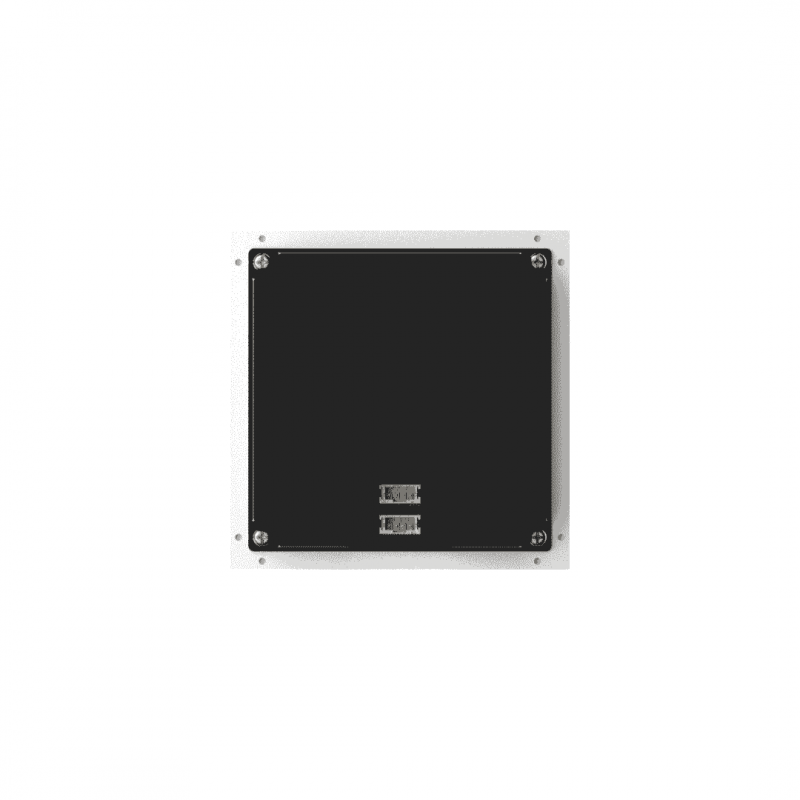

Technical Specification

Model

DHI-VTO4103F-MK

System

Main Processor

Embedded Processor

Button Type

Mechanical

Performance

Casing Material

Aluminum alloy

Port

Power Output

5 VDC (provides power for other modules)
