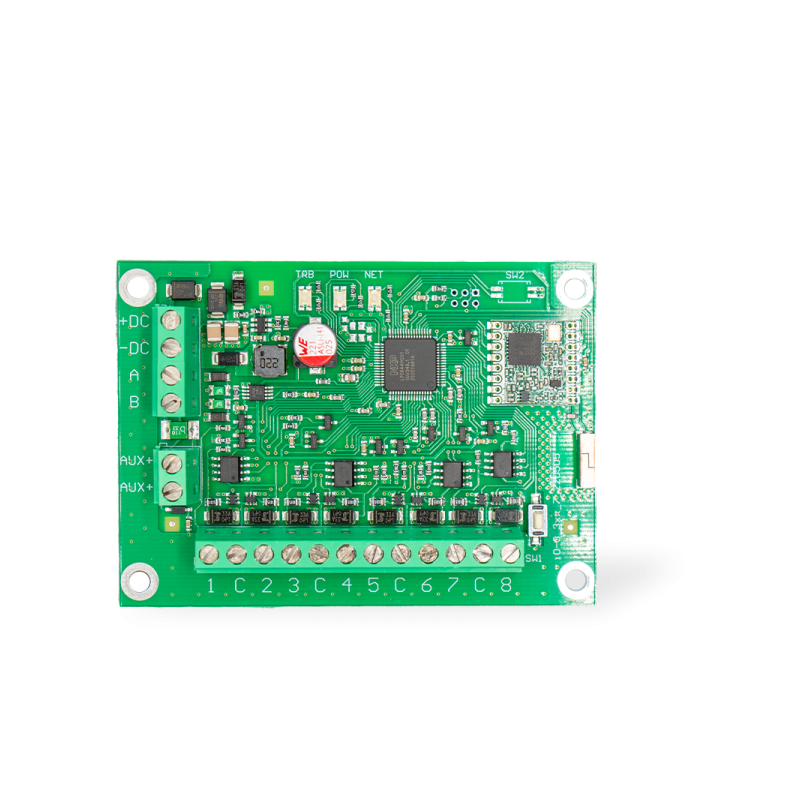

iO8-LORA 4F Input and output expander 433MHz

Control panels and extenders

Product reference: BSiO8LoRa4F

iO8-LORA 4F is expander for FLEXi SP3 control panel and TRIKDIS LoRa series modules, it increase the number of inputs and outputs in a device.

The operating range is up to 2000 m.

LoRa (from “Long-Range”) is a physical proprietary radio communication technique.

At stores prices may vary

Price:

€64.28

€53.13 tax excl.

Communication:

Line-of-sight wireless range up to 2000 m.
Up to 8 iO-8-LORA 4F wireless expanders can be connected to the “FLEXi” SP3 control panel.

Inputs and outputs:

8 I/O terminals, each one can be set as an input (IN) or output (OUT). Input (IN) types: ATZ, EOL, NC, NO. Different value of resistors can be used in EOL and ATZ type circuits.

Connection:

The iO-8-LORA 4F wireless expander is connected to the “FLEXi” SP3 control panel via the RF-LORA 4F transceiver.

Parameter	Description
Transmission frequency	433 MHz
Modulation type	LORA
Power supply voltage	12 V DC
Current consumption	Up to 50 mA (stand-by) Up to 120 mA (short-term, while sending)
Report encryption	Yes
Range in open space	Up to 2000 m
Dual purpose terminals [I/O]	8, IN or OUT function selected during programming. When IN is selected, available types: NC, NO, EOL, EOL_T, 3EOL, ATZ, ATZ_T. When OUT is selected, the terminal becomes open collector (OC) type with up to 100 mA current
Operating environment	Temperature from –20 °C to +50 °C, relative humidity – up to 80% at +20 °C
Dimensions	65 x 90 x 12 mm
Weight	80 g
