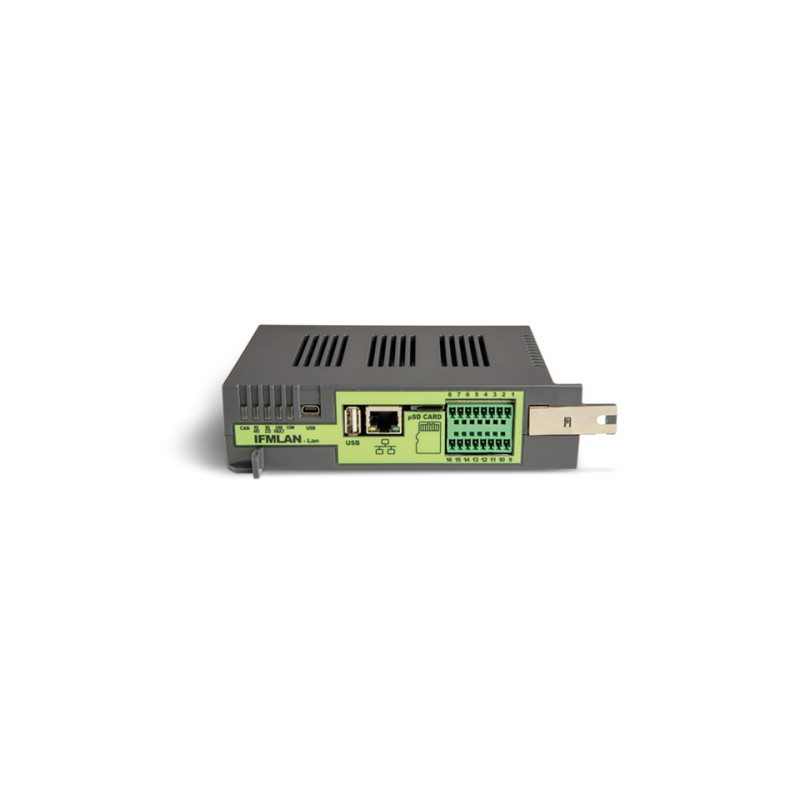

Evacuation System Control Panel Harper Network Server Module OHMCMLAN

Control Panels Harper

Product reference: PSOHMCMLAN

Network module for Harper Manager and Harper Manager XL control panels;
A network server for controlling, managing and maintaining the system.

In manufacturer warehouse
Ask

Product information

Module for advanced TCP-IP functionality. It allows a second connection of the control panel to the Ethernet network and provides the following services:

Web-server for control, management and maintenance of the plant

description
	Product range	HARPER Manager
	Product type	Supervision control panel
technical specifications	Installation	Mounts to wall and 19” rack enclosures
	Power supply	220/230Vac, 50-60Hz
	Power consumption	20 VA
	Battery	2 x Pb 12V 7Ah
	Insulation class	I
	Additional info	Manages up to 14 loops and up 240 devices each loop
		Manages up to 80 logical groups
		7” touchscreen display with intuitive graphic interface
		Topological view of system
		Ethernet protocol TCP/IP with web server
		IP and RTU (485) Modbus
		Brightness adjustment of devices
		On and Off control of maintained emergency luminaires
		Complete time scheduling programmability for tests
		Non-volatile memory for registered events and performed tests
	Max loop length	2000 m (with two-core twisted and shielded cable)
	IP grade	IP30
	Compliant to standards	UNI 11222, EN 50172
dimensions (mm)	Width	432
	Height	583
	Depth	187

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
