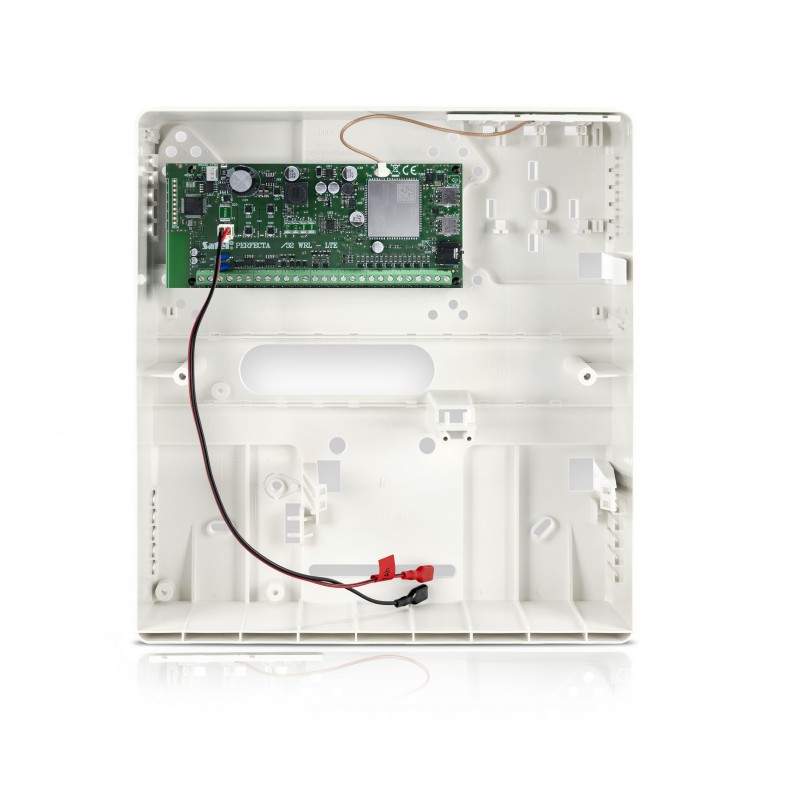

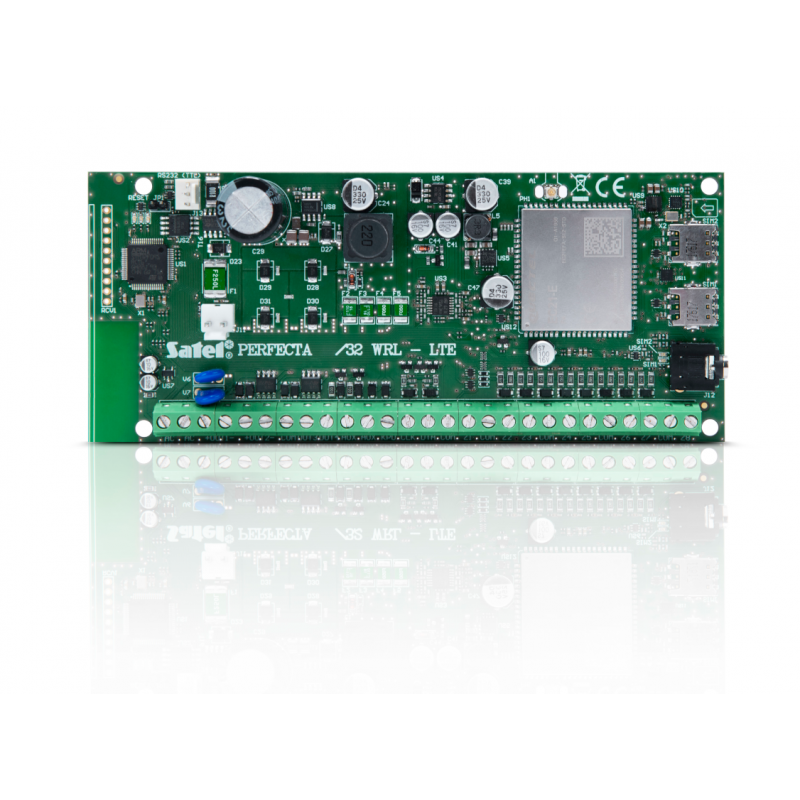

PERFECTA 32 LTE Alarm control panel

Control panels

Product reference: CEPERFECTA 32 LTE SE

The PERFECTA alarm control panels are designed to protect small and medium-sized premises such as apartments, single-family houses, segments in terraced houses, offices, small businesses etc. The control panels are characterized by simple configuration as well as easy and intuitive operation using keypads. The alarm system functions can also be controlled remotely using the PERFECTA CONTROL application for mobile devices and keyfobs working in the 433 MHz frequency band.

A cellular phone with support for LTE* data transmission is used in the PERFECTA 32 LTE model. It enables operation with a mobile application with PUSH notification capability, remote system configuration from the PERFECTA Soft program, event reporting , voice messaging, SMS control and audio verification .

At stores prices may vary

Price:

€225.63

€186.47 tax excl.

Favourite

We have 1 pcs
Delivery in 1 business days

Product information

Voice messages

Event log

3584

Partitions

Timers

Board dimensions

160 x 68 mm

Operating temperature range

-10…+55°C

Supply voltage (±15%)

18 V AC, 50-60 Hz

Standby mode current consumption

170 mA

Max. current consumption

570 mA

Weight

145 g

Maximum humidity

93±3%

Battery failure voltage threshold (±10%)

11 V

Battery cut-off voltage (±10%)

10,5 V

Environmental class according to EN50130-5

Maximum current consumption from the battery

430 mA

Programmable wired inputs

Maximum number of programmable inputs

Programmable wired outputs

Maximum number of programmable outputs

Supplying outputs

Communication buses

Keypads

up to 4

Security grade according to EN 50131

Grade 2

Recommended transformer

40 VA

Users

Current-carrying capacity of KPD output

500 mA / 12 V DC

Output voltage range

10,5 V…14 V DC

Battery charging current

500 mA

Power supply output voltage

12 V DC ±15%

Telephone numbers for notification

Power supply output current

2 A

Low current programmable outputs rating

25 mA / 12 V DC

Current-carrying capacity of programmable high-current outputs

1000 mA / 12 V DC

AUX output

500 mA / 12 V DC

Standby current draw from battery

130 mA

Features

Terminals	8
Partitions	2
