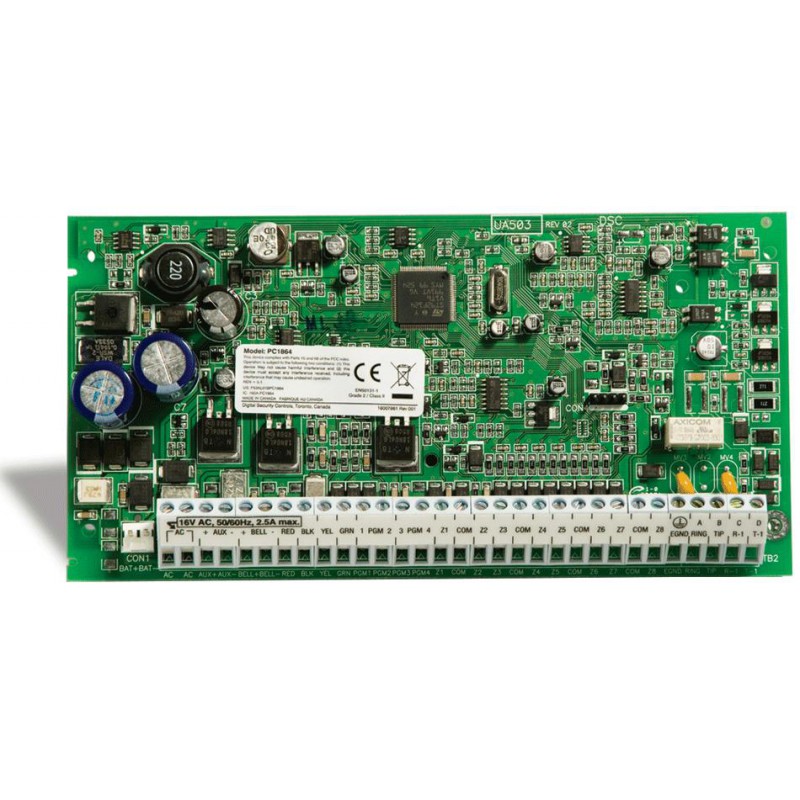

Security alarm control panel, 8-64 zones, PC1864

Control Panels

Product reference: CE1864

8 on-board zones;
64 hardwired zones (7xPC5108);
32 wireless zones;
4 PGM outputs: expandable to 14 (PC5204, PC5208);
8 keypad zones supported;
8 partitions;
500-event buffer;
CP-01 compliant.

Read more

At stores prices may vary

Price:

€70.71

€58.44 tax excl.

In manufacturer warehouse
Ask

Product information

Flexible Zone Configuration:

8 fully programmable zones (in control panel);
32 access codes: 32 user, 1 system master;
expandable to 64 zones;
normally closed, Single EOL, or Double EOL zone supervision;
8 partitions.

Audible Alarm Output:

700mA supervised bell output (current limited at 3 amps), 12 VDC;
steady or pulsed output.

EEPROM Memory:

will not lose programming or system status on complete AC and battery failure.

Programmable Outputs:

up to 14 programmable outputs, 23 programmable options;
three low current (50 mA) PGM outputs on main panel;
one high current (300 mA) PGM output on main panel;
eight additional low current (50 mA) PGM outputs available using the PC5208 module;
four high current (500mA) PGM outputs available using the PC5204 module.

Features

Terminals	64
Partitions	8

Sertificates
