Low-profile C50 SBK detector base, black

Price:

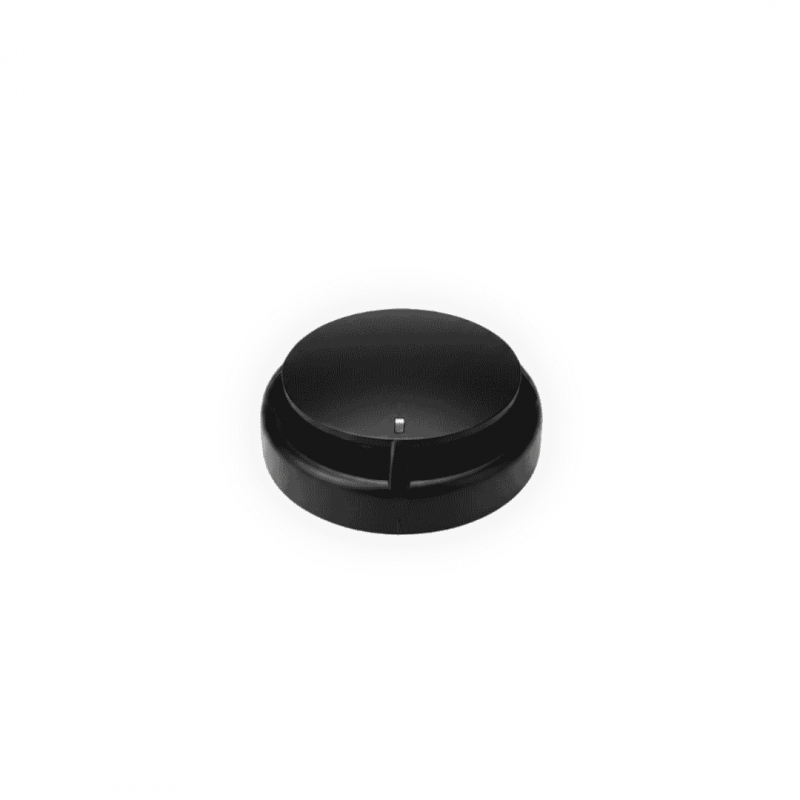

C50 SBK conventional smoke detector, black color

Conventional Fire Detection Systems

Product reference: DDC50SBK

C50S is a conventional smoke detector designed for reliable fire detection in various environments.
Its low-profile design (under 42 mm height) allows discreet ceiling installation.
The device features simple LED indication for standby, alarm, and contamination status.
It offers easy installation with no polarity required, ensuring fast and simple wiring.
Compatible with the C50 system family and supports flexible detector combinations.

At stores prices may vary

Price:

€25.00

€20.66 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

C50 SBK conventional smoke detector, black color.

The C50S smoke detector belongs to the C50 family, developed using advanced electronic technology and improved detection algorithms.
It features a refined 3D structure that increases resistance to environmental dirt and ensures stable performance.

The detector supports connection to a remote action indicator.
LED status indication:
– standby: single flash every 10 seconds
– contamination: double flash every 10 seconds
– alarm: continuous indication

It can be installed with either a low base or a high base for 20 mm conduit.
All C50 components are interchangeable and made of white heat-resistant ABS material.

The device is certified by AENOR according to EN 54-7 and complies with EU Construction Products Regulation (EU) 2024/3110.

Technical Features
Power supply	12–30 V, non-polarity
Standby current	35 µA (at 18 V)
Alarm current	30 mA (at 18 V)
Activation signal	Red LED light
Remote indicator	Yes
Humidity	20–95% RH
Operating temperature	–10 °C to +50 °C
Storage temperature	–10 °C to +55 °C
Sensitivity	EN 54-7
Protection class	IP20
Coverage area	104 m² (subject to local regulations)
Installation height	up to 15 m (subject to local regulations)

Features

Color

Black
