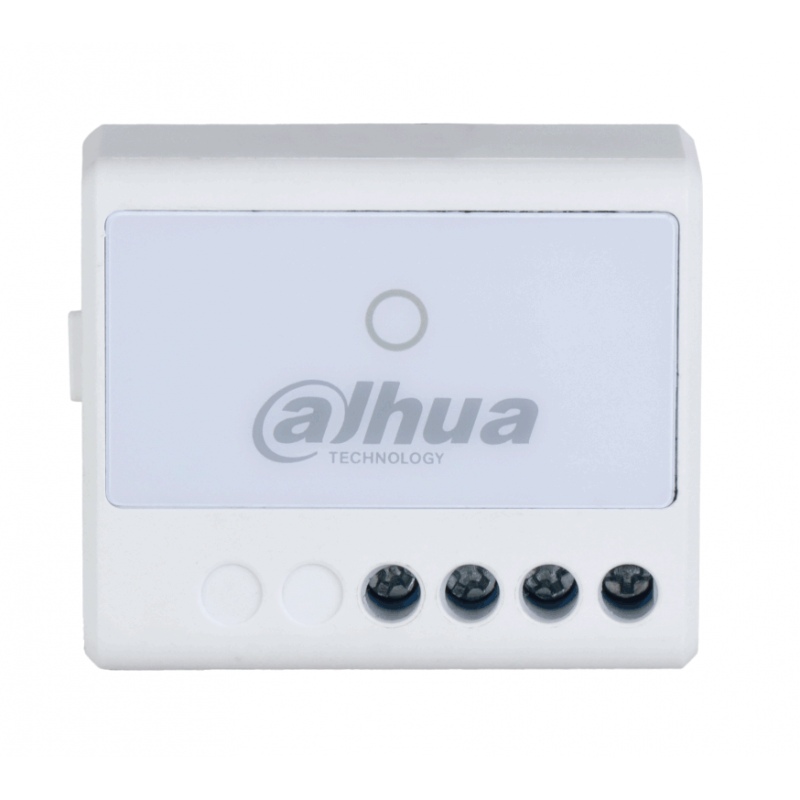

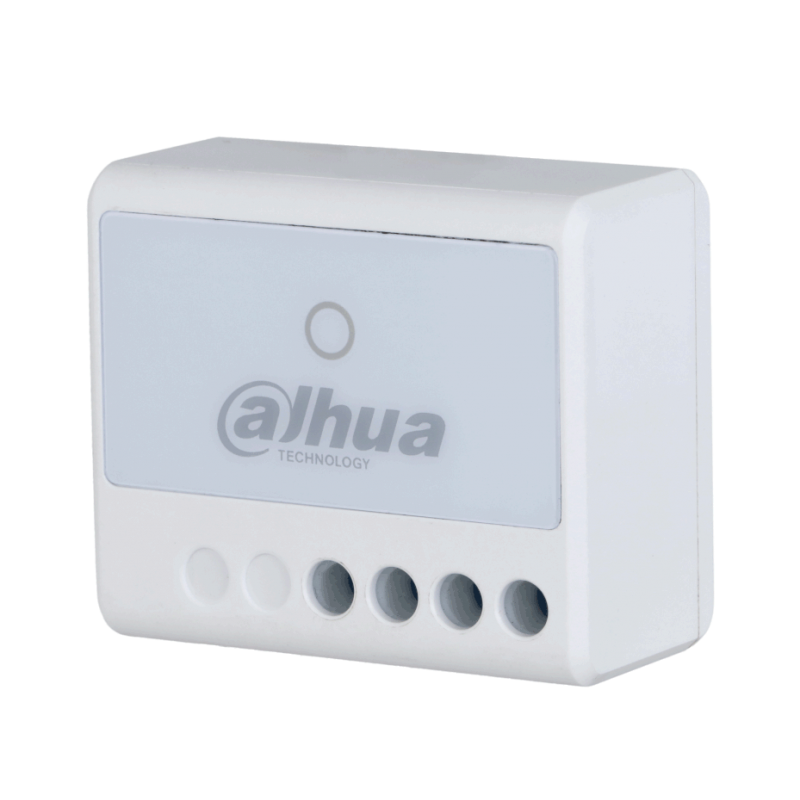

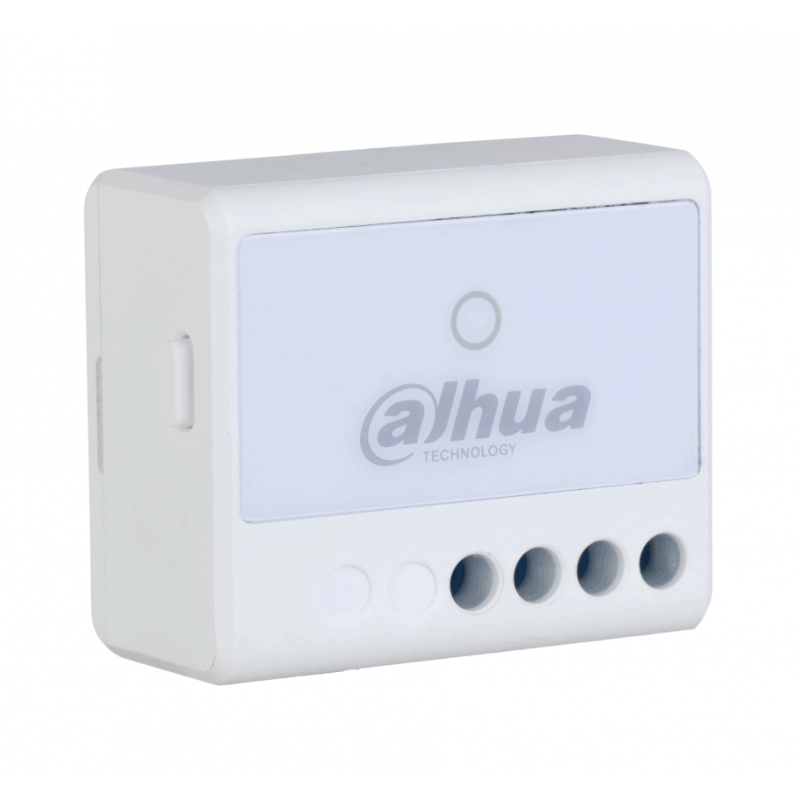

ARM7012-W2(868) Dahua Wireless WallSwitch

Dahua Accessories

Product reference: BSARM7012-W2(868)

WallSwitch is a power switch that can be used to remotely control 100–240 VAC power. The output terminal N is directly connected to the power input terminal N, and the connection between the output terminal L and the power input terminal L is controlled through opening and closing of the built-in relay. The switch not only measures power consumption, but also comes with protection against overvoltage, overload and overheating.

At stores prices may vary

Price:

€54.55

€45.08 tax excl.

Favourite

Product information

ARM7012-W2(868) Dahua Wireless WallSwitch.

Frequency hopping and two-way communication technology ensure that communication is stable.
Supports jamming detection and communication encryption.
Supports cloud update and automatically restores when cloud update fails.
Overheat and overload protection.
Monitors voltage, current and energy consumption.

Specifications

Port

Relay Output

1, NO/NC (100–240 VAC, Max 13A)

Function

Indicator Light

1 for multiple statuses (pairing, communication)

Button

Remote Update

Cloud update

Technical

Test Mode

Yes

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Mechanism

Two-way

Communication Distance

1200 m (3937.01 ft) in open areas

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

100–240 VAC, 50/60 HZ

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Product Dimensions

39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75")

Packaging Dimensions

95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20")

Net Weight

45 g (0.10 lb)

Gross Weight

60 g (0.13 lb)

Installation

Wall mount

Casing Material

Plastic

Certifications
