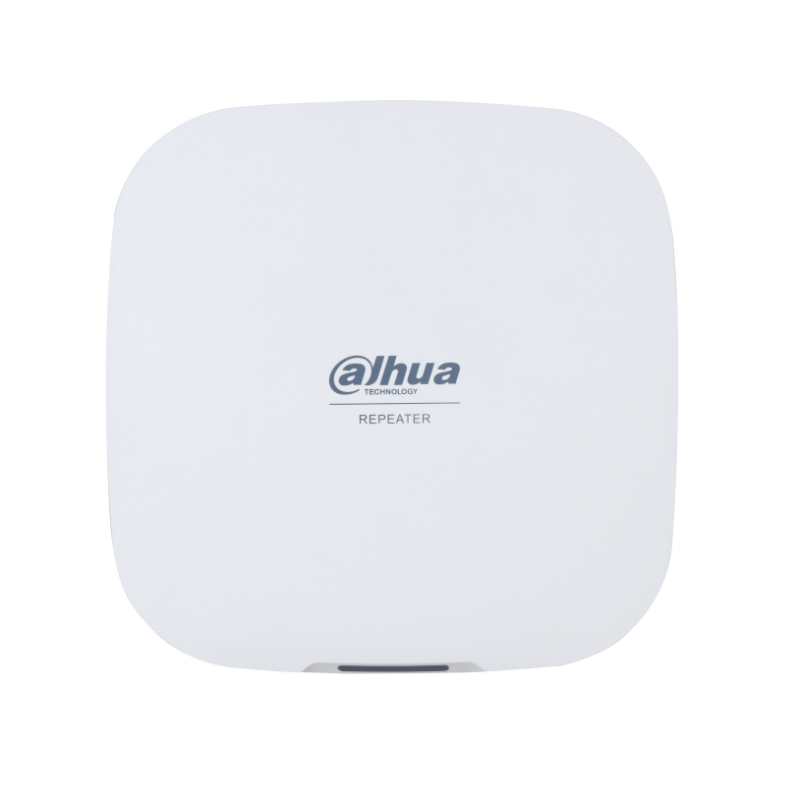

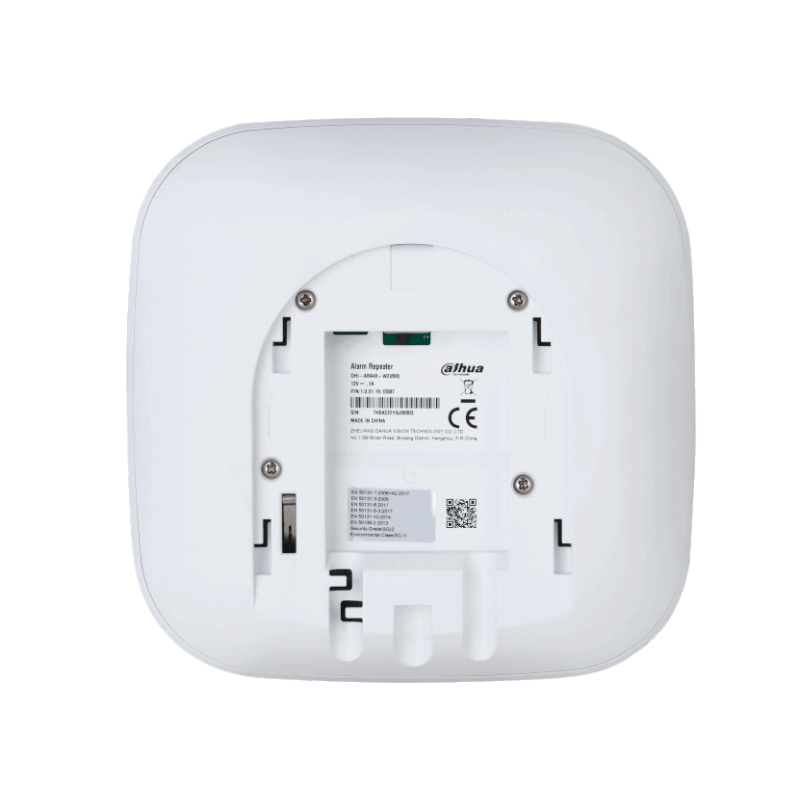

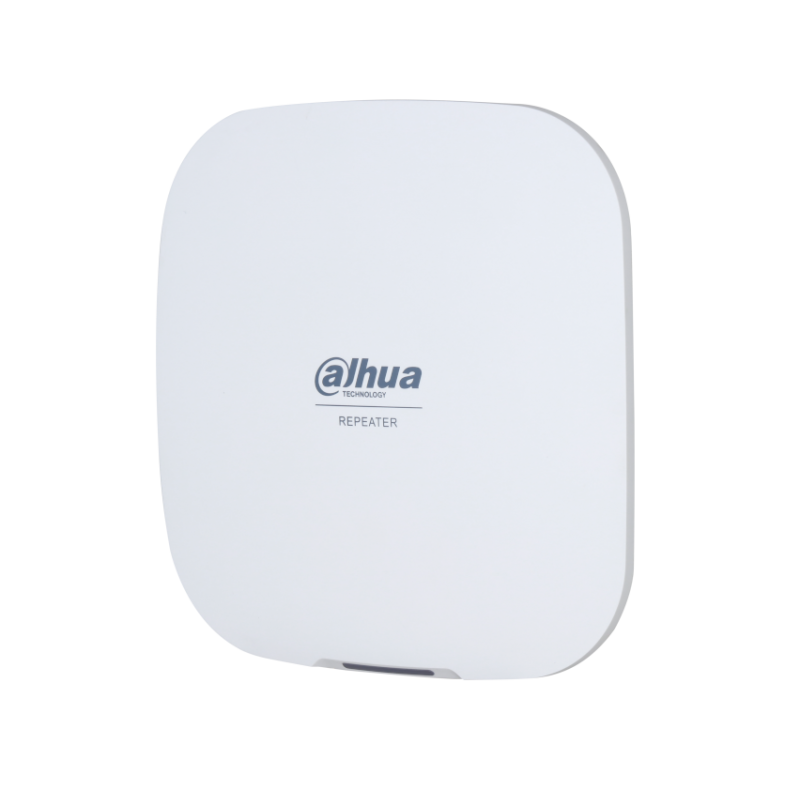

ARA43-W2(868) Alarm Repeater

Dahua Accessories

Product reference: BSARA43-W2(868)

Alarm repeater is a wireless repeater device that extends the communication range between the alarm hub and other accessories, and forwards messages received from the accessory to the hub. It provides a secondary communication path for accessories, improving the overall stability and reliability of communication of the wireless security system.

At stores prices may vary

Price:

€126.90

€104.88 tax excl.

Favourite

Product information

ARA43-W2(868) Alarm Repeater.

Connects up to 32 peripherals.
Two-way RF communication.
LED indicator displays device status.
Supports manual and auto paring, extending RF distance for your security system.
Auto switches from dual antennas to reduce blind areas.
Cloud update and auto recovery of update failure.
Battery backs device working for over 35 hours when external power supply fails.

Specifications

Input/Output

Wireless Zone

32 × wireless peripherals

Port

Storage Battery

Built-in lithium battery

Indicator Light

1 that indicates pairing and working

Power Switch

1 × power switch

Function

Pairing Mode

Auto/Manual

Tamper Alarm

Yes

Remote Update

Cloud update

Power Failure Protection for Configured Parameters

Yes

Disconnection Detection of External Power Supply

Yes

Low Battery Alarm

Yes

Signal strength detection

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Transmitter Power (EIRP)

Limit 25 mW

Communication Distance

Up to 1,600 m (5249.34 ft) in an open space

Communication Mechanism

Two-way

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

12 VDC, 1.5 A

Battery Life

Battery standby time: 35 h

Operating environment

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Product Dimensions

163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26")

Packaging Dimensions

219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58")

Installation

Wall mount; Desktop

Net Weight

0.32 kg (0.71 lb)

Gross Weight

0.74 kg (1.63 lb)

Certifications

EN 50131-1:2006+A1:2009+A2:2017+A3:2020

EN 50131-3:2009

EN 50131-6:2017

EN 50131-5-3:2017

EN 50131-10:2014

EN 50136-2:2013

Security Grade 2

Environmental Class II

Casing

PC+ABS
