IP camera HFW1439TL1-A-IL-0280B, 2.8 mm, IR 30m, LED 20m, Dahua

Dahua cameras and NVRs

Product reference: CAHFW1439TL1-A-IL-02

4 MP 1/2.9" CMOS sensor delivers clear, high-definition images even in low-light conditions.
Supports up to 4 MP resolution (2560 × 1440) at 25/30 fps.
Advanced H.265 compression technology for lower bandwidth and storage usage.
Equipped with built-in IR LEDs and warm light illumination, offering up to 30 m IR range and 20 m warm light range.
Features WDR, 3D NR, HLC, BLC, and digital watermarking for reliable performance in various surveillance environments.
Supports ROI and SMART H.264+/H.265+ for optimized bandwidth and storage efficiency.
Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
Built-in microphone.
12 VDC/PoE power supply
IP67
Human detection support.

At stores prices may vary

Price:

€110.11

€91.00 tax excl.

Favourite

We have 6 qty.
Delivery in 1-2 business days

Product information

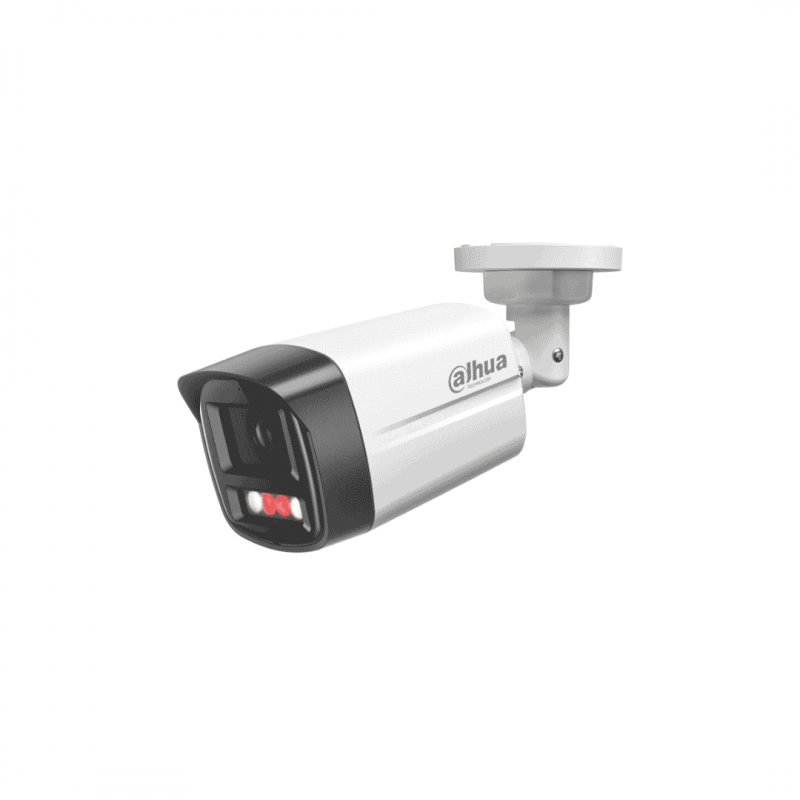

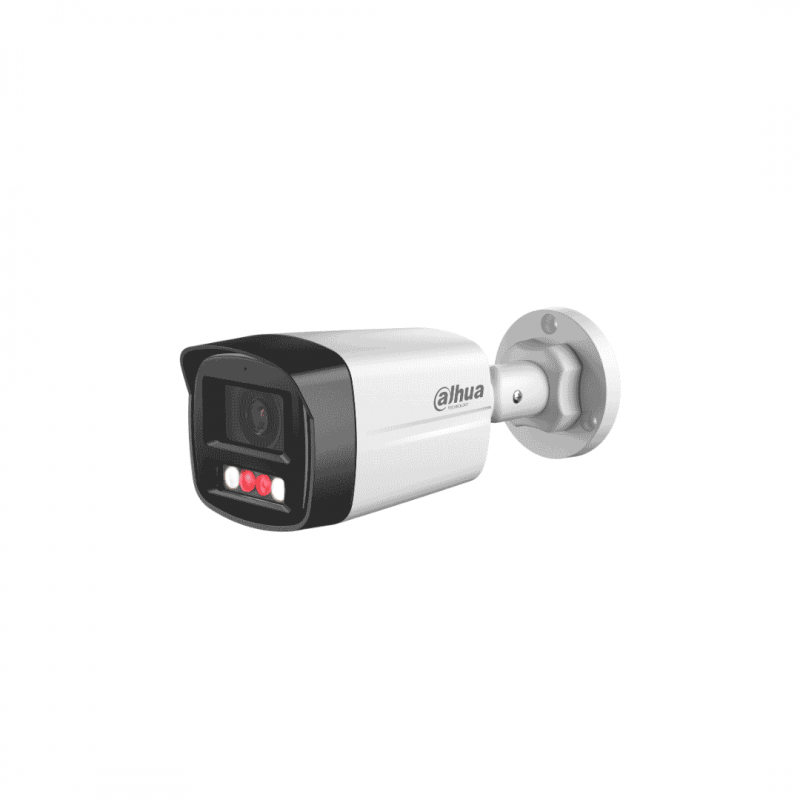

IP camera HFW1439TL1-A-IL-0280B, 2.8 mm, IR 30m, LED 20m, Dahua

Series Overview

The Dahua Entry Series network cameras offer simple installation, user-friendly operation, and excellent value for money. They are ideal for small and medium-sized applications such as homes, residential areas, retail stores, and small to medium businesses.

Features

Smart Dual Light

Dahua Smart Dual Light technology uses intelligent algorithms to detect targets. At night, the IR illumination is normally active. When a target enters the monitoring area, the white light turns on and the camera records full-color video and key event details. Once the target leaves the area, the white light switches off and IR mode resumes, effectively reducing light pollution.

Human Detection

Advanced Dahua AI algorithms accurately detect human movement while reducing false alarms caused by animals or other moving objects.

Smart H.265+ & Smart H.264+

The advanced adaptive bitrate control technology provides higher compression efficiency compared to standard H.265 and H.264, maintaining high image quality while reducing bandwidth and storage requirements.

WDR

Wide Dynamic Range (WDR) technology ensures clear image details in scenes with strong lighting contrast, such as bright backlight environments or shadowed areas.

Cyber Security

Dahua network cameras feature advanced cybersecurity technologies including authentication, access control, encrypted transmission, and encrypted storage to protect against cyber threats and unauthorized access.

Protection (IP67 & Wide Voltage)

The IP67-rated housing provides excellent resistance against dust and water, allowing the camera to operate even after being submerged in 1 meter of water for up to 30 minutes.

Wide voltage support ensures stable performance even in environments with unstable power supply, making the camera suitable for outdoor installations.

Function
Image Setting																		Brightness; Contrast; Sharpness; Saturation; Gamma
OSD Overlay																		Time; channel; location
Record Mode																		Manual record; video detection record; schedule record Record priority: Manual>video detection>schedule
Default																		Support one-click restore
User Management																		Up to 20
Security Mode																		User name and password; MAC address; HTTPS; network access control
Low Illuminance Level																		Starlight
Intelligence
Human Detection																		Support the classification and accurate detection of human
Smart Search																		Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression																		H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec																		Smart H.265+; Smart H.264+
Video Frame Rate																		Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability																		2 streams
Resolution																		4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240）
Bit Rate Control																		CBR/VBR
Video Bit Rate																		H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps
Day/Night																		Auto(ICR)/Color/B/W
BLC																		Yes
HLC																		Yes
WDR																		120 dB
White Balance																		Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control																		Manual; Auto
Noise Reduction																		3D NR
Motion Detection																		OFF/ON (4 areas, rectangular)
Default Bit Rate with Default Resolution																		3072 kbps (2560 × 1440)
Region of Interest (RoI)																		Yes (4 areas)
Smart Illumination																		Yes
Image Rotation																		0°/180°
Mirror																		Yes
Privacy Masking																		4 areas
Language																		English; Spanish; Russian
Alarm
Alarm Event																		Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Network
Network Port																		RJ-45 (10/100 Base-T)
SDK and API																		Yes
Network Protocol																		IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability																		ONVIF (Profile S & Profile T); CGI
User/Host																		6 (Total bandwidth: 24 M)
Storage																		FTP
Browser																		IE; Chrome; Firefox
Management Software																		Smart PSS Lite; DSS; DMSS
Mobile Client																		iOS; Android
Security																		Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade
Environment
Operating Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity																		≤95%
Storage Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity																		≤95%
Protection																		IP67
Anti-corrosion Level																		Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Lens
Lens Type																		Fixed-focal
Lens Mount																		M12
Focal Length																		2.8 mm
Max. Aperture																		F1.6
Field of View																		H: 94°; V: 52°; D: 111°
Iris Control																		Fixed
Close Focus Distance																		1.1 m (3.61 ft)
DORI Distance																		D: 64.0 m; O: 25.6 m; R: 12.8 m; I: 6.4 m (D: 209.97 ft; O: 83.99 ft; R: 41.99 ft; I: 21.00 ft)
Camera
Appearance																		Bullet
Image Sensor																		1/2.9" CMOS
Pixel																		4 MP
Max. Resolution																		2560 (H) × 1440 (V)
ROM																		128 MB
RAM																		128 MB
Scanning System																		Progressive
Electronic Shutter Speed																		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination																		0.006 [email protected] (Color, 30 IRE); 0.0006 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio																		＞56 dB
Illumination Distance																		Up to 30 m (98.43 ft) (IR LED); up to 20 m (65.62 ft) (Warm light)
Illuminator On/Off Control																		Auto; Manual
Illuminator Number																		2 (IR LED); 2 (Warm light)
Angle Adjustment																		Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Audio
Built-in MIC																		Yes, built-in Mic
Audio Compression																		G.711a; G.711Mu; PCM; G.726
Audio Sampling																		8 kHz; 16 kHz
Structure
Casing Material																		Metal+plastic
Product Dimensions																		197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H)
Packaging Dimensions																		240 mm × 115 mm × 111 mm (9.45" × 4.53" × 4.37") (L × W × H)
Net Weight																		0.31 kg (0.68 lb)
Gross Weight																		0.45 kg (0.99 lb)
Installation																		Ceiling mount; wall mount; vertical pole mount
Power Adapter																		Optional
Lens																		Included
Certification
Certifications																		CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Operating Voltage																		12 VDC (±30%); PoE (802.3af)
Power Supply																		12 VDC/PoE (802.3af)
Power Consumption																		Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 6.4 W (12 VDC); 7.7 W (PoE)

Features

Lens	2.8
Color	White
Resolution	4MP
Camera type	Bullet
IR distance	≤ 30 m

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
