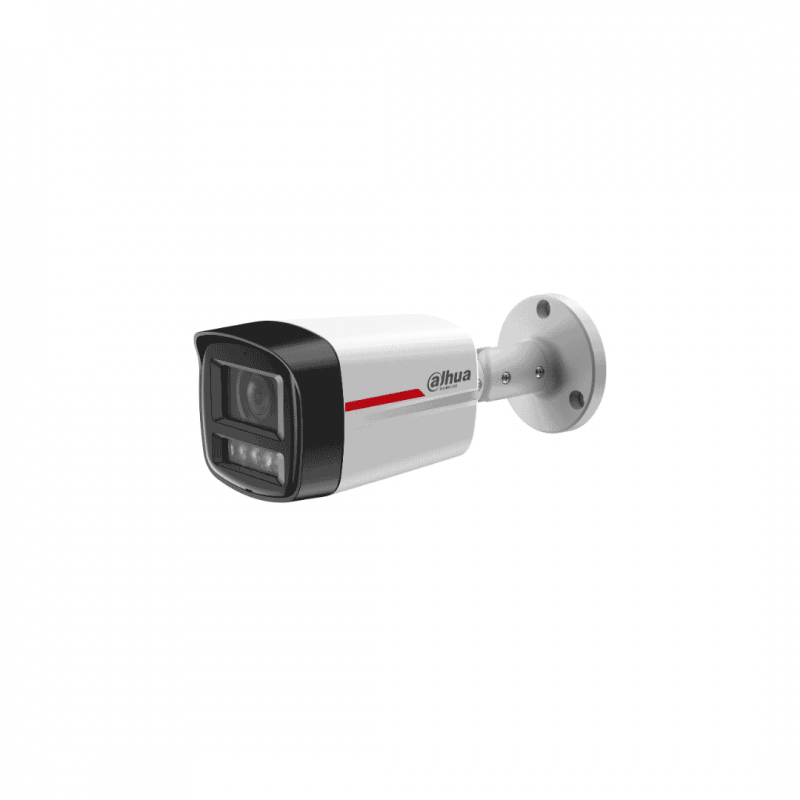

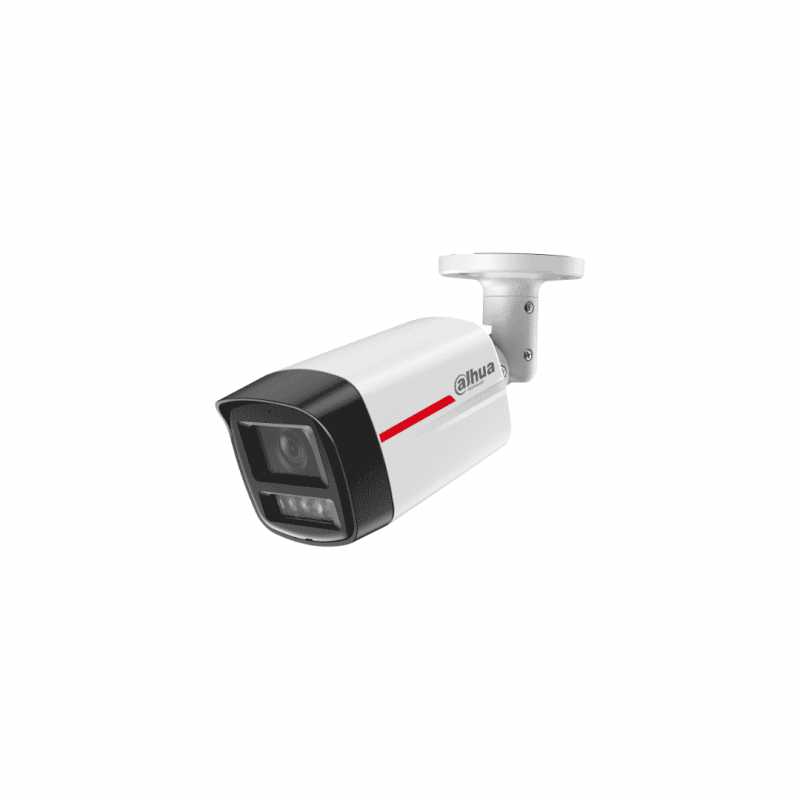

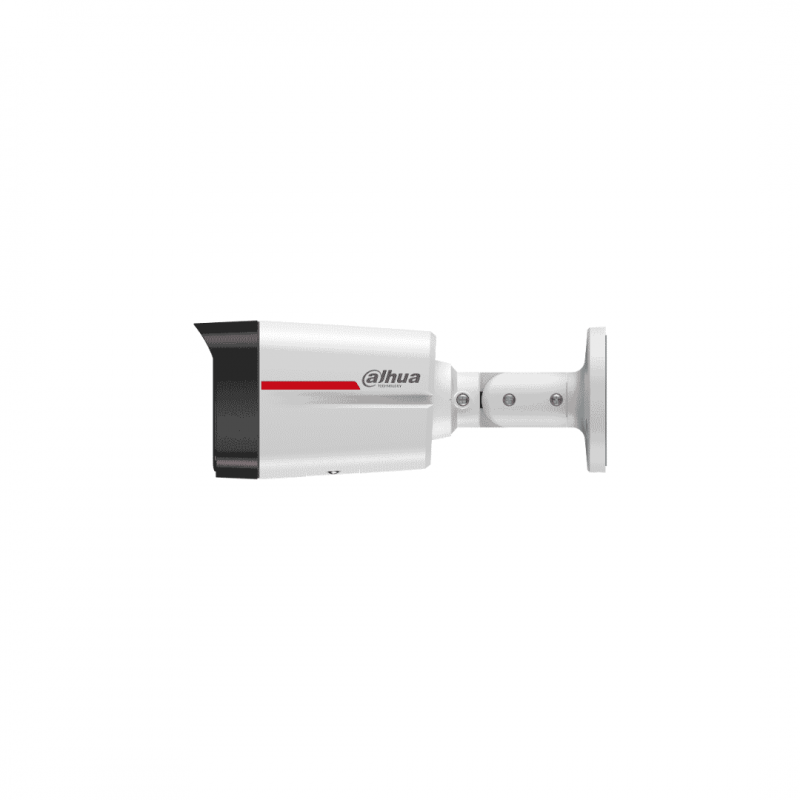

IP camera HFW2449TL-S-LED-0280B-PRO-S1, 2.8mm, 1/1.8 CMOS Dahua

Dahua cameras and NVRs

Product reference: CAHFW2449TLSLED28S1

4MP WizColor fixed-focal Bullet WizSense network camera.
4MP 1/1.8" CMOS image sensor for high-quality low-light imaging.
4MP (2688 × 1520) at 20 fps and 2560 × 1440 at 25/30 fps.
H.265 video compression with ultra-low bit rate.
Built-in warm light provides up to 50 m illumination distance.
ROI, SMART H.264+/H.265+ and flexible coding.
WDR, 3D NR, HLC, BLC and digital watermarking.
Intelligent detection includes intrusion and tripwire with human and vehicle classification.
Detects motion, video tampering, audio, SD card issues, network disconnection, IP conflict, illegal access and voltage fluctuation.
Supports up to 256 GB Micro SD card and has a built-in microphone.
Power supply: 12 VDC or PoE.
Protection rating IP67.
Supports SMD Plus technology.

At stores prices may vary

Price:

€165.77

€137.00 tax excl.

Favourite

We have 7 qty.
Delivery in 1-2 business days

Product information

IP camera HFW2449TL-S-LED-0280B-PRO-S1, 2.8mm, 1/1.8 CMOS Dahua

WizSense AI technology

Dahua WizSense uses advanced AI to accurately detect humans and vehicles, reducing false alarms and enabling faster response to real threats.

Full-color night vision

WizColor technology combined with AI-ISP and a large sensor delivers clear full-color images even in very low light. It uses ambient light sources such as moonlight and city lighting for detailed night vision.

Smart detection

SMD Plus distinguishes humans and vehicles from other moving objects, significantly reducing false alarms. Perimeter protection accurately detects intrusion and tripwire events.

High-quality imaging

The camera supports 4MP resolution (up to 2688 × 1520), H.265 compression, and ultra-low bandwidth usage. WDR, 3D NR, HLC, and BLC ensure clear images in challenging lighting conditions.

Smart features

Supports motion detection, audio detection, video tampering alerts, and network error notifications. Built-in microphone, microSD support up to 256 GB, Smart H.265+/H.264+ encoding.

Reliable design

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0001 [email protected]

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 105°; V: 57°; D: 125°
3.6 mm: H: 89°; V: 48°; D: 105°
6 mm: H: 55°; V: 29°; D: 64°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 3.0 m (9.84 ft)
6 mm: 6.0 m (19.69 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	57.9 m ( 189.96 ft)	23.2 m ( 76.12 ft)	11.6 m ( 38.06 ft)	5.8 m ( 19.03 ft)
3.6 mm	70.3 m ( 230.64 ft)	28.1 m ( 92.19 ft)	14.1 m ( 46.26 ft)	7.0 m ( 22.97 ft)
6 mm	116.6 m ( 382.55 ft)	46.6 m ( 152.89 ft)	23.3 m ( 76.44 ft)	11.7 m ( 38.39 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 1.4 W (12 VDC); 1.7 W (PoE);
Max.: 5.4 W (12 VDC); 6.3 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing Material

Metal

Product Dimensions

197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H)

Net Weight

0.56 kg (1.23 lb)

Gross Weight

0.70 kg (1.54 lb)

Features

Lens	2.8
Color	White
Resolution	4MP
Camera type	Bullet
IR distance	≤ 50 m
AI functionality	Lite AI

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
