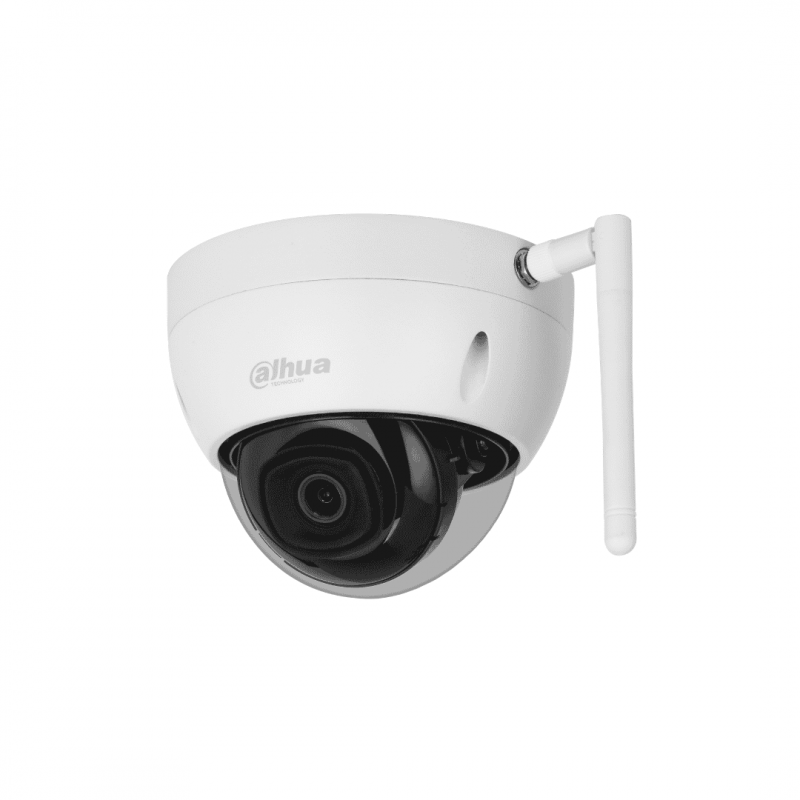

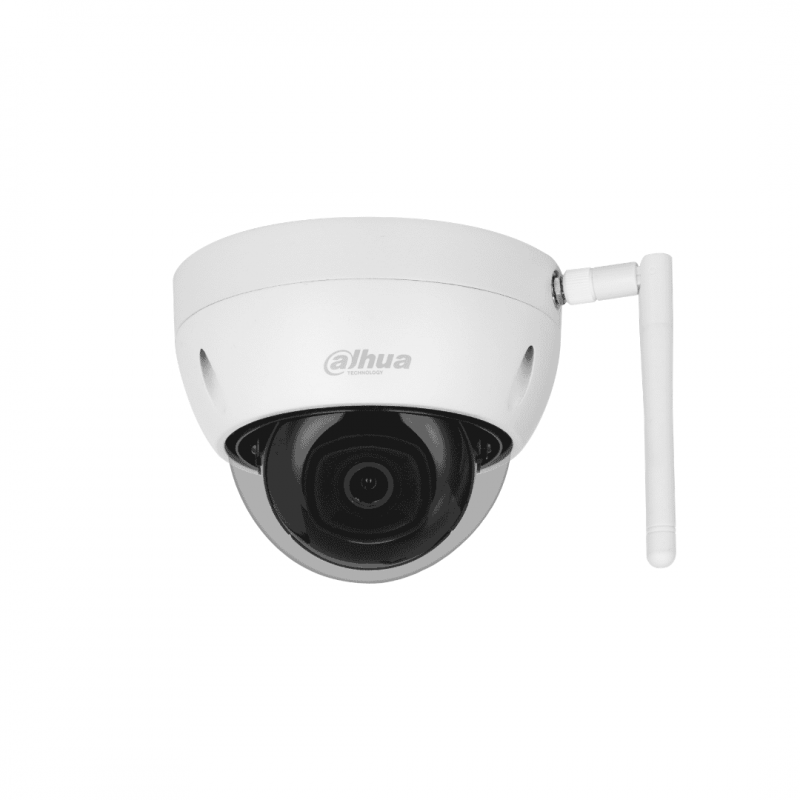

IP camera HDBW1430DE-SW-0280B, 4MP, Wi-Fi, 2.8mm Dahua

Dahua cameras and NVRs

Product reference: CAHDBW1430DE-SW-0280

> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED.

> SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments.

> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.

> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.

> Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.

> Supports max. 256 G Micro SD card.

> 12 VDC power supply.

> IP67, IK10 protection.

At stores prices may vary

Price:

€136.73

€113.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

IP camera HDBW1430DE-SW-0280B, 4MP, Wi-Fi, 2.8mm Dahua

The Dahua Entry Series Network Camera is a cost-effective and reliable video surveillance solution designed for homes, small retail stores, offices, and other small to medium-sized applications. Its easy installation, user-friendly operation, and excellent price-to-performance ratio make it an ideal choice for everyday security needs.

Key Features:

Smart H.265+ & Smart H.264+ – Advanced video compression technology delivers high-quality images while reducing bandwidth usage and storage requirements.
Motion Detection – Automatically detects movement within the monitored area and can trigger recording or alarm notifications.
Day/Night Mode – Captures full-color images in daylight and automatically switches to black-and-white mode in low-light conditions for reliable 24/7 surveillance.
IP67 & IK10 Protection – Dustproof, waterproof, and vandal-resistant housing ensures dependable operation in demanding indoor and outdoor environments.
Wide Voltage Support – Designed to operate reliably with up to ±30% input voltage fluctuation, making it suitable for locations with unstable power supply.
Cyber Security – Advanced security features, including authentication, access control, encrypted communication, and encrypted storage, help protect the camera against unauthorized access and cyber threats.

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.03 [email protected] (Color, 30 IRE)

0.003 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0–355°
Tilt: 0–75°
Rotation: 0–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:
Horizontal: 90°; Vertical: 50°; Diagonal: 107°
3.6 mm:
Horizontal: 76°; Vertical: 40°; Diagonal: 92°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

68 m

(223.10 ft)

27.2 m (89.24 ft)

13.6 m (44.62 ft)

6.8 m

(22.31 ft)

3.6 mm

85.2 m (279.53 ft)

34.1 m (111.88 ft)

17.0 m (55.78 ft)

8.5 m

(27.89 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+;Smart H.264+

Video Frame Rate

Main stream:
2560 × 1440@ (1–20 fps)
Sub stream:
640 × 480@(1–25 fps)

640 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4–2.4835 GHz

Wireless Range

Up to 80 m (The performance varies based on actual environment)

SDK and API

Yes

Cyber Security

Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X.509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP

Interoperability

ONVIF (Profile S/Profile G); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB, sold separately)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

Power

Power Supply

12 VDC

Power Consumption

Basic: 2 W (12 VDC);
Max. (H.265+IR intensity): 4.9 W (12 VDC)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

Φ110.7 mm × 88.7 mm (Φ4.33" × 3.49")

Net Weight

414 g (0.91 lb)

Gross Weight

592 g (1.31 lb)

Features

Lens	2.8
Color	White
Resolution	4MP
Camera type	Dome
Features	Support MicroSD ≤ 256 GB
