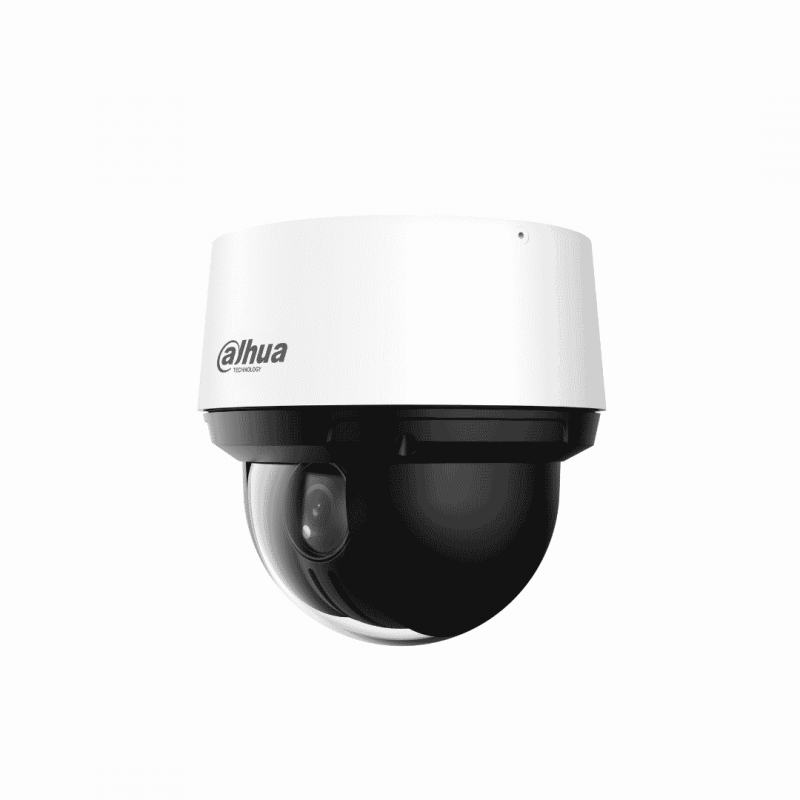

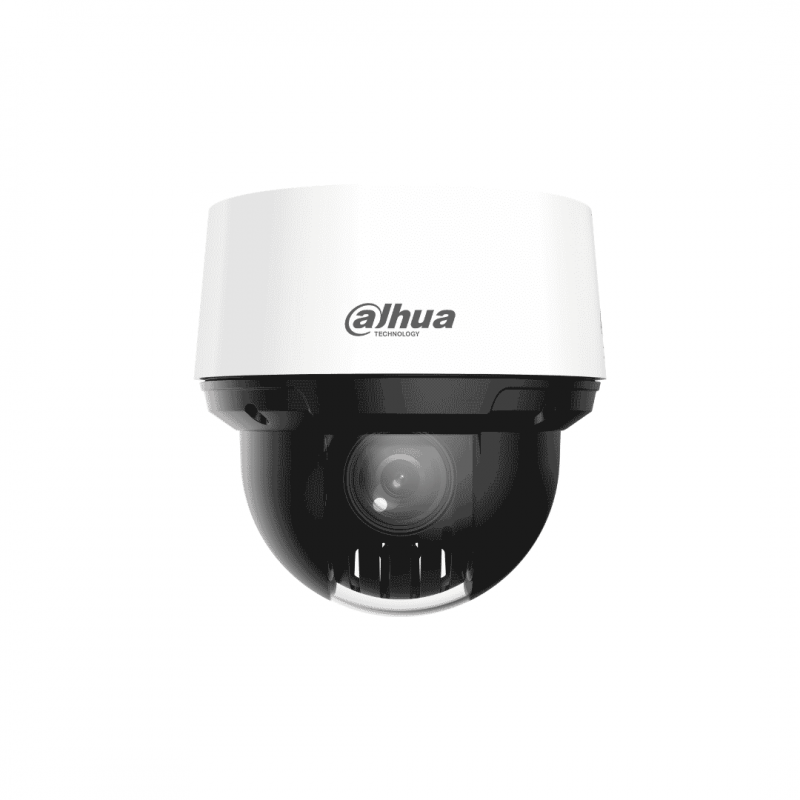

Dahua PTZ camera, SD4A216DB-HNY, 2Mp, 16x, IR100 m.

Dahua cameras and NVRs

Product reference: CASD4A216DB-HNY

2MP 16x WizSense NETWORK PTZ CAMERA

> 1/2.8" 2Megapixel STARVIS™ CMOS.

> 16x optical zoom.

> Starlight technology.

> Max. 25/30fps@2MP.

> IR distance up to 100 m.

> Auto-tracking 1.0.

> Perimeter protection.

> Face detection.

> SMD 3.0.

> IP66.

At stores prices may vary

Price:

€655.82

€542.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

Dahua PTZ camera, SD4A216DB-HNY, 2Mp, 16x, IR100 m.

System Overview

With powerful optical zoom and precise pan/tilt capabilities, this PTZ camera provides an all-in-one solution for long-distance outdoor video surveillance. Combined with infrared illumination and Starlight Technology, it delivers excellent performance in low-light and dark environments. The day/night mechanical IR cut filter ensures clear image quality under changing lighting conditions.

Key Functions

Starlight Technology
Advanced image processing and optical technology enable the camera to produce clear, colorful video even in extremely low-light conditions, making it suitable for various challenging environments.

Wide Dynamic Range (WDR)
Using industry-leading WDR technology, the camera delivers vivid images even in high-contrast lighting conditions. It balances bright and dark areas of a scene for superior image quality.

Perimeter Protection
The system automatically filters out false alarms caused by animals, moving leaves, bright lights, and other environmental disturbances, while improving detection accuracy through secondary target recognition.

WizSense Technology
Dahua WizSense is a series of AI-driven products and solutions based on an independent AI chip and deep-learning algorithms. It focuses on human and vehicle detection with high accuracy, enabling fast response to relevant targets and providing intelligent, simple, and accessible security solutions.

Auto-tracking 1.0
The camera automatically controls pan, tilt, and zoom movements to track moving objects and keep them in frame. Tracking can be triggered manually or by predefined rules, automatically zooming and following the target once activated.

PFA Technology
Predictive Focus Algorithm (PFA) ensures accurate and fast focusing during zoom operations, maintaining image clarity and reducing focus time.

SMD (Smart Motion Detection)
Powered by deep-learning algorithms, SMD filters out irrelevant motion detection events and accurately identifies humans and vehicles, triggering alarms only when necessary.

Environmental Performance (–40 °C to +65 °C, IP66)
Designed for extreme environments, the camera operates in temperatures from –40 °C to +65 °C and up to 95% humidity. It is IP66 rated for dust and water resistance, making it suitable for demanding outdoor applications.

Technical Speciﬁcation

Camera

Image Sensor

1/2.8" CMOS

Pixel

2MP

Max. Resolution

1920 × 1080

Electronic Shutter Speed

1/1s~1/30000s

Scanning System

Progressive

Min. Illumination

Color: 0.005 [email protected]
B/W: 0.0005 [email protected]
0 lux (IR on)

Illumination Distance

100 m (328.08 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

6 (IR)

Lens

Focal Length

5 mm–80 mm

Max. Aperture

F1.6–F3.5

Field of View

H: 53.9°–4.6°
V: 30.3°–2.6°
D: 60°–5.3°

Optical Zoom

16×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Fixed

Iris Control Type

P-Iris

DORI Distance

Detect

Observe

Recognize

Identify

1,103.4 m (3,620.08 ft)

435.9 m (1,430.12 ft)

220.7 m

(724.08 ft)

110.3 m (361.88 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –5° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–240°/s
Tilt: 0.1°/s–160°/s

Preset Speed

Pan: 240°/s; Tilt: 160°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Idle Motion

Pattern;Preset;Scan;Tour

PTZ Protocol

DH-SD

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Detection

Supports face detection, face track box, capturing pictures, face enhancement; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing and quality first

Smart Tracking

Auto Tracking 1.0

SMD

SMD 3.0

Auto Patrol

It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 64 kbps–8192 kbps
H265:25 kbps–6400 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;SNMPv1/v2c/v3(MIB-2);Qos;RTSP;ARP

Interoperability

CGI;SDK;ONVIF (Profile S & Profile G & Profile T & Profile M);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions

Management Software

DSS;DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL62368-1

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT,bare wire)

Alarm Linkage

Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email; audio

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection;

Alarm Input

2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection

Alarm Output

1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC

Audio I/O

1/1

Power

Power Supply

12 VDC（± 10%）,2 A (included);PoE+ (802.3at)

Power Consumption

Basic: 10 W
Max (illuminator on + fan on + PTZ): 19 W

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤ 95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

170.4 mm × Φ171.1 mm (6.71" × Φ6.74")

Net Weight

2.5 kg (5.51 lb)

Gross Weight

3.2 kg (7.05 lb)

Features

Lens	Motorized lens
Resolution	2MP
Camera type	PTZ
IR distance	more than 80 m
Features	Starlight
Features	Support MicroSD ≤ 512GB
