IP camera PT2449C1-S-PV-LED-0360B-PRO, 4MP, LED 30m, Dahua

Dahua cameras and NVRs

Product reference: CAPT2449C1SPVLEDPRO

4MP PT network camera with WizColor and WizSense technologies. The 1/1.8" CMOS sensor, F1.0 aperture and warm-light illumination up to 30 m provide detailed full-colour images even in low-light conditions. The camera supports Auto Tracking Lite, SMD 3.0, human and vehicle detection, active light and sound deterrence, and two-way audio. The PT mechanism provides a 345° pan and 90° tilt range. Supports Micro SD cards up to 512 GB, PoE (802.3af), ONVIF and IP66 weather protection.

At stores prices may vary

Price:

€188.76

€156.00 tax excl.

Favourite

We have 6 qty.
Delivery in 1-2 business days

Product information

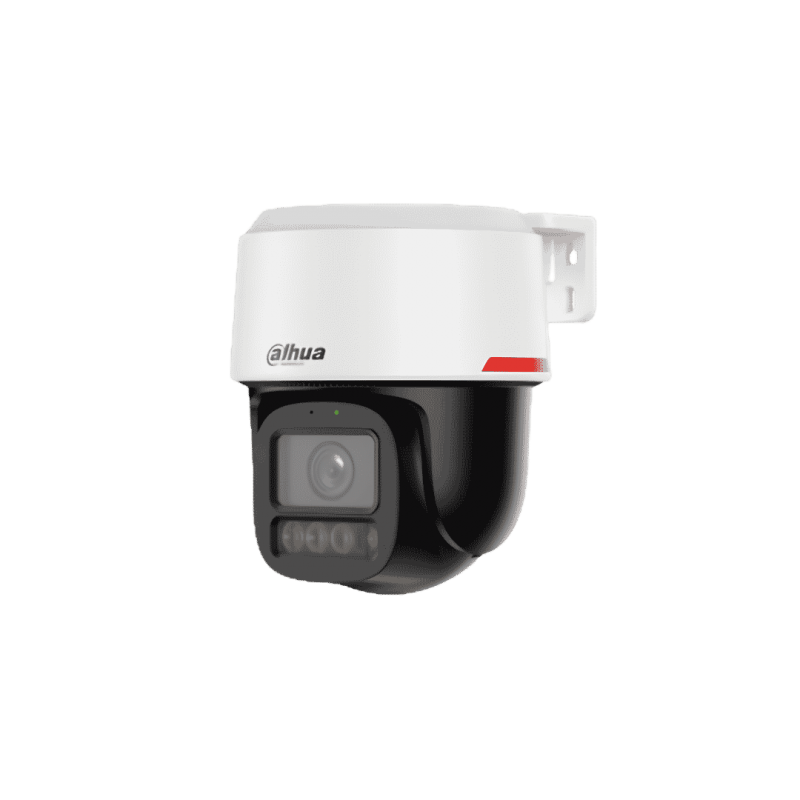

Dahua IPC-PT2449C1-S-PV-PRO 4MP WizColor PT Network Camera

The Dahua IPC-PT2449C1-S-PV-PRO is a 4MP PT network camera designed for effective outdoor video surveillance during both day and night. Equipped with a large 1/1.8" CMOS sensor, F1.0 aperture and WizColor technology, the camera delivers detailed full-colour images even in extremely low-light conditions.

24/7 Full-Colour Monitoring with WizColor

WizColor technology combines a large image sensor and F1.0 aperture to capture more light and maintain colour images in challenging lighting conditions. The integrated warm-light illuminators provide illumination at distances of up to 30 metres.

4MP Resolution and Wide Field of View

The 4MP CMOS sensor provides a maximum resolution of 2688 × 1520. The 3.6 mm lens offers a 97° horizontal, 52° vertical and 114° diagonal field of view, allowing the camera to cover a large surveillance area.

PT Control and Automatic Tracking

The camera provides a pan range of up to 345° and a tilt range of up to 90°. Auto Tracking Lite enables automatic target tracking, while preset positions and patrol functions allow multiple areas to be monitored automatically.

WizSense Intelligent Detection

The camera supports SMD 3.0, human and vehicle detection, as well as IVS functions including tripwire and intrusion detection. These intelligent features help identify important events more accurately and reduce unnecessary alerts.

Active Deterrence

When an event is detected, the camera can activate visual and audible warnings. The duration and frequency of the light warning can be adjusted, while the built-in speaker supports three sound alarms.

Two-Way Audio

A built-in microphone and speaker enable real-time two-way communication. This makes the camera suitable for entrances, gates, yards and other areas where remote communication may be required.

Local Micro SD Storage

The camera supports Micro SD cards up to 512 GB, allowing video footage to be stored locally. FTP storage and integration with NVR recording devices are also supported.

PoE and Outdoor Protection

The camera can be powered by 12 VDC or PoE (802.3af), allowing power and network data to be transmitted through a single Ethernet cable. The IP66 weather-resistant housing is suitable for outdoor installation and operates at temperatures from –30 °C to +55 °C.

Key Features

4MP resolution up to 2688 × 1520
1/1.8" CMOS image sensor
F1.0 large-aperture lens
WizColor technology for low-light full-colour imaging
Warm-light illumination up to 30 m
PT control: 345° pan and 90° tilt
Auto Tracking Lite
SMD 3.0
Human and vehicle detection
IVS tripwire and intrusion detection
Active light and sound deterrence
Built-in microphone and speaker
Two-way audio
Micro SD card support up to 512 GB
PoE (802.3af)
ONVIF support
120 dB WDR
IP66 weather protection

Camera
Image Sensor	1/1.8" CMOS
Resolution	4MP
Max. Resolution	2688 × 1520
Min. Illumination	0.0005 lux @ F1.0 (Colour, 30 IRE); 0 lux with illuminator on
Illuminator	4 × warm-light LEDs
Illumination Distance	Up to 30 m
Lens
Focal Length	3.6 mm
Max. Aperture	F1.0
Field of View	Horizontal: 97°; Vertical: 52°; Diagonal: 114°
PT Control
Pan Range	0°–345°
Tilt Range	0°–90°
Presets	80
Patrol Tours	8 (up to 6 presets per tour)
Automatic Tracking	Auto Tracking Lite
Intelligent Functions
SMD	SMD 3.0
Human Detection	Yes
Vehicle Detection	Yes
IVS	Tripwire; Intrusion detection
Active Deterrence	Light and sound warning
Video
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG
Streaming Capability	2 streams
Main Stream	2560 × 1440 @ 1–25/30 fps
WDR	120 dB
Noise Reduction	2D NR; 3D NR
Digital Zoom	16×
Audio
Built-in Microphone	Yes
Built-in Speaker	Yes
Two-Way Audio	Yes
Network and Storage
Network Port	RJ-45 (10/100 Base-T)
Interoperability	ONVIF (Profile S, G, T); CGI; SDK
Storage	Micro SD card up to 512 GB; FTP
Management Software	DMSS; NVR
Mobile Platforms	iOS; Android
Power and Protection
Power Supply	12 VDC, 1 A ±10% or PoE (802.3af)
Max. Power Consumption	9.5 W
Protection Rating	IP66
Operating Temperature	–30 °C to +55 °C
Operating Humidity	≤95%
Structure
Dimensions	153.5 × Φ129.3 mm
Net Weight	0.8 kg
Certification	CE

Features

Lens	3.6
Color	White
Resolution	4MP
Camera type	Dome
IR distance	≤ 30 m
AI functionality	Lite AI
Features	Build-in Mic
Features	WizColor
Features	Support MicroSD ≤ 512GB
