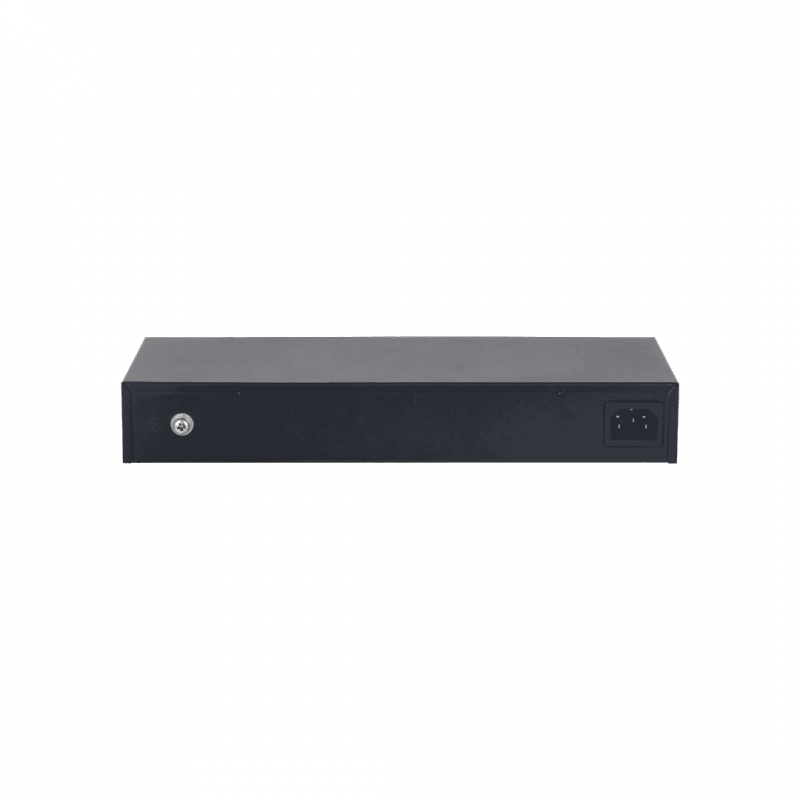

Switch S3016-16GT, Gigabit, 32G, Dahua

Dahua switch

Product reference: KSS3016-16GT

16-Port Unmanaged Gigabit Switch

> 16 × RJ-45 10/100/1000 ports.
> The all-gigabit ports transmit data without lag.
> Features aggregation mode which aggregates uplink ports.
> Features isolation mode which isolates all the ports from each other.
> With its solid full metal design, the device has great heat dissipation and no fan.
> Supports rack mount, wall mount and desktop mount.

At stores prices may vary

Price:

€83.49

€69.00 tax excl.

Favourite

We have 9 qty.
Delivery in 1-2 business days

Product information

Switch S3016-16GT, Gigabit, 32G, Dahua

Overview

This Layer 2 commercial switch is designed to provide stable and high-speed data transmission across a wide range of networking environments. Its high-performance switching engine and large packet buffer ensure smooth video streaming and reliable data transfer even under heavy network loads.

Featuring a full-metal fanless design, the switch offers excellent heat dissipation, silent operation, and long-term reliability. As an unmanaged switch, it requires no web-based configuration, making installation quick and straightforward.

Key Features

Plug & Play

No configuration is required. Simply connect the power supply and network cables, and the switch is ready to operate.

Full Line-Rate Forwarding

All ports provide fast and accurate packet forwarding, ensuring stable performance even under full network load.

Easy Installation

Supports desktop, wall-mounted, and rack-mounted installation, making it suitable for various deployment scenarios.

Flexible Applications

Ideal for offices, video surveillance systems, warehouses, retail stores, industrial facilities, and other networking environments.

Port Isolation

Devices connected to different ports are prevented from communicating directly with each other without requiring VLAN configuration. This improves network security, prevents data leakage, and isolates broadcast storms.

Link Aggregation

Multiple physical links can be combined into a single logical channel, providing increased bandwidth, load balancing, and link redundancy to maintain a stable network connection.

Basic
Layer	Layer 2
Switching Capacity	32 Gbps
Packet Forwarding Rate	23.808 Mpps
Port Configuration	Ports 1–14: 14 × RJ-45 10/100/1000 Mbps Ports 15–16: 2 × RJ-45 10/100/1000 Mbps (uplink)
Environmental
Operating Temperature	–10 °C to +55 °C
Operating Humidity	10%–90% RH, non-condensing
Storage Temperature	–40 °C to +70 °C
Storage Humidity	5%–95% RH, non-condensing
Power
Power Supply	Built-in power supply, 100–240 VAC, 50/60 Hz, 0.4 A
Power Consumption	Idle: 2.2 W Full Load: 7.8 W
Protection
Static Protection (ESD)	Air Discharge: 8 kV Contact Discharge: 6 kV
Lightning Protection	Common Mode: 2 kV Differential Mode: 0.5 kV
Dimensions & Weight
Net Weight	0.74 kg
Gross Weight	1.297 kg
Product Dimensions	294 × 119 × 44 mm (L × W × H)
Packaging Dimensions	353 × 215 × 75 mm (L × W × H)
Casing Material	Sheet Metal
Installation	Desktop, wall-mounted, or rack-mounted
Certifications	CE
Hardware
DIP Switch	Default – Factory settings. Port Isolation – Prevents traffic between ports 1–14 while allowing communication with uplink ports 15–16. Port Aggregation – Aggregates uplink ports into a single logical link.
Performance
Packet Buffer Size	8.4 Mbit
Jumbo Frame	12 KB
MAC Table Size	16K
Communication Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3ad
Features
Link Aggregation	Static Link Aggregation
Port Features	IEEE 802.3x Traffic Control
IEEE 802.3x Flow Control	Yes
Package Contents
Included Items	1 × User Manual 1 × Legal and Regulatory Information 1 × Power Cord 1 × Rack-Mounting Kit

Features

Incoming Bandwidth	10/100/1000
Ports	16
