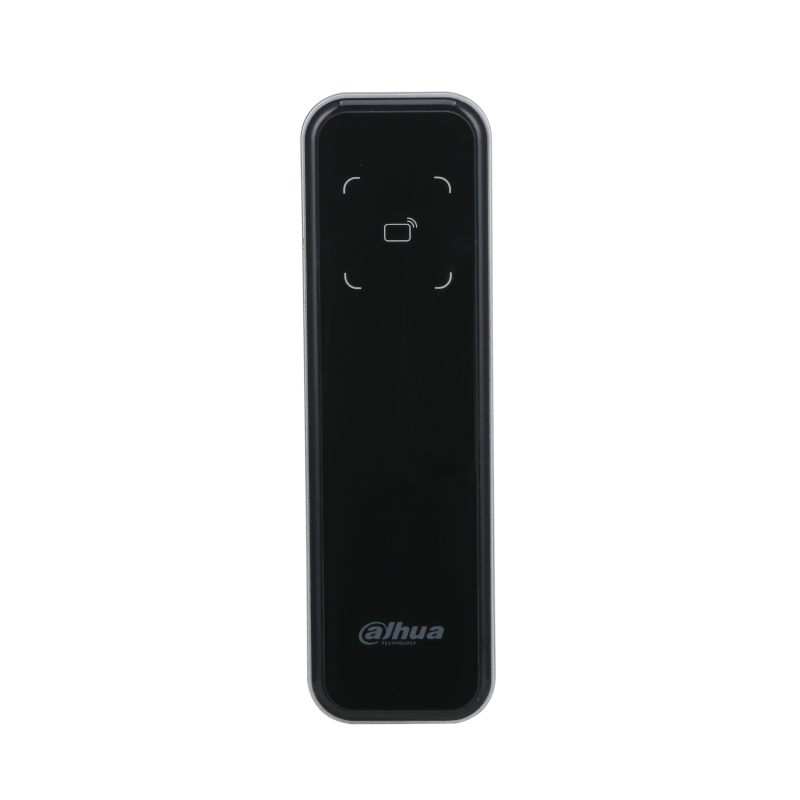

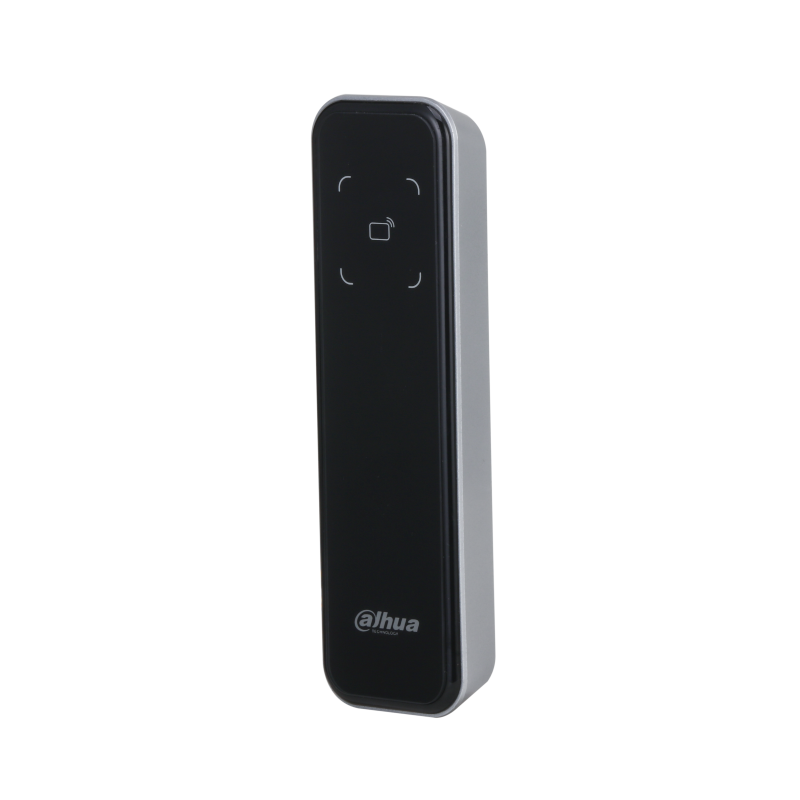

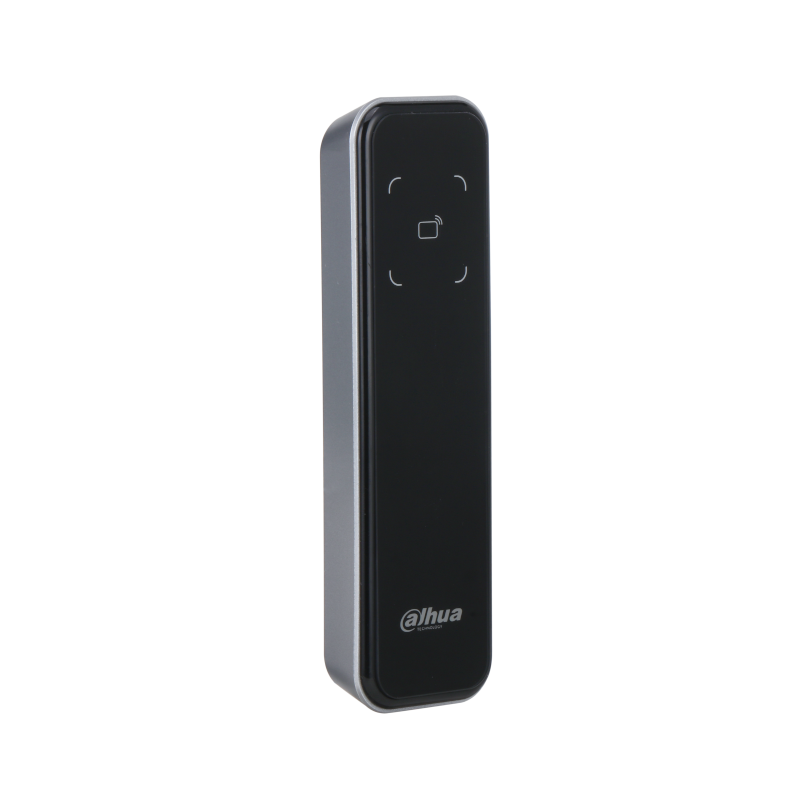

ASR2200A Access Reader Mifare 13.56 MHz, RS-485 and Wiegand 34

Dahua Technology

Product reference: PKASR2200A

PC material, tempered glass panel and IP66, suitable for indoor and outdoor use.
Support contactless recognition of IC card (Mifare card).
Support card unlock.
Support communication through RS-485 and Wiegand 34.
Support buzzer and indicator prompt.
Support anti-tampering alarm.

At stores prices may vary

Price:

€60.50

€50.00 tax excl.

Favourite

We have 8 pcs
Delivery in 1 business days

Product information

ASR2200A Access Reader.

The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment.
All connection ports have overcurrent and overvoltage protection.

Specifications:

Basic

Product Type

Slim Card Reader

Buzzer

Yes

Casing

Tempered glass/PC

Function

Unlock Mode

Card swiping

Card Type

IC card

Modulation Type

Frequency Range

13.56 MHz

Max Transmission Power

42 dBuA/m @10 m

Performance

Response Time

0.1 s

Card Reading Distance

0 cm–5 cm (0"–1.97")

Port

RS-485

1 channel

Wiegand

1 output channel

Alarm

Tamper Alarm

Yes

Tamper Alarm

Yes

General

Power Supply

12V 0.5A DC

Protection

IP66 (silicon sealant is needed, see the manual)

Power Consumption

Standby ≤ 0.9W, working ≤ 1.7W

Product Dimensions

135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (L × W× H)

Packaging Dimensions

195 mm × 75 mm × 52 mm (7.68" × 2.95 × 2.05")

(L × W× H, 1 in inner carton)
415 mm × 400 mm × 230 mm (16.34" × 15.75" × 9.06") (L × W × H, carton)

Operating Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

5%RH–95% (non-condensing)

Operating Environment

Indoor; outdoor

Gross Weight

0.16 kg (0.35 lb)

Installation

Surface mount

Certifications

CE; FCC

Features

Type	Controlled by a controller

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
