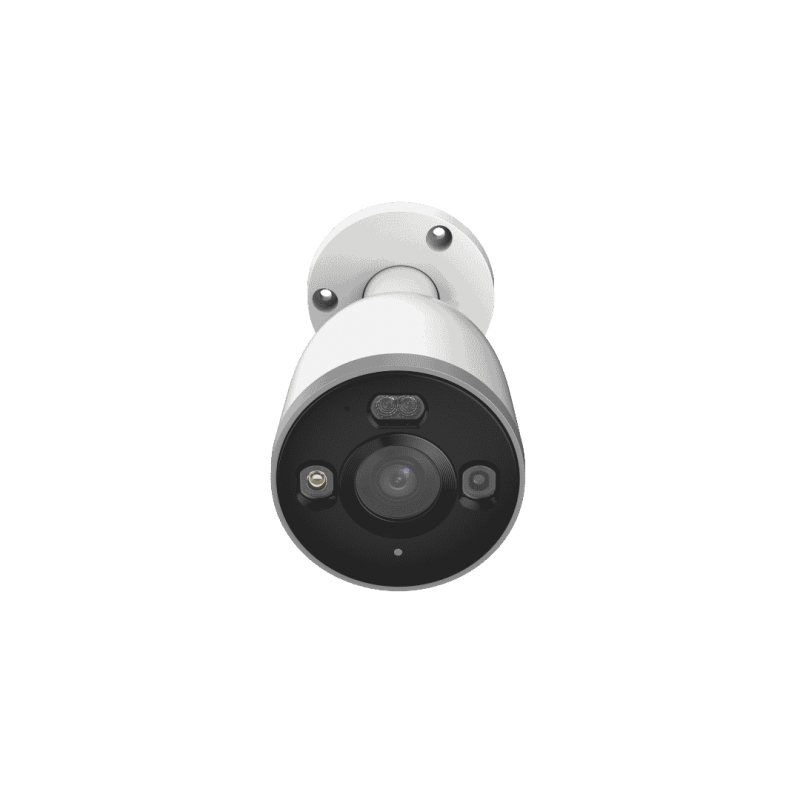

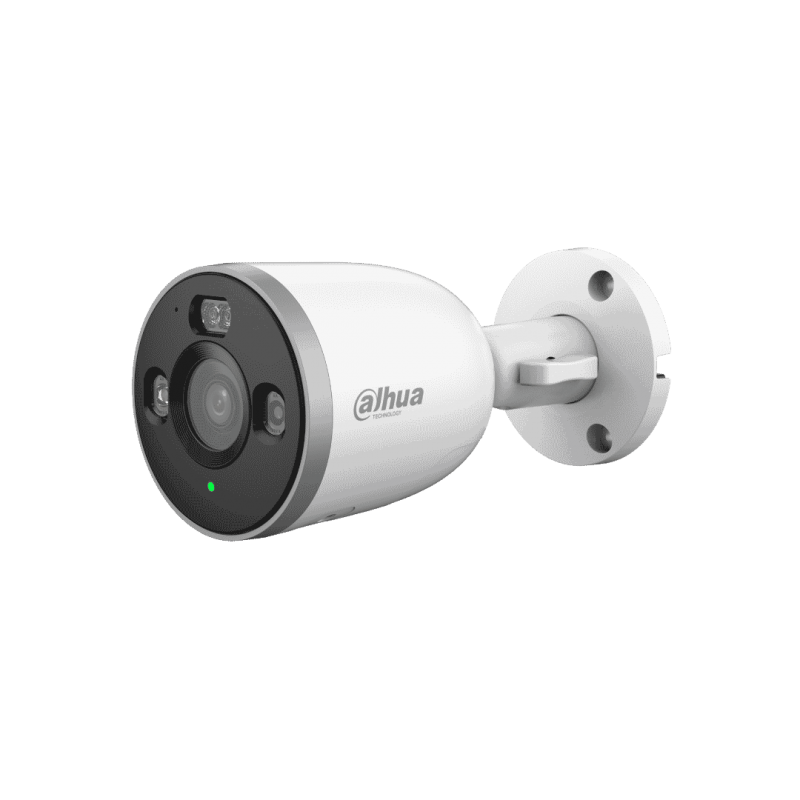

Dahua WiFi camera F5D-PV-0280B, 5Mp, IR30m, LED20m, 2.8mm

Dahua WiFi cameras

Product reference: CAF5D-PV-0280B

5 MP Resolution – Clear images with sharp details.
AI Vehicle Detection – Detects vehicles while reducing false alarms.
Red & Blue Warning Light – Effectively deters potential intruders.
Bluetooth Pairing – Fast and easy device setup.
Sound & Light Alarm – Instant visual and audible deterrence.
Two-way Talk – Communicate anytime, anywhere.
H.265 Compression – Advanced video compression for reduced storage and bandwidth usage.
Wi-Fi 6 – Faster, more stable wireless connection with enhanced interference resistance.
DMSS App – Easy remote monitoring and camera management.
AI Human Detection – Accurately detects people while reducing false alarms.
IP67 Protection

Supports MicroSD Card

At stores prices may vary

Price:

€44.77

€37.00 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

Dahua WiFi camera F5D-PV-0280B, 5Mp, IR30m, LED20m, 2.8mmv

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Min. Illumination

0.007 [email protected] (Color, 30 IRE) 0.0007 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Tilt: 0°–90°
Rotation: 0°–360°

Lens Type

Fixed-focal

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 104°; V: 56°; D: 124°
3.6 mm: H: 89°; V: 48°; D: 104°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.264B; H.264; H.264H; H.265

Video Frame Rate

Main stream: 2880 × 1620@(1-25/30 fps)
sub stream: 640 × 360@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.264: 32 kbps–4096 kbps;
H.265: 32 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm

Wi-Fi Pairing

Bluetooth pairing

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

Storage

Micro SD card (support max. 256 GB)

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

Android;iOS

General

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

Power Supply

12 VDC

Power Consumption

Basic: 2.4 W (12 VDC);
Max.: 7.5 W (12 VDC) (H.265 + warm light intensity + sound and light alarm)

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP67

Camera Button

Reset button

Casing Material

Metal + plastic

Product Dimensions

158.3 mm × Φ76.8 mm (6.23" × Φ3.02")

Net Weight

0.34 kg (0.75 lb)

Features

Lens	2.8
Color	White
Resolution	5MP
IR distance	≤ 30 m
