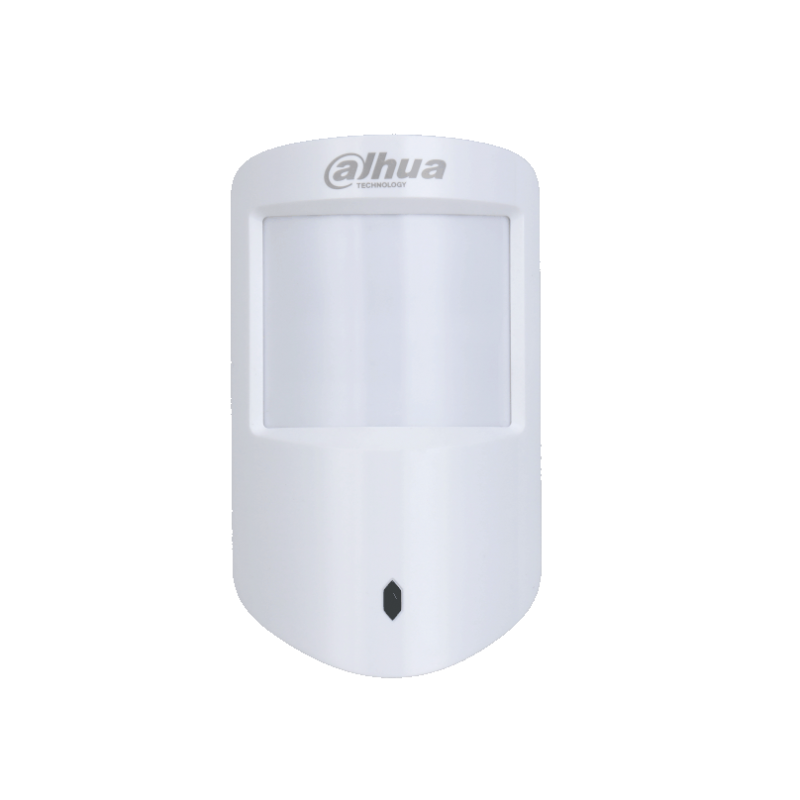

ARD1233-W2(868) Wireless PIR detector 12m/90° 18kg PET

Dahua Wireless Detectors

Product reference: BSARD1233-W2

Pet immunity function.
Auto temperature compensation.
3-level sensitivity adjustment.
Signal strength detection.
Low battery alarm.
Temperature monitoring.
Frequency hopping function and two-way communication technology ensure communication stability.
Cloud update and automatic recovery from update failure.

At stores prices may vary

Price:

€60.11

€49.68 tax excl.

Favourite

We have +10 pcs
Delivery in 1 business days

Product information

ARD1233-W2(868) Wireless PIR detector.

Specifications:

Port

Indicator Light

1 × green alarm indicator

Button

1 × power button

Function

Tamper Alarm

Yes

Remote Upgrade

Cloud update

Signal strength detection

Test Mode

Yes

Low Battery Alarm

Yes

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Transmitter Power(EIRP)

Limit 25mW

Communication Distance

Up to 1,600 m (5,249.34 ft) in an open space

Communication Mechanism

Two-way

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

CR123A battery

Power Consumption

Max. 120 mW

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH).

Dimensions

104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)

Package Dimensions

135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H)

Installation Mode

Wall mount

Net Weight

100 g (0.22 lb)

Gross Weight

170 g (0.37 lb)

Certifications

EN 50131-1:2006+A1:2009+A2:2017+A3:2020

EN 50131-2-2:2017

EN 50131-6:2017

EN 50131-5-3:2017

Security Grade 2

Environmental Class II

Battery Life

4 years

Casing

PC + ABS

Temperature

Measuring Range

–15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)

Measuring Precision

± 1 °C (± 33.8 °F)

Resolution

1 °C (33.8 °F)

Specification

Detection Mode

PIR

Sensor

Dual-element low-noise PIR sensor

Detection Range

12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)

Detection Speed

0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

Pet Immunity Level

≤ 18 kg (39.68 lb)

White Light Resistance Level

2000 lx

Two-way Digital Temperature Compensation

Yes, no attenuation of detection distance in high temperature

Sensitivity

3 levels adjustable

Features

Color	White
Pet imune	Yes
Placement	Suitable indoors
