Wireless smoke detector for quick detection of fire ASD-250, ABAX 2

Detectors

Product reference: BSASD-250

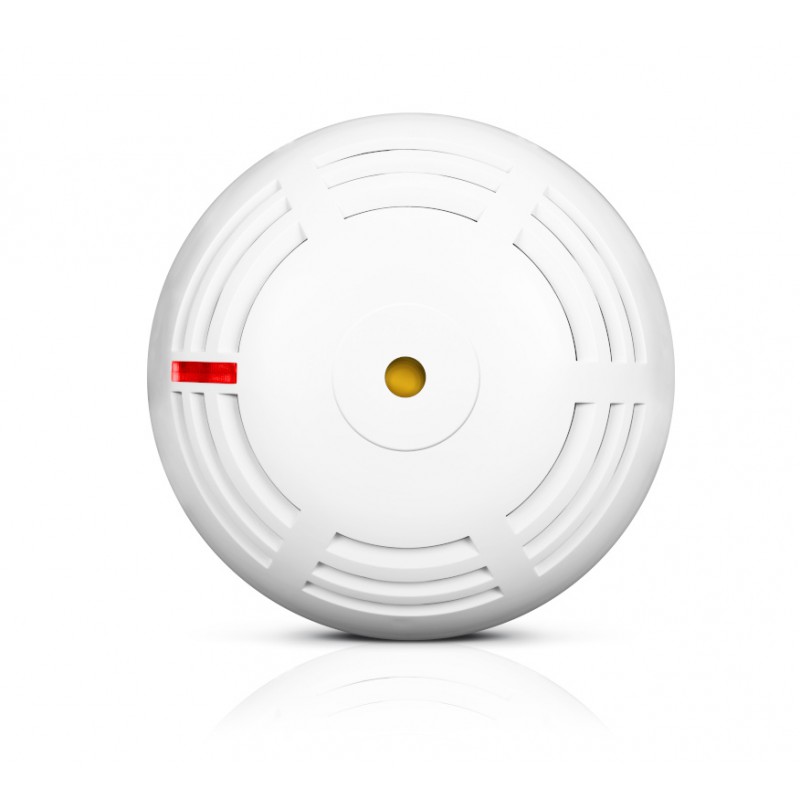

Wireless smoke detector for quick detection of fire.
In addition to transmitting information about danger to the control center, the detector ASD-250 can report about danger with the help of an integrated sound alarm.
The device is equipped with a photoelectric optical smoke sensor.
ASD-250 works with other devices compatible with the ABAX/ABAX2 wireless system.
There is also the option of autonomous work according to the EN 14604 standard.

At stores prices may vary

Price:

€63.39

€52.39 tax excl.

Product information

Operating temperature range

0°C...55°C

Max. current consumption

120 mA

Weight

170 g

Maximum humidity

93±3%

Operating frequency band

868,0 ÷ 868,6 MHz

Battery

CR123A 3V

Dimensions

ø108 x 54 mm

Radio communication range (in open area) for ACU-120

up to 500 m

Radio communication range (in open area) for ACU-270

up to 500 m

Radio communication range (in open area) for ACU-220

up to 2000 m

Radio communication range (in open area) for ACU-280

up to 1200 m

Battery working time (ABAX 2 / ABAX) - in years

up to 2

Battery life (autonomous operation) - in years

up to 4

Standby mode current consumption (ABAX 2 / ABAX)

90 µA

Standby mode current consumption (autonomous operation)

15 µA

Detector type	Smoke
Power	Autonomous
