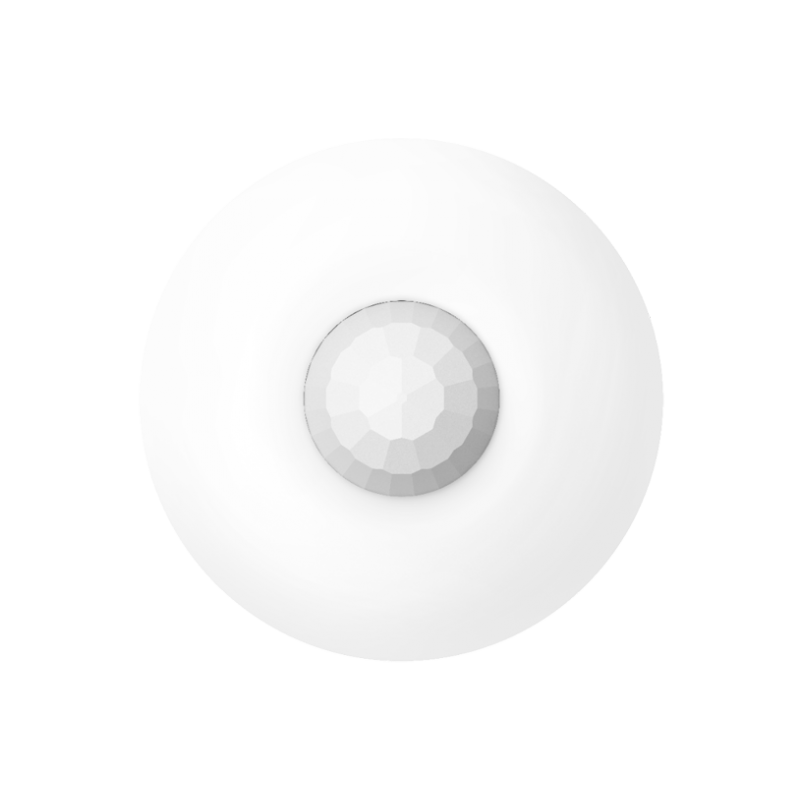

Wired PIR Ceiling Detector Hikvision ALARM DS-PDCL12-EG2

Detectors
Product reference: DAPDCL12EG2
  • Detection range 12m / 360°
  • Digital quad pyro sensor
  • Automatic sensitivity
  • Wide voltage adaptation and on-board EoL resistor
Read more
At stores prices may vary
Price:
€17.66
€14.60 tax excl.
Favourite

Product information

Detection Performance

  • Detection Method: Passive Infrared
  • Detection Range: 12m
  • Detection Angle: 360°
  • Detection Zones: 172
  • Detectable Speed: 0.3～2m/s
  • Sensitivity: Auto;Low
  • White Light Filter: 6500lux
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front; Rear

Interface

  • LED Indicator: Blue (alarm)

Electrical Characteristics

  • Power consumption: 13mA Max

General

  • Operation Temperature: -10°C to 55°C (14°F to 131°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Operation Humidity: 10% to 90%
  • Dimension(WxHxD): φ101.2 mm x 32.9 mm
  • Weight: 79 g
  • Mounting Method: Ceiling
  • Application Scenario: Indoor

Features

Color White
Installation type Ceiling
Pet imune No
