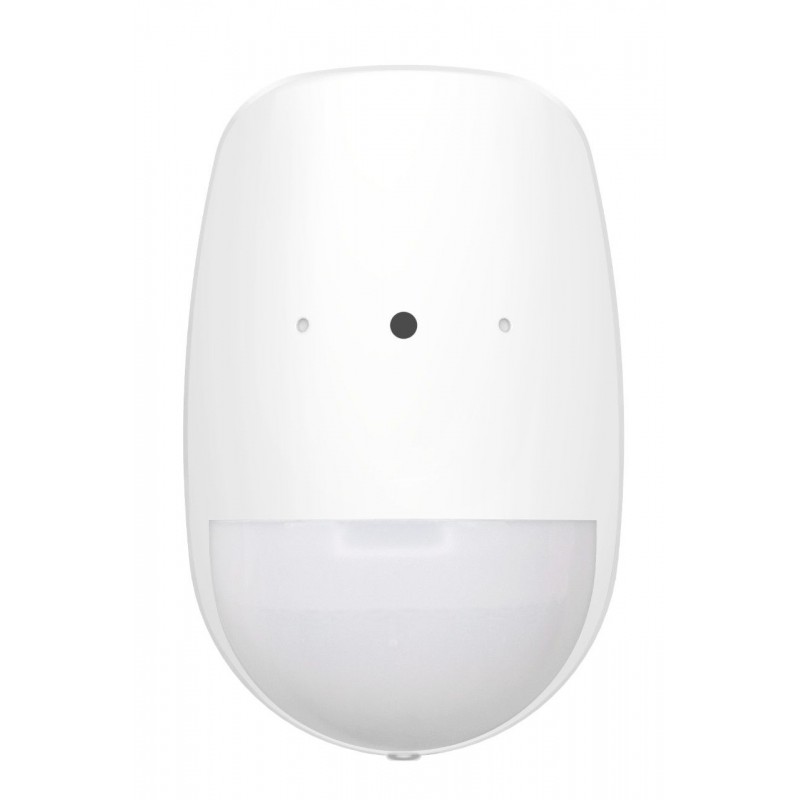

Ellipse PIR Detector + Break Glass Detector DS-PDPG12P-EG2

Detectors

Product reference: DAPDP12PEG2

At stores prices may vary

Price:

€26.88

€22.22 tax excl.

Product information

Specifications:

Detection Performance
Detection Method	Passive Infrared;Acoustic Sensor
Detection Range	12m
Detection Angle	85.9°
Detection Zones	52
Detectable Speed	0.3～2m/s
Pet Immunity	30Kg
PIR Sensitivity	Auto,Pet
White Light Filter	6500lux
Glass Type	Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
Glass Break Range	8m
Glass Thickness	2.4mm to 6.4mm
Glass Break Sensitivity	Potentiometer Adjustment
Digital Temperature Compensation	Support
Glass Size	0.3m x 0.3m to 3m x 3m
Creep Zone Protection	Support
Feature
Digital Processing	Support
Sealed Optics	Support
Tamper Protection	Front
Interface
Alarm Output	Normally Closed
LED Indicator	Green (PIR), Red (BG), Blue (alarm)
Transmission
Transmission Method	Wired
Electrical Characteristics
Power Consumption	36mA Max
Power Supply	9 to 16 VDC
Typical Voltage	12 VDC
General
Operation Temperature	-10 °C to 55 °C
Storage Temperature	-20 °C to 60 °C
Operation Humidity	10% to 90%
Dimension(WxHxD)	65.5mm×103mm×48.5mm
Weight	98.5g
Mounting Height	1.8 to 2.4m
Mounting Method	Wall
Application Scenario	Indoor
