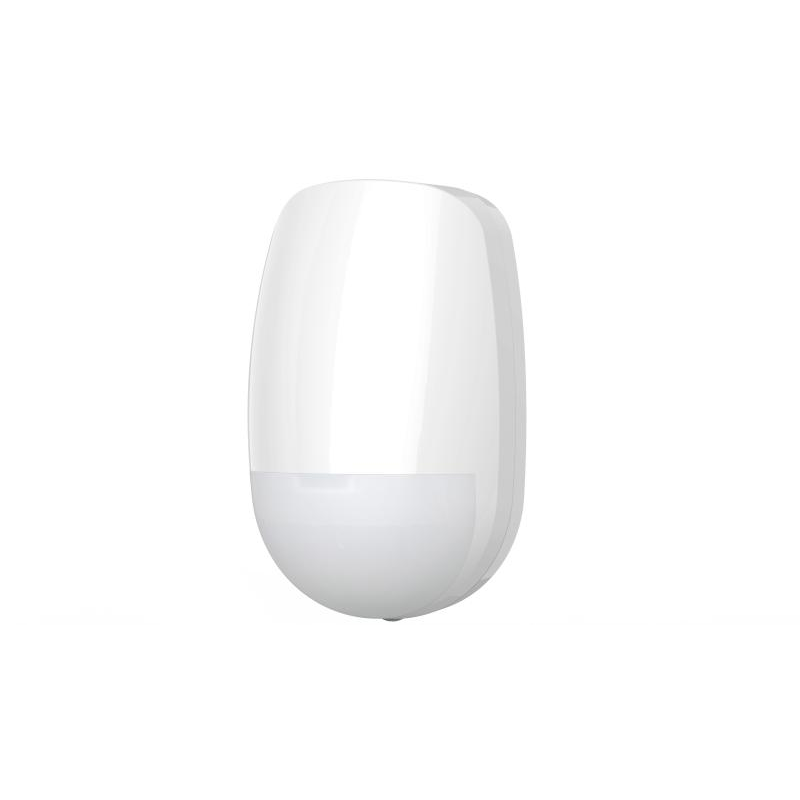

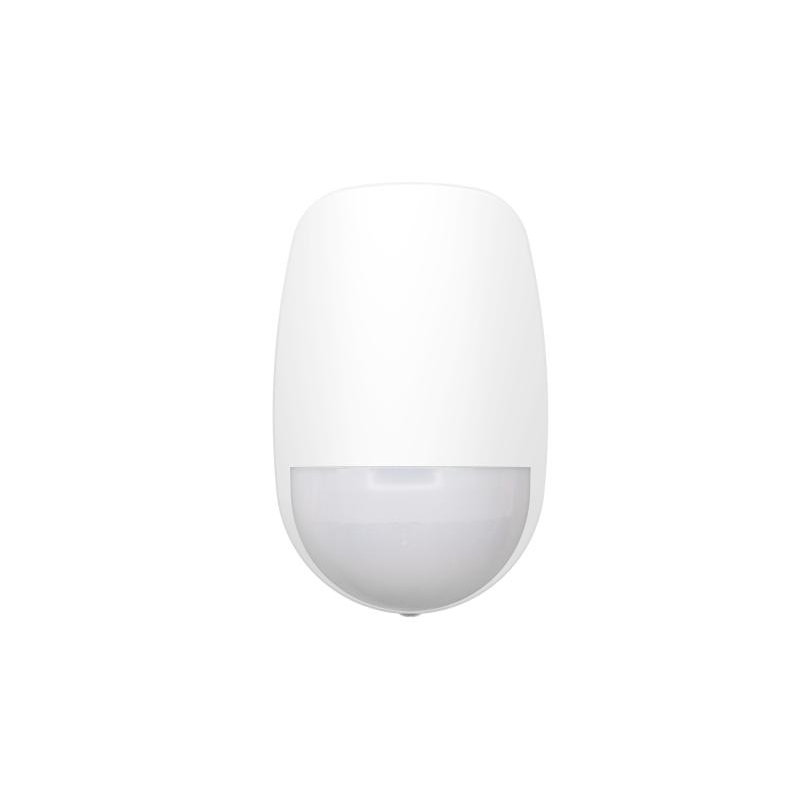

Wired Dual-Tech AM Detector Ellipse DS-PDD15AM-EG2 AM

Dual Tech Detectors

Product reference: DAPDD15AM

Detection Range: 15m / 85.9°
Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario
Automatic sensitivity and 24Ghz smart microwave
Digital temperature compensation and IFT technology

At stores prices may vary

Price:

€28.79

€23.79 tax excl.

Product information

Specifications:

Detection Performance
Detection Method	Passive Infrared;Microwave
Detection Range	15m
Detection Angle	85.9°
Detection Zones	52
Detectable Speed	0.3～2m/s
Sensitivity	Auto;Low
White Light Filter	6500lux
Microwave Frequency	24GHz(24.15～24.25GHz)
Digital Temperature Compensation	Support
Creep Zone Protection	Support
Feature
Digital Processing	Support
Sealed Optics	Support
Tamper Protection	Front
Anti-masking	Support
Anti-cloaking	Support
Anti-blocking	Support
Interface
Alarm Output	Normally Closed
LED Indicator	Green(PIR), Red(Microwave), Blue(Alarm)
Transmission
Transmission Method	Wired
Electrical Characteristics
Power Supply	9 to 16 VDC
Typical Voltage	12 VDC
Power Consumption	Maximum current：25mA@12VDC Quiescent current： 17mA@12VDC
General
Operation Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity	10% to 90%
Dimension(WxHxD)	65.7 mm × 103.8 mm × 45.5 mm
Weight	100g
Mounting Height	1.8 m to 2.4 m
Mounting Method	Wall
Application Scenario	Indoor
Bracket	Optional wall & ceiling accessory
