Pitbull Alarm PRO 3G

Eldes GSM System

Product reference: DAPITBULLPRO

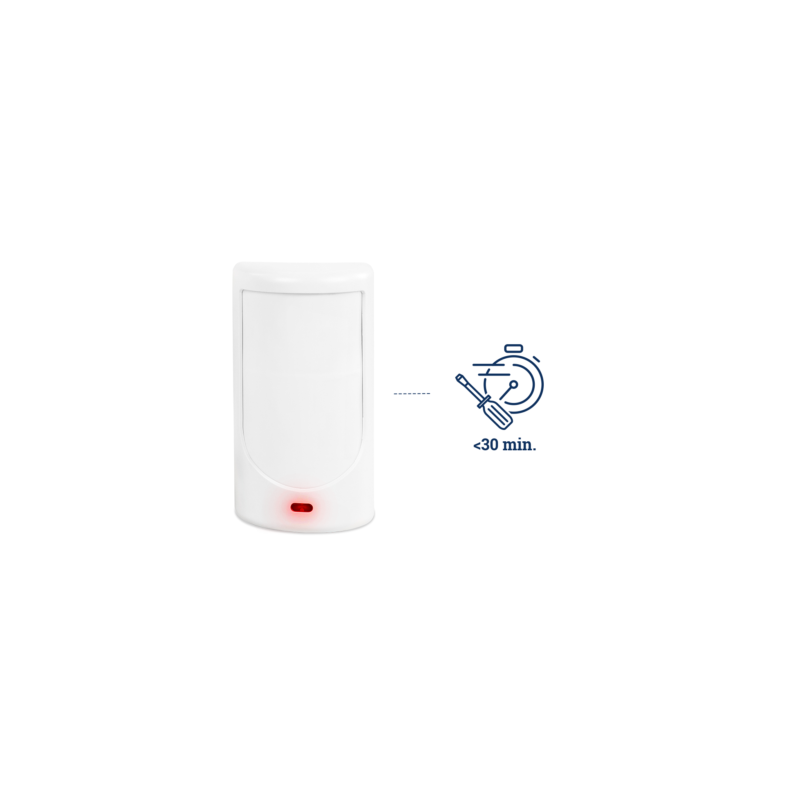

A unique security solution in a body of a motion sensor. Works as a stand-alone device or as an intrusion alarm panel with up to 16 wireless devices. Pitbull Alarm PRO offers quick installation and configuration. In addition, it supports any model of IP cameras, giving possibility to have video & security in a single ELDES Security App!

At stores prices may vary

Price:

€174.95

€144.59 tax excl.

Favourite

Product information

Pitbull Alarm PRO is very easy to install – it does not require any wiring. Intuitive ELDES Utility makes the configuration even faster allowing to add wireless accessories in a single click. The whole system can be fully installed in less than 30 minutes!

Supply voltage	11-15V 500mA max
Current used in idle state	up to 50mA
Back-up battery voltage, capacity	8.4V; 350mAh
Back-up battery type	Ni-Mh
SIM card type	Nano SIM (1 slot)
GSM modem frequency	850/900/1800/1900/2100MHz
Dimensions	124x67x58mm
Operating temperature range	-10…+40 °C
Humidity	0-90% RH @ 0… +40°C (0-90% RH @ +32… +104°F)
Back-up battery operating time	up to 24 hours*
Detection angle	90°
Maximum motion detection range	10m (32.81ft)
Wireless band	ISM868 for Region1 and ISM915 for Region2
Wireless communication range	up to 3000m (9842.5ft) in open areas
Maximum number of wireless devices	16
Communications	SMS, GPRS Network, CSD
Supported protocols	EGR100, Kronos, Cortex SMS, SIA IP
BELL+: siren output commuted values	Current - 150mA max.; voltage - 15V (PITBULL ALARM PRO on
	external power supply) / 7V (PITBULL ALARM PRO on back-up battery)
* - with ELDES Cloud Services disabled; with wireless transmitter-receiver module disabled
