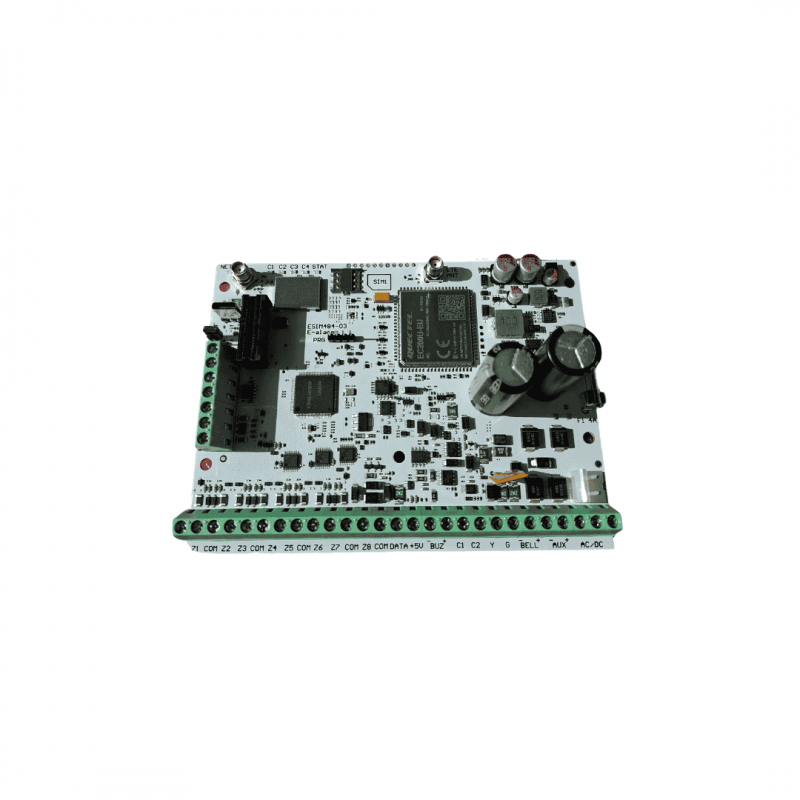

GSM Control Panel ESIM484 Eldes

Eldes GSM System

Product reference: CEESIM484

ESIM484 is a hybrid ELDES home security system designed for professional protection of large apartments, townhouses, or private houses (up to 300 m²).
ESIM484 is not only a home security system but also an all-in-one home automation device.

With the ELDES Security smart app, you can conveniently control the system, view HD-quality live video from your home, manage electrical devices, and receive informational notifications related to home security.

At stores prices may vary

Price:

€201.94

€166.89 tax excl.

Favourite

We have 5 qty.
Delivery in 1-2 business days

Product information

GSM Control Panel ESIM484 Eldes

Simple and Fast Installation

The ESIM484 hybrid security system is extremely easy to install. The system features integrated GSM/GPRS and wireless modules, PGM and wired outputs, eliminating the need for additional external modules and extra costs. With the intuitive and free ELDES Utility software, system installation is fast and smooth.

ESIM484 can be expanded with additional PGM outputs, wired connections, and temperature sensors. Discover extensive installation possibilities with ELDES ESIM484.

Exclusive Wireless Technology

An exclusive and innovative wireless communication technology allows operation at distances of up to 3 kilometers in open areas. Thick interior walls or multi-storey buildings are not an obstacle for ELDES system installers.

Smart Home with ESIM484

Home automation and security – all in one.
The ESIM484 security system allows you to create up to 32 unique home automation scenarios and includes 4 PGM outputs, expandable up to 72.

Using the system, you can remotely control garage doors, various electrical appliances, lighting, home heating, lawn irrigation, and more.

Easy Connection to a Security Company

ESIM484 can be easily connected to most security companies using the free ELDES EGR100 software. The system supports 4 of the most popular protocols: SIA IP, Kronos, EGR100, and Contact ID.

In the event of an alarm, the security company is immediately notified and dispatches a response team to the protected premises.

Convenient Security System Control

The ELDES security system can be controlled in several ways. Simply choose the one you prefer:

ELDES Security mobile app
Wired or wireless keypad
Remote control
SMS message / phone call
Automatic arming and disarming

Video Surveillance Capability

Expand your security system by connecting any RTSP IP camera to the ELDES Security mobile app. There are no restrictions on camera models—choose whatever suits you best.

You can add as many cameras as you need, whether you want to protect a small apartment, a house, or commercial premises.

Technical Specifications

Parameter	Specification
Main power supply	16–24V 50/60 Hz ~3A max / 18–24V 3A max
Recommended backup battery capacity	12V; 1.3–7Ah
Backup battery charging time	Up to 30 hours for a 7Ah battery
GSM modem frequency	850/900/1800/1900 LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 GSM: B2/3/5/8
SIM card type	Nano-SIM
Number of wired PGM outputs	4
Number of wired zones on panel	10 (ATZ mode: 20)
Number of zones using 2×EPGM1	16 + 16
Number of PGM outputs using 2×EPGM1	2 + 2
Maximum supported wireless zones	124
Maximum supported wireless devices	64
Total maximum supported zones	144
Supported third-party smoke detectors	2-wire, 4-wire
Supported number of 2-wire smoke detectors	Up to 8
Maximum number of temperature sensors	8
Wireless frequency	ISM868
Wireless communication range	Up to 3000 m (open area)
Communication	SMS, LTE, Ethernet via ELAN3 – Alarm
Supported communication protocols	Ademco Contact ID, EGR100, Kronos, SIA IP
Dimensions	140 × 100 × 18 mm
Operating temperature range	-20…+55°C
Humidity	0–90% RH @ 0…+40°C (0–90% RH @ +32…+104°F)
