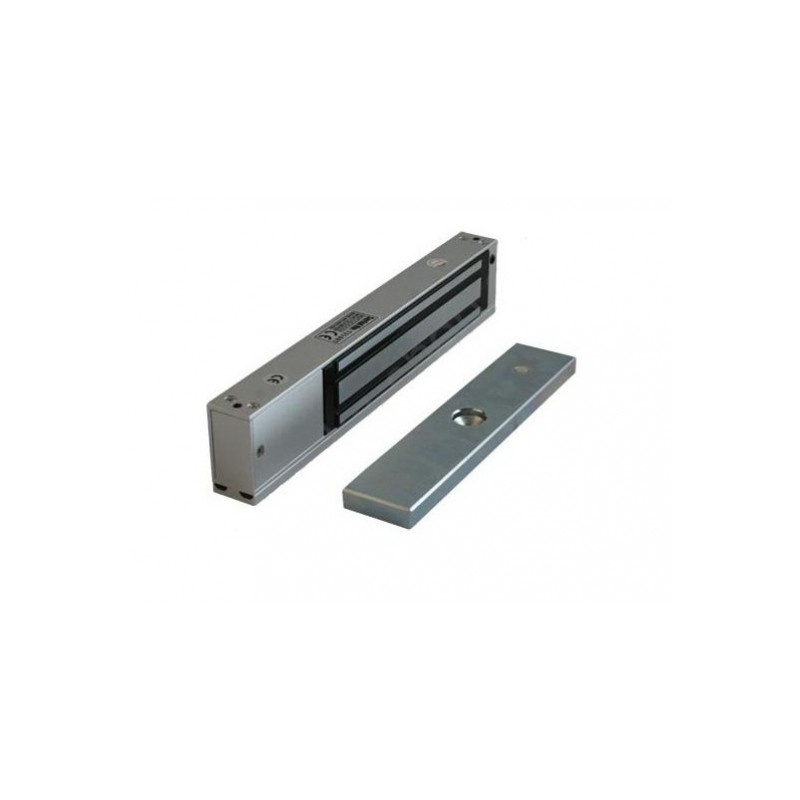

Electromagnet for doors YM-280

Product reference: ES280C
  • electromagnet;
  • maintained in force until termination of 280 Kg.
Read more
At stores prices may vary
Price:
€30.25
€25.00 tax excl.

Product information

Lock Dimension

250Lx48.5Wx25H(mm)

Armature Plate Dimension

180Lx38Wx11H(mm)

Holding Force

280kg(600Lbs)

Input Voltage

12/24VDC+10%

Current

12V/500mA 24V/250mA

Suitable

Wooden door, Glass door, Metal door, Fireproof door

Surface Temp

≤+20℃

Operating Temp

-10~+55℃(14-131F)

Humidity

0~90%(non-condensing)

Cover Finish

Anodized aluminum

Lock Finish

Zinc

Armature Plate Finish

Zinc

Weight

2KG
